Introduction

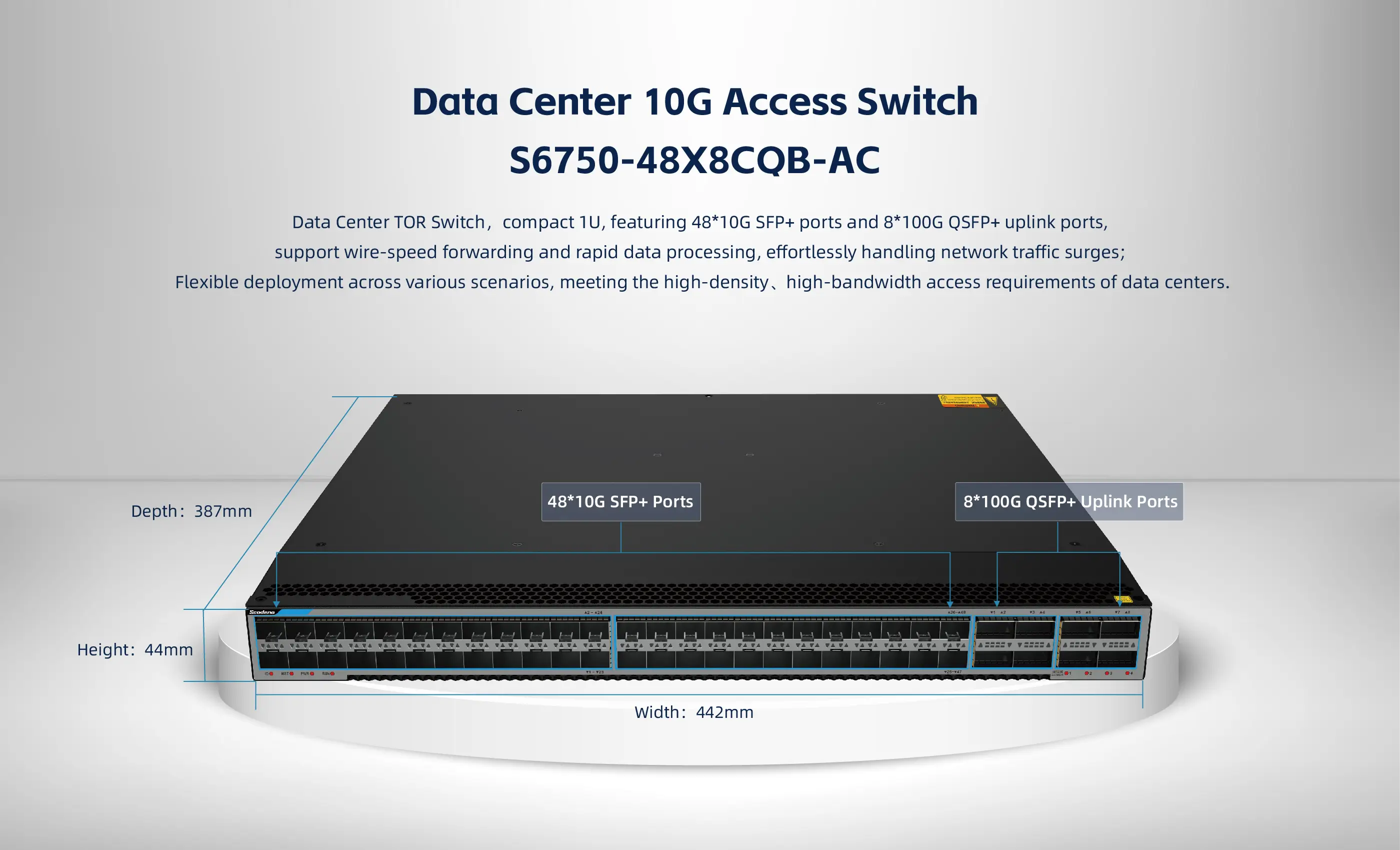

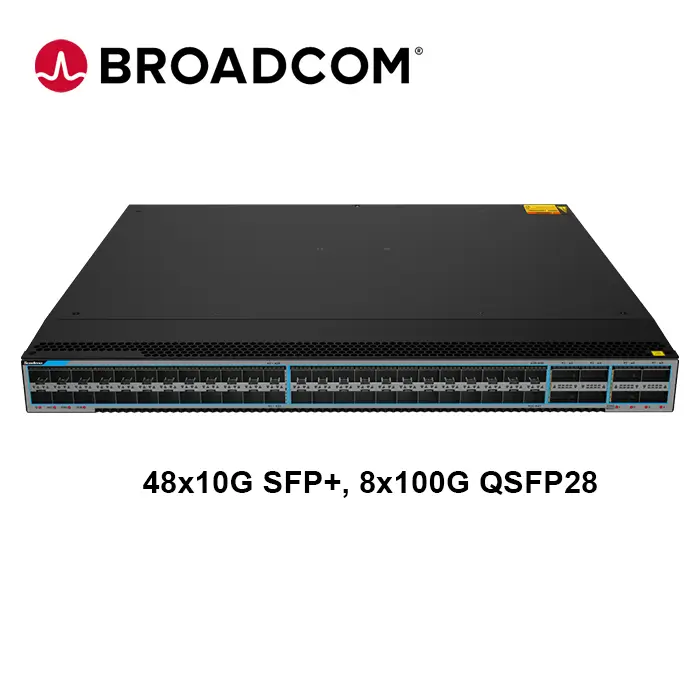

The BISMON S6750 Series is a high-performance Layer 3 managed Ethernet switch designed for enterprise, campus, and data center networks requiring exceptional performance, reliability, and scalability. With a switching capacity of up to 2.56 Tbps, it delivers wire-speed Layer 2, Layer 3, and Layer 4 forwarding for high-density and bandwidth-intensive applications. The switch integrates advanced IPv4/IPv6 routing, multicast services, QoS, and comprehensive security features to optimize network efficiency. Enhanced reliability technologies, including STP/RSTP/MSTP, R-Link fast protection switching, and Loopback Detection (LB), ensure stable and uninterrupted network operation. The S6750 also supports 1+1 hot-swappable redundant AC/DC power supplies, intelligent fan control, and hardware fault monitoring to maximize system availability. Its powerful multicast capabilities, high-performance architecture, and carrier-class reliability make it an ideal solution for modern enterprise backbone, cloud computing, IPTV, and mission-critical networking environments.

high reliability

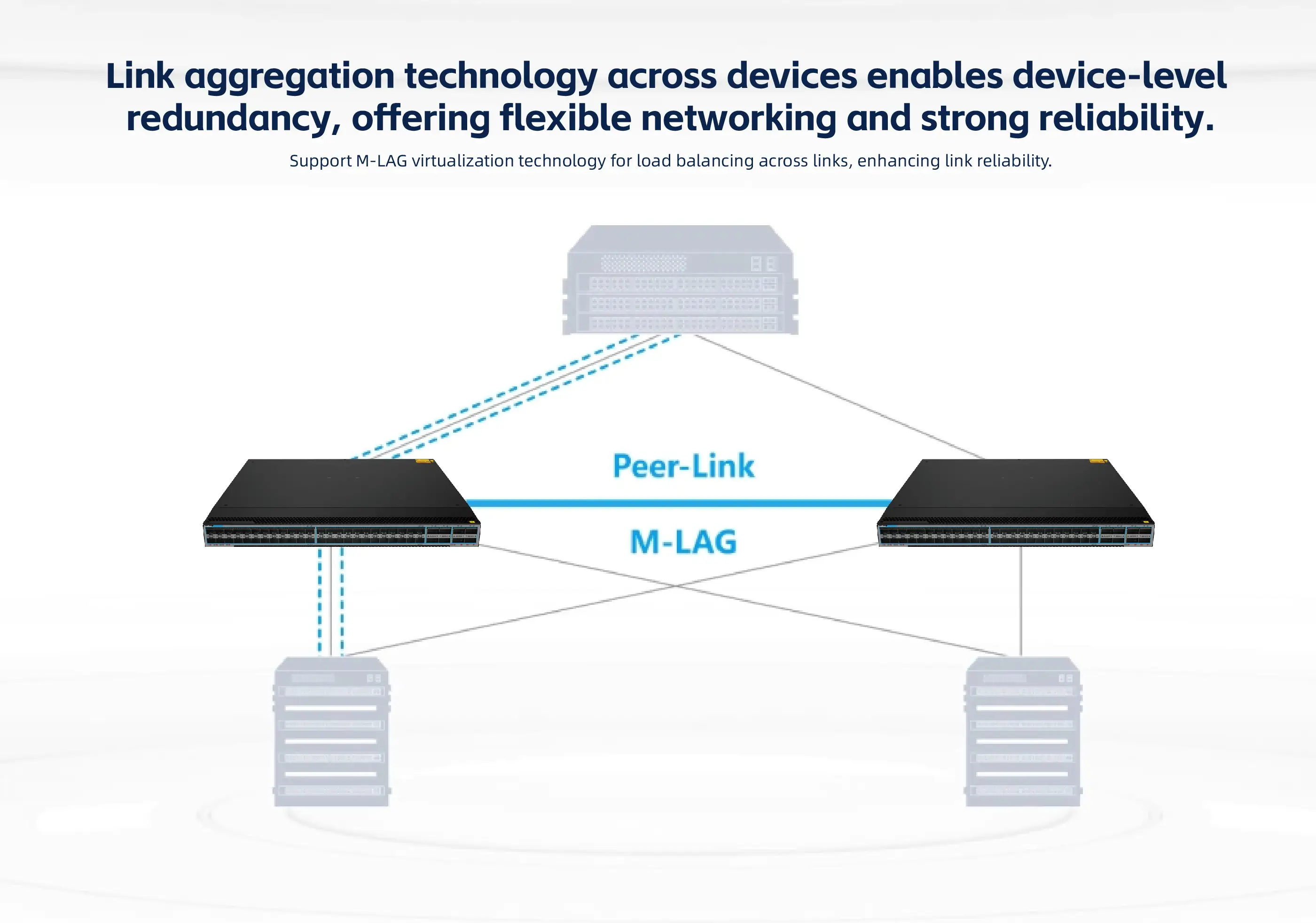

1. S6750 provides enhanced Ethernet reliability technologies such as STP/RSTP/MSTP, R-link millisecond level protection switching, LB (loopback detection), etc., ensuring link level reliability.

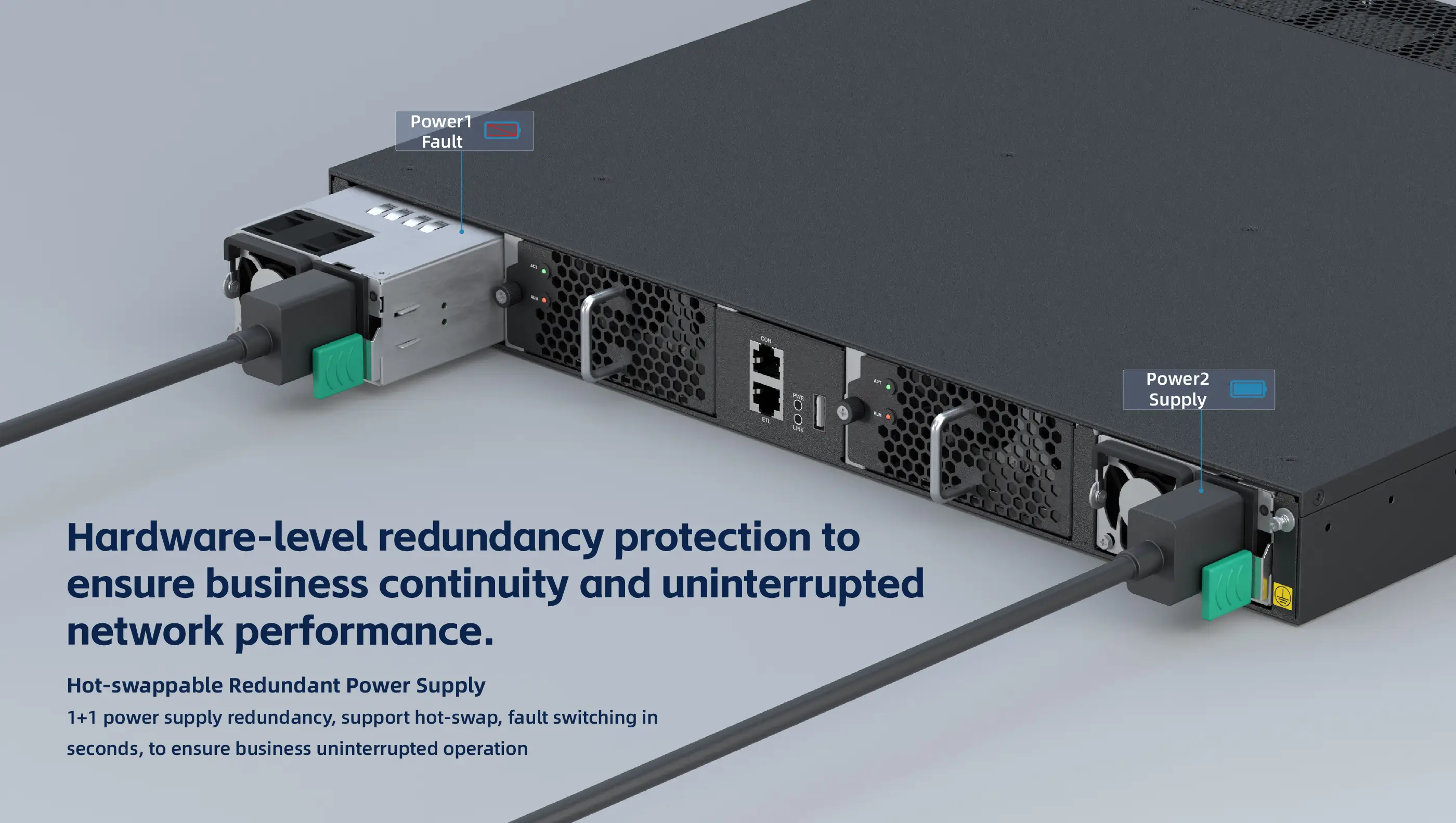

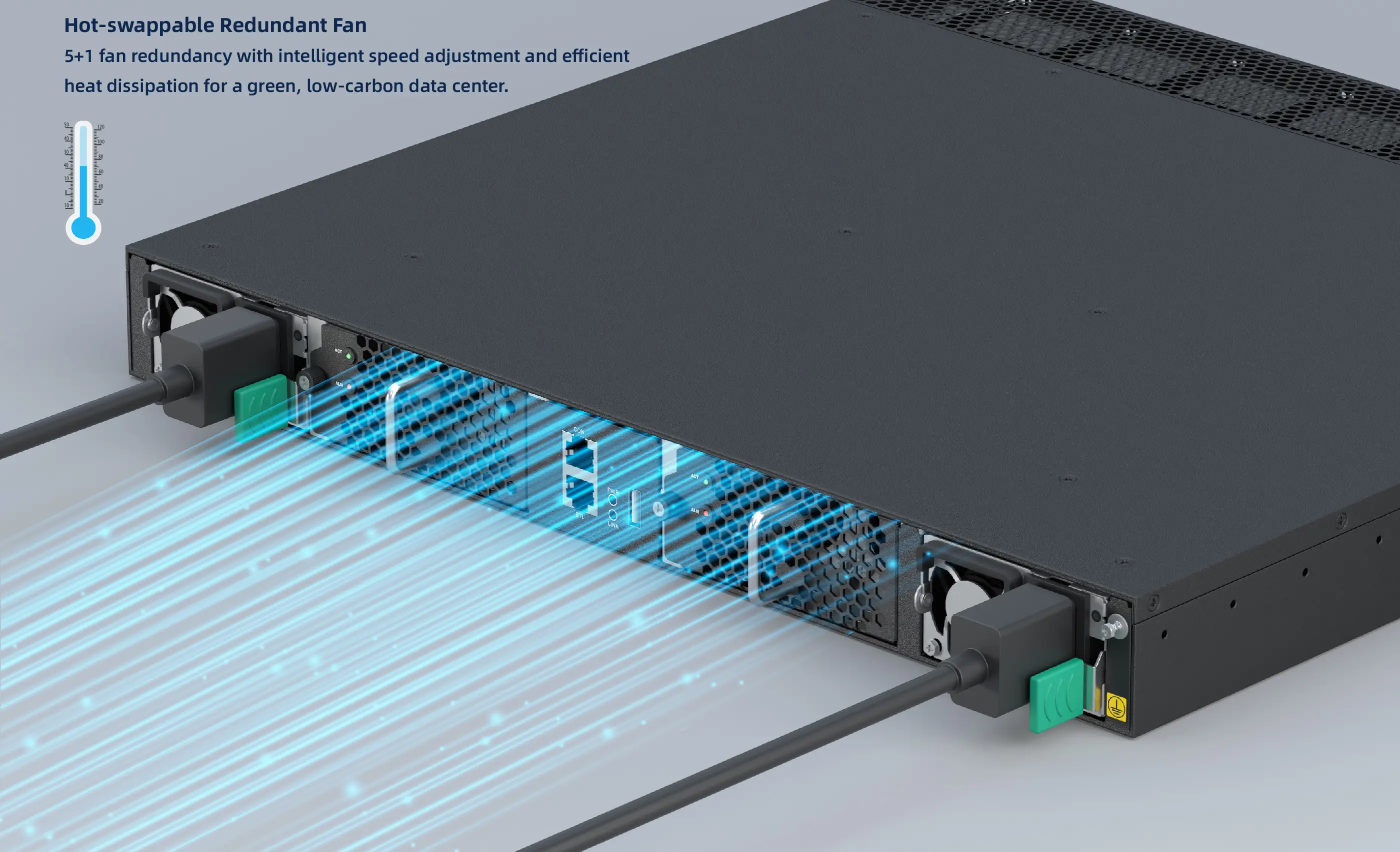

2. Supports 1+1 redundant heat swapping power supply, and supports simultaneous power supply from both AC and DC power sources. In addition, the switch supports fault detection and alarm for power modules and fans, and the fan speed can be automatically adjusted according to temperature changes

Powerful service support

3. S6750 supports IGMP snooping, IGMP proxy, IGMP filter, and IGMP fast leaf for implementing robust multicast. It provides line speed replication of multicast messages between VLANs and multicast load sharing between trunk member interfaces to meet the needs of IPTV and other multicast services.

High exchange capacity

4. The 2.56Tbps capacity provides uninterrupted forwarding for all ports, ensuring the construction of a reliable and sustainable high-speed IP network to meet high-density, high bandwidth access and aggregation application scenarios such as data centers and campus networks

Excellent service quality

5. Support rich flow classification standards based on MAC/IP addresses, layer 4 TCP/UDP port numbers, protocols, ports, VLANs, and more.
