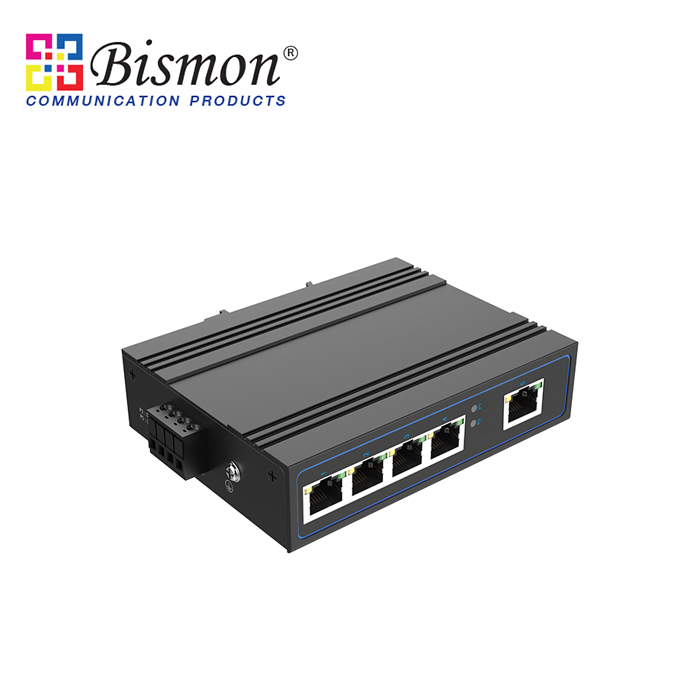

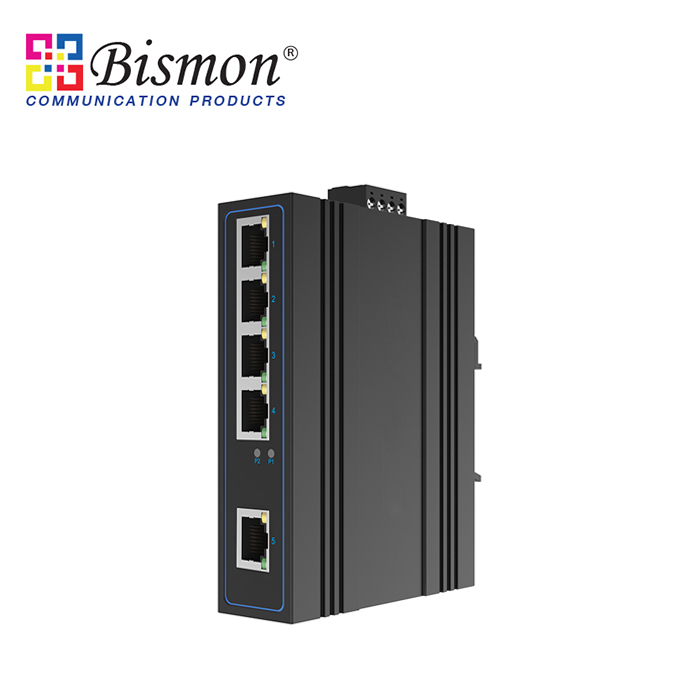

Provider Mode Ports

Fixed port

5*10/100 Base-TX

Power interface

Phoenix terminal, dual power redundancy

LED Indicators

P1/P2,OPT

Dialing instructions

1 LFP

LFP

2 LGY

reserve

3 VLAN

Port isolation function

4 BSR

Storm suppression function

Cable type&Transmission distance

Twisted-pair

0-100m( CAT5e,CAT6)

Network Topology

Ring topology

Not Supported

Star topology

support

Bus topology

support

Tree Topology

support

Electrical Specifications

input voltage

DC12-58V ; PoE DC 48-58V

Total Power consumption

PoE<5W ;PoE<125W

PoE Support

PoE port

1-4

PoE Protocol

802.3af ,802.3at

Pin Assignment

1,2,3,6

Layer 2 Switching

Switching capacity

1G

Packet forwarding rate

0.744 Mpps

MAC address table

2K

Buffer

768K

Forwarding delay

<5us

MDI/MDIX

support

Jumbo Frame

support2K bytes

BSR

support

LFP

support

Port-Isolation

support

Mechanical Dimensions

Product size

31*91*118mm

Installation Method

Card rail installation

Weight

About 0.36KG

Environment

Operating temperature

-40°C ~ +75°C

Storage temperature

-40°C ~ +75°C

Relative humidity

10%~90% Does not support condensation(non-condensing)

Thermal methods

Fanless design, natural heat dissipation

MTBF

100,000

EMC&INGRESS PROTECTION

IP Level

IP40

Surge protection of Power

IEC 61000-4-5

Level 3 (4KV/2KV)

(8/20us)

Surge protection of Ethernet port

IEC 61000-4-5

Level 3 (4KV/2KV)

(10/700us)

ESD

IEC 61000-4-2

Level 4? 8K/15K)

Authentication

Authentication

Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology, CE/FCC/RoHS
