Overview

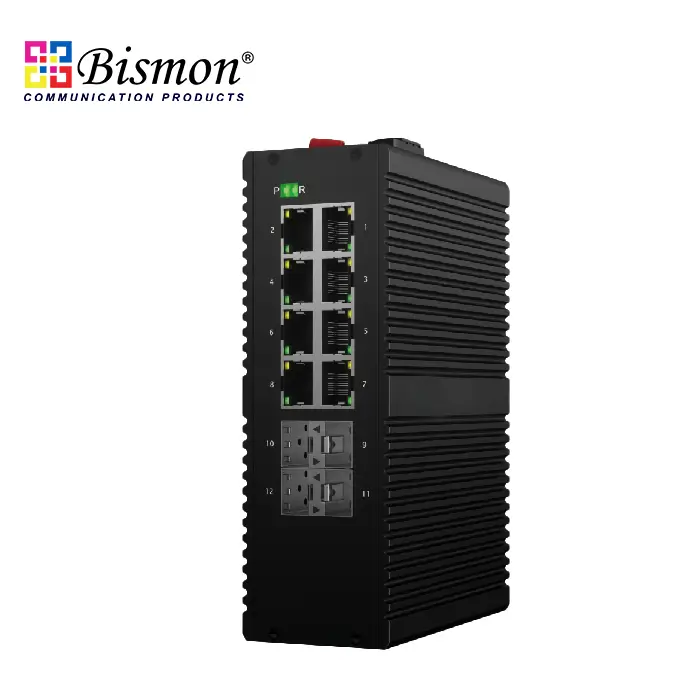

Industrial grade Switch 8 port Gigabit(10/100/1000Mbps) 802.3af/at, Poe/PoE+ for 1-8 Ports uplink 4xSFP slot fiber optic port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40-120km. รองรับ Input Voltage: DC-12-58V, สามารถทำางานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Antistatic ได้ที่ 8KV-15KV, รองรับการทำางานแบบ Layer 3 switching, support DIN-Rail, Standard complies CCC, RoHs, FCC, CE, ISO, รองรับ Managed DDOS,ACL,QoS,STP/RSTP/MSTP,ERPS Ring,Dynamic routing รองรับ Dual Powe Redundancy
Input voltage: DC 12-58V
Working temperature: -40 °C~+70 °C
Shell: IP40 protection level, fanless design
Inspection report: CE/FCC/RoHS
Anti static: 8KV-15KV
M T B F : 100000 hours
|
Fixed port
|
4x 1000 Base-X
8x 10/100/1000Base-T
|
|
Power interface
|
Phoenix terminal, redundant dual power supply
|
|
LED Indicators
|
PWR?OPT ,NMC?ALM
|
|
DIP Switch
|
|
|
1 C/D
|
Remote PD Reset
|
|
2 LGY
|
Stand/Non-standard PoE Mode
|
|
3 VLAN
|
Port Isolation
|
|
4 RST
|
Reset
|
|
Electrical Specifications
|
|
|
Input voltage
|
DC12-58V (Non-PoE)
DC48~58V (PoE)
|
|
Total Power consumption
|
<10W(Non-PoE)
<240W(PoE)
|
|
Voltage Alarm
|
Support
|
|
PoE Support
|
|
|
PoE port
|
1~8
|
|
PoE Protocol
|
802.3af, 802.3at
|
|
Pin Assignment
|
1,2,3,6
|
|
PoE Mode
|
Standard & non-standard are supported
|
|
Layer 2 Switching
|
|
|
Switching capacity
|
36G
|
|
Packet forwarding rate
|
26.78Mpps
|
|
MAC address table
|
16K
|
|
VLAN
|
Support 4K
|
|
Buffer
|
12M
|
|
Forwarding delay
|
<10us
|
|
MDX/MIDX
|
Support
|
|
Flow control
|
Support
|
|
Jumbo Frame
|
Support 10K Bytes
|
|
WatchDog
|
Support
|
|
Port Isolation
|
Support
|
|
Environment
|
|
|
Operating temperature
|
-40°C~+75°C
The device is tested for 4 hours at temperatures in 85?
|
|
Storage temperature
|
-40°C~+85°C
|
|
Relative humidity
|
5%~95% non-condensing
|
|
Thermal methods
|
Fanless, natural cooling
|
|
MTBF
|
100,000 hours
|
|
Mechanical Dimensions
|
|
|
Product size
|
143 x 104 x 48 mm
|
|
Installation Method
|
DIN rail
|
|
Weight
|
0.6KG around
|
|
EMC & Ingress Protection
|
|
|
IP Level
|
IP40
|
|
Surge protection of Power
|
IEC 61000-4-5 Level X? 6KV/6KV?? 8/20us?
|
|
Surge protection of Ethernet port
|
IEC 61000-4-5 Level X? 4KV/4KV?? 10/700us?
|
|
RS
|
IEC 61000-4-3 Level 3? 10V/m?
|
|
EFI
|
IEC 61000-4-4 Level 3? 1V/2V?
|
|
CS
|
IEC 61000-4-6 Level 3? 10V/m?
|
|
PFMF
|
IEC 61000-4-8 Level 4? 30A/m?
|
|
DIP
|
IEC 61000-4-11 Level 3 ? 10V?
|
|
ESD
|
IEC 61000-4-2 Level 4? 8K/15K?
|
|
Free fall
|
0.5m
|
|
Authentication
|
|
|
Authentication
|
CCC, CE, FCC, RoHS
|
