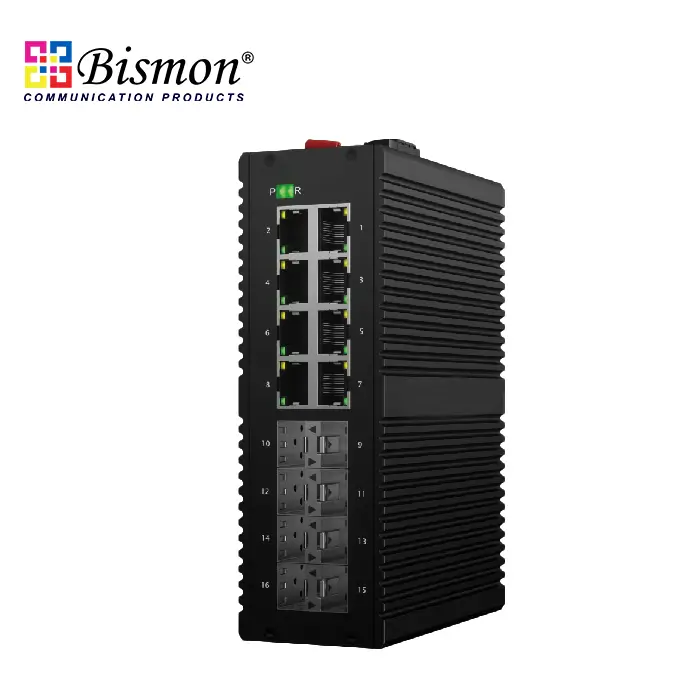

Provider Mode Ports

Fixed port

8*1000Base-X*8*10/100/1000 Base -T

Management Port

Support console

Power interface

Phoenix terminal, dual power redundancy

LED Indicators

PWR ,  SYS ,   Link/ACT LED

Cable type&Transmission distance

Twisted-pair

0-100m  (CAT5e,CAT6)

Monomode optical fiber

20/40/60/80/100KM

Multimode optical fibre

550m

Network Topology

Ring topology

Support

Star topology

Support

Bus topology

Support

Tree Topology

Support

Hybrid topology?

Support

Electrical Specifications

input voltage

No PoE : DC12-58V
PoE : DC48-58V

Total Power consumption

No PoE<10W
PoE<250W

PoE Support  Optional selection

PoE port

1-8

PoE Protocol

802.3af  , 802.3at

Pin Assignment

1,2,3,6

PoE Management

Support

Layer 2 Switching

Switching capacity

128G

Packet forwarding rate

95.23Mpps

MAC address table

16K

Buffer

12M bit

Forwarding delay

<10us

MDX/MID

Support

VLAN

4K

GVRP

Support

Protocol VLAN

Support

Voice VLAN

Support

Surveillance VLAN

Support

MAC VLAN

Support

Etherchannle/ 802 .3ad

Support

LACP

Support

Interface Speed

Support

Duplex Mode

Support

Flow Control

Support

Jumbo frame

Support

DHCP Server

Support

DHCP Client

Support

DNS Client

Support

SNTP Client

Support

Port Statistics

Support

Protected Ports

Support

EEE

Support

 Ethernet Ring Protection Switching

Support

LLDP

Support

LLDP 802.1 TLV

Support

MSTP / RSTP / STP

Support

STP BPDU Filter

Support

STP BPDU guard

Support

STP Port Fast

Support

IGMP Snooping

Support

MLD Snooping

Support

MVR

Support

DHCP interface prioritizes IP binding

Support

Device scanning

Support

Layer 3 Route

IPV4 Manage address

Support

IPV6 Manage address

Support

IPV4 Dynamic routing

OSPF ,RIP

Static Routes IPv6

Support

ARP

Support

Loopback Interface

Support

Convergence

ACL

Support MAC standard/extended ACL

Support IPv4 standard/extended ACL

Support IPv6 standard/extended ACL

QOS

Support QoS re tagging

Support port trust

Support port speed limit

Support export queue speed limit

Support SP and WRR scheduling algorithms

Support COS mapping, DSCP mapping, IP priority mapping
