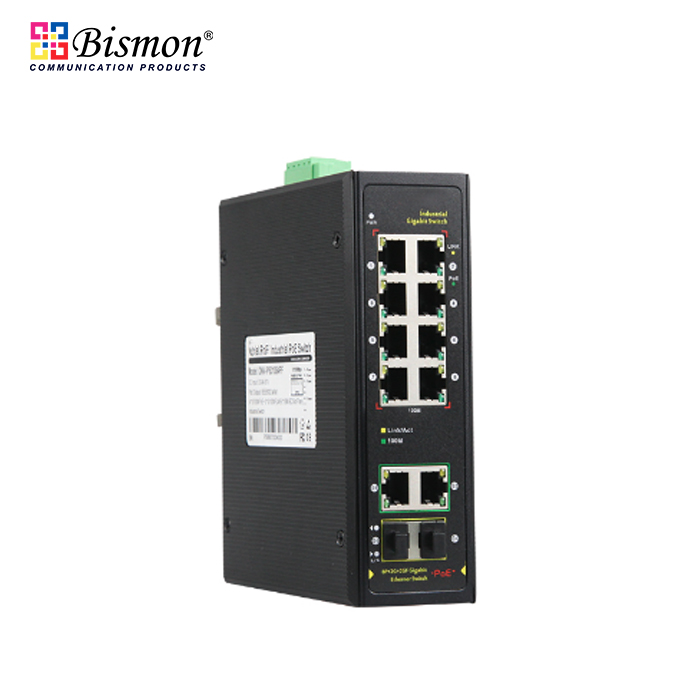

8Port 10/100M PoE with 2SFP+2RJ45 10/100/1000M un-managed Industrial Switch
OVERVIEW
The B1-IPS31128PFB is a Gigabit uplink industrial PoE fiber switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy, and industrial scenes such as construction set up a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100M access, gigabit TP&SFP port uplink
? Support non-blocking wire-speed forwarding.
? Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
? Support 10/100M RJ45 port and gigabit TP&SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Intelligent PoE power supply
? IEEE802.3af/at PoE standard, without damaging non-PoE devices.
? 8*10/100Base-TX RJ45 ports support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.
? Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
? CCC, CE, FCC, RoHS.
? Low power consumption, No fan, aluminum shell.
? The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS31128PFB
|
|
Interface Characteristics
|
|
Fixed Port
|
2*1000Base-X SFP slot ports(Data)
2*10/100/1000Base-T RJ45 ports (Data)
8*10/100Base-TX PoE ports (Data/Power)
2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
|
|
Ethernet Port
|
Port 1-8 support 10/100Base-TX and port 9-10 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
|
SFP Slot Port
|
Gigabit SFP optical fiber interface, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm /0-500m, Single-mode: 1310nm /0-40km,1550nm /0-120km
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
|
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
Switching Capacity
|
12Gbps
|
|
Forwarding Rate@64byte
|
7.14Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR (Green), Network: Link, link/Act (Yellow), PoE: PoE (Green), Rate: 1000M (Green)
|
|
PoE & Power Supply
|
|
PoE Port
|
Port 1-8
|
|
Power Supply Pin
|
Default 1/2 (+) 3/6 (-)
|
|
Max Power Per Port
|
30W, IEEE802.3af/at
|
|
Power Consumption
|
Standby<8W, Full load: af<120W, af<240W
|
|
Working Voltage
|
DC48-57V, 5 Pin industrial Phoenix terminal, support anti-reverse protection
|
|
Power Supply
|
No, optional 48V/120W industrial power supply
|
|
Physical Parameter
|
|
Operation TEMP / Humidity
|
-40~+80°C, 5%~90% RH Non condensing
|
|
Storage TEMP / Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
165*148*54mm
|
|
Net /Gross Weight
|
<1.3kg / <1.8 kg
|
|
Installation
|

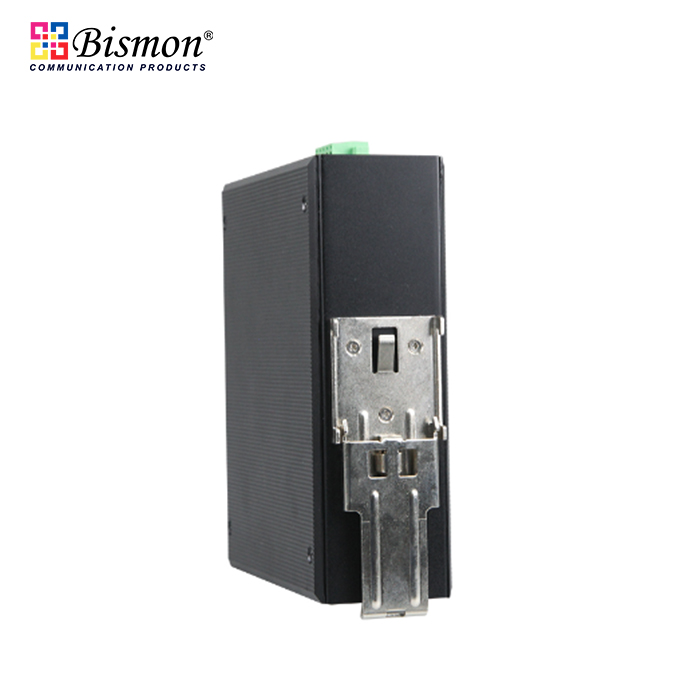

Desktop, 35mm DIN rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Lightning protection: 6KV 8/20us, Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V, 300V,1s
FCC Part 15/CISPR22(EN55022): Class B
IEC61000-6-2(Common Industrial Standard)
|
|
Mechanical Properties
|
IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
