B1-G9 Fiber Cleaver Automatic back Spring for 5G-FTTH


Part number : B1-G9

Brand : BISMON

Price : 4,668.00 Baht
(Dealer price can log-in/ Exclude Vat)

Delivery time : 2 Day

Minimum order quantity : 1 set

download pdf



OVERVIEW

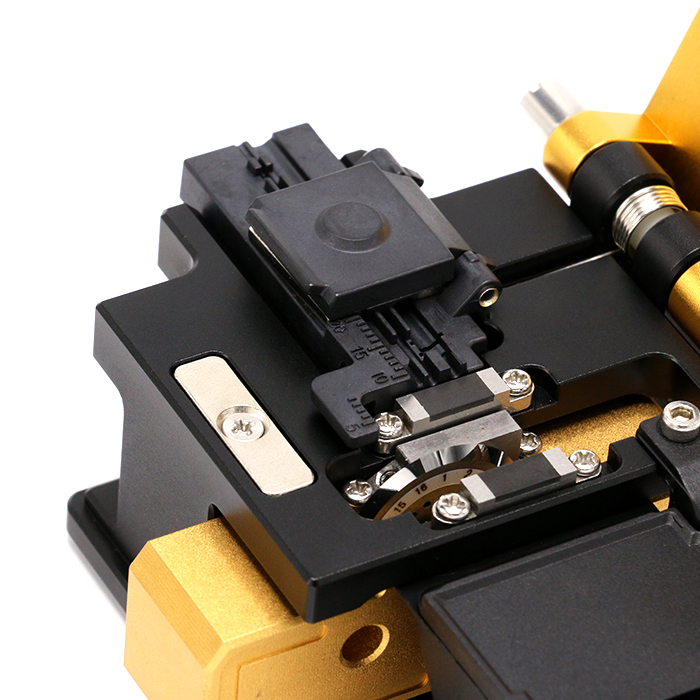

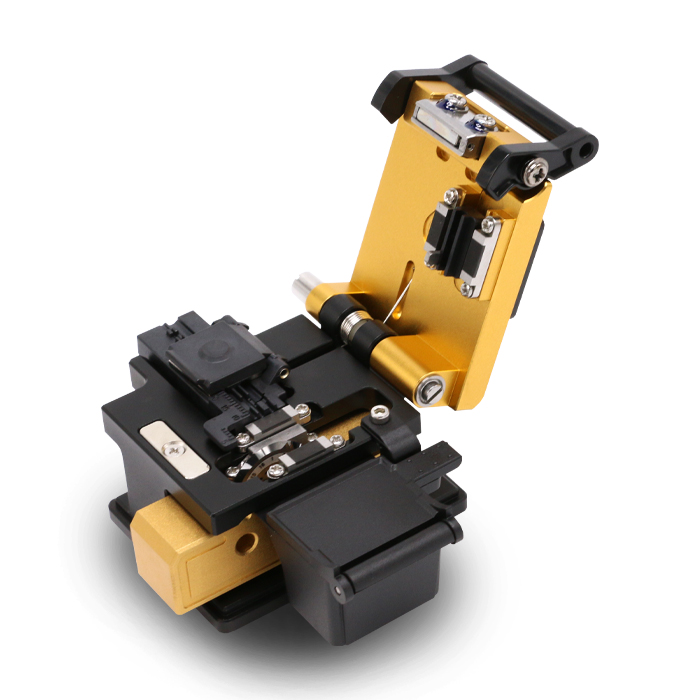

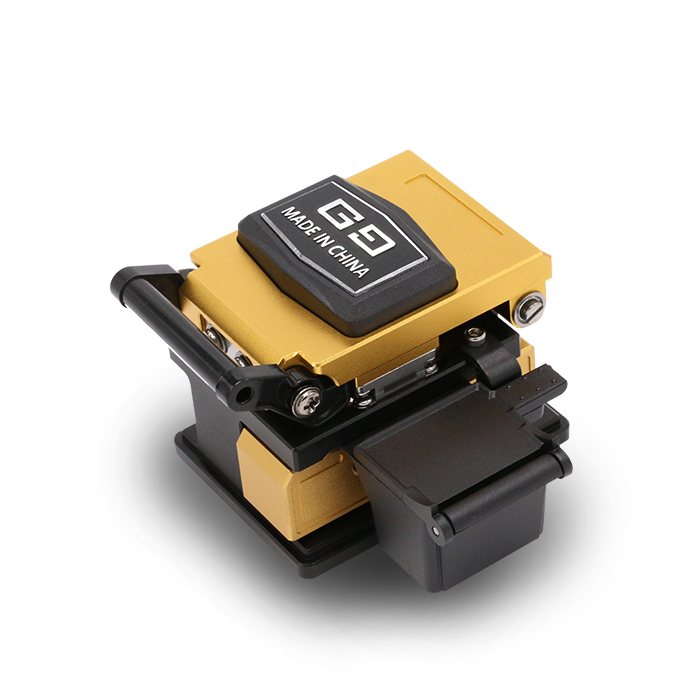

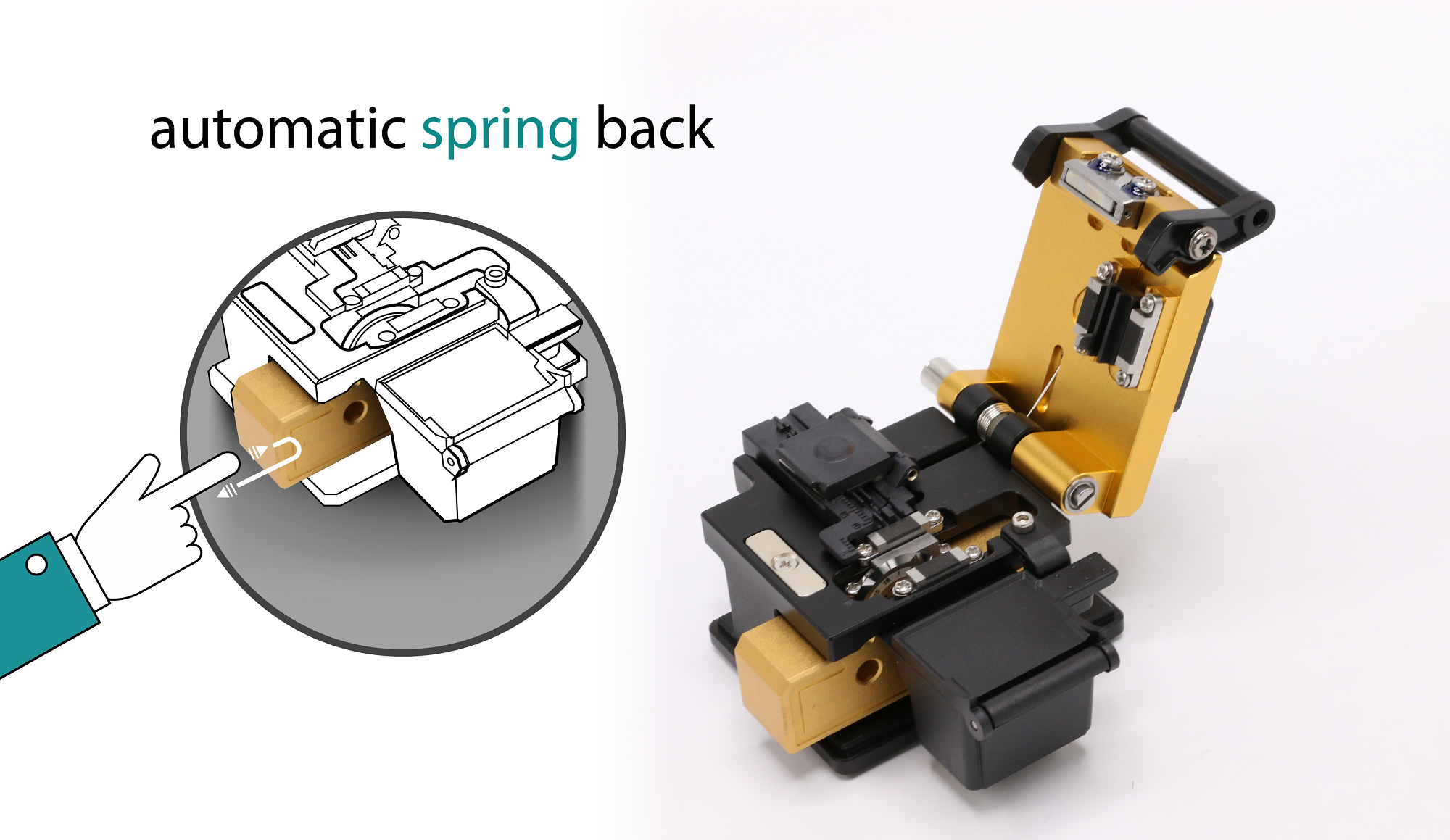

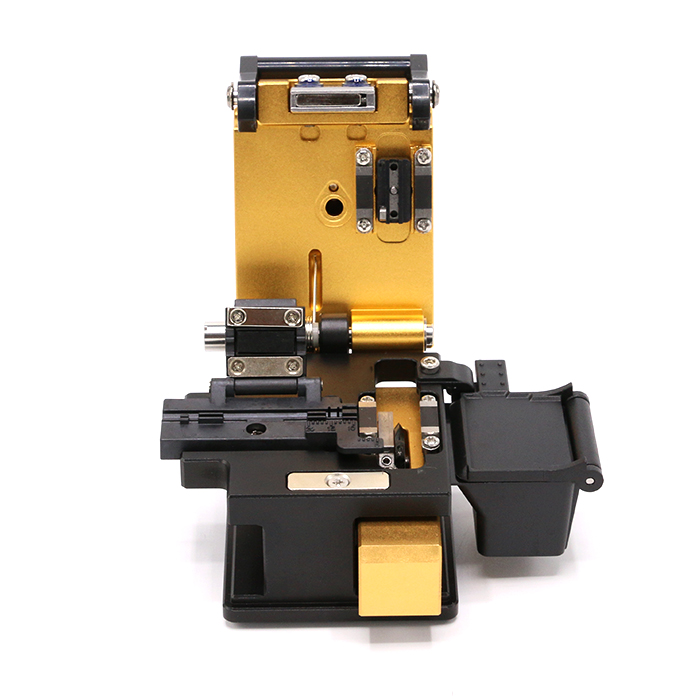

BISMON G9 Fiber Cleaver is a high precision optical fiber cleaver that is used for precision cutting single-core fiber or ribbon fiber. And it not only applies to 5G Cable, 2.1mm, 1.6mm, 250um coated fiber. but also apply to 900um coated fiber, cutting angle is smaller and more precise, easy to use do not need special skills, with automatic spring back function, collateral collector function, Bin of Optical safety.





Specification

• The average cleaver angle: 0.5 degrees

• Cleaver length: 5-20mm

• Blade life: 48,000 fiber core (1000 fiber core x16 blade end face x 3 blade height)

• Optical fiber cladding diameter: 125um

• Coated outer diameter: 5G cable, 2.1mm, 1.6mm, 250um, 900um, (2mm/3mm) jumper and cable

• Size: 63Wx 69Dx 58H (no including bin)

• Weight: 360g

• Blade model: RB-22
