OVERVIEW

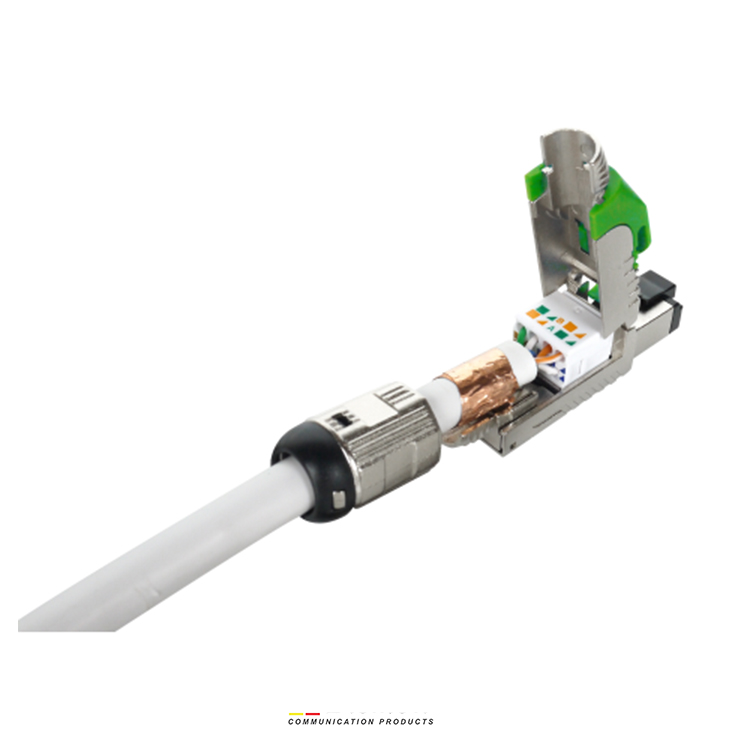

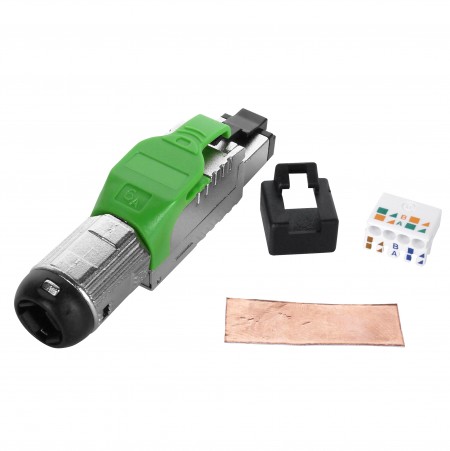

Cat.6A Toolless Termination plug shielded (Green color) he BISMON's new released white color Full Shielded Field Termination plug is designed to terminate with Cat6a or Cat7 larger diameter (23AWG to 26AWG), fit with the cable outer diameter from 6.0~7.5mm. Providing excellent network cabling solution for datacenter and also suitable for the Poe plus (IEEE 802.3at) application. Special design for easy, quick and reliable installation with crew-fit boot. IP20 anti-dust plug cover is provided as well.

Feature

• Full shielded with zinc alloy housing

• T568A & T568B wiring

• Complied with the C6A patch cord component level

• Cable wire gauge: 23AWG to 26AWG

• Cable outer diameter: 6.0 to 7.5mm

• Suitable for the PoE plus (IEEE 802.3at)

Applications

• Easy, quick and reliable installation

Material

1. Extractor: PC, UL 94V-2, options color.

2. Housing: Zinc Die-Casting with nickel plated.

3. RJ45 plug:

 • Housing: PC, UL 94V-2, black color.

 • Contact material: Phosphor bronze with 100 micro-inch nickel plated.

 • Contact finish: Min. 50 micro-inch gold plated on surface contact area.

4. Cover: Zinc die-casting with nickel plated.

5. Wire management bar: PC + glass fiber, white color, UL94-V2.

6. IDC:

 • Housing: PC, white color, UL94-V2

 • Terminal: Titanium copper with tin plated.

7. Grounding contact: Zinc die-casting with nickel plated.

8. Boot:

 • Housing: Zinc die-casting with nickel plated.

 • SR: PC, UL 94V-2, black color.

 • CAP: PC, UL 94V-2, black color.

9. PCB, UL 94-V0.

10. Copper foil tape.
