Introduction

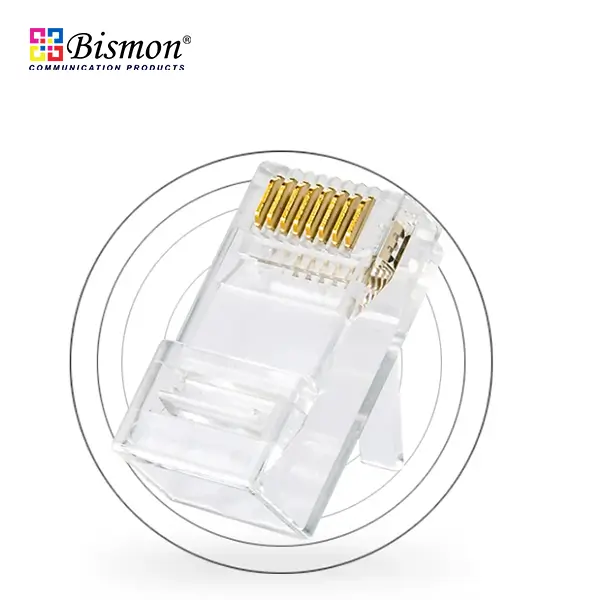

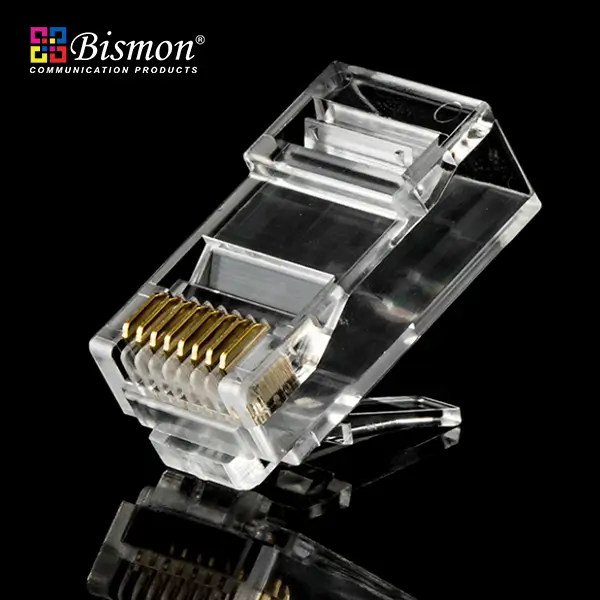

The PRA8860-B is an unshielded RJ45 modular plug used to terminate Cat6 UTP network cable. It is the male connector fitted to the end of a patch cord or a direct equipment drop, and mates with any standard

RJ45 port on a switch, router, patch panel, IP camera, printer, PC or server. The body is moulded from transparent polycarbonate, which resists cracking, keeps the locking latch springy after repeated insertion,

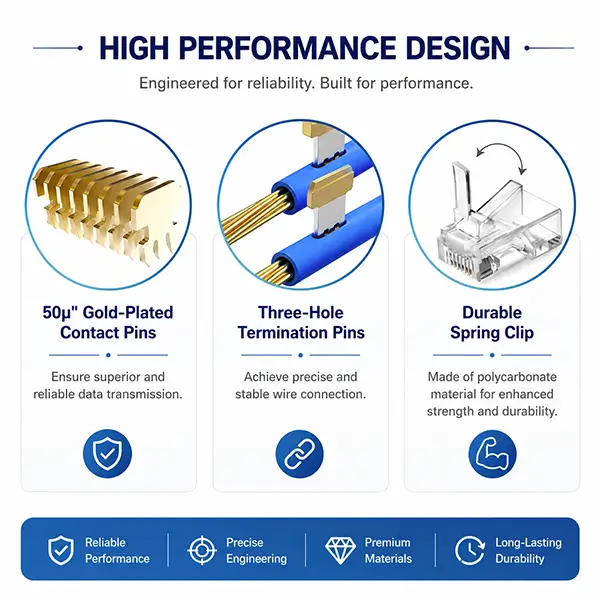

and lets the installer verify wire order and full seating of the conductors before crimping. All eight contacts carry 50 micro-inch gold plating over nickel, giving low and stable contact resistance together with good

resistance to wear and oxidation. Each contact uses a three-prong insulation displacement design that straddles the conductor at three points rather than one, providing a larger contact area and a more reliable

termination on both solid and stranded conductors. The eight wire channels are sized at 1.1 mm to suit Cat6 cable, and the plug is terminated to either T568A or T568B using a standard RJ45 crimping tool.

Features

• -Cat6 UTP Termination: Purpose-built for unshielded Cat6 horizontal and patch cable, supporting 1000BASE-T Gigabit Ethernet.
• -50 µ" Gold-Plated Contacts: Thick gold over nickel plating on all eight contacts keeps contact resistance low and stable and resists oxidation over the life of the link.
• -Three-Prong IDC Contacts: Each blade bites the conductor at three points instead of one, increasing contact area and reducing the risk of intermittent connections.
• -Solid and Stranded Compatible: One part number covers both horizontal cable terminations and flexible patch cord assembly.
• -1.1 mm Wire Channels: Sized for Cat6 insulated conductors, allowing all eight wires to be pushed fully to the front of the plug for a clean crimp.
• -Polycarbonate Body and Latch: Transparent PC housing allows visual inspection of wire order, and the resilient latch withstands repeated plugging without snapping.
• -T568A / T568B Wiring: Terminated with a standard RJ45 crimping tool to either wiring scheme, with no proprietary tooling required.
• -Universal Compatibility: Mates with any equipment fitted with a standard Ethernet RJ45 port, including switches, routers, CCTV cameras, printers, hubs, PCs and servers.
