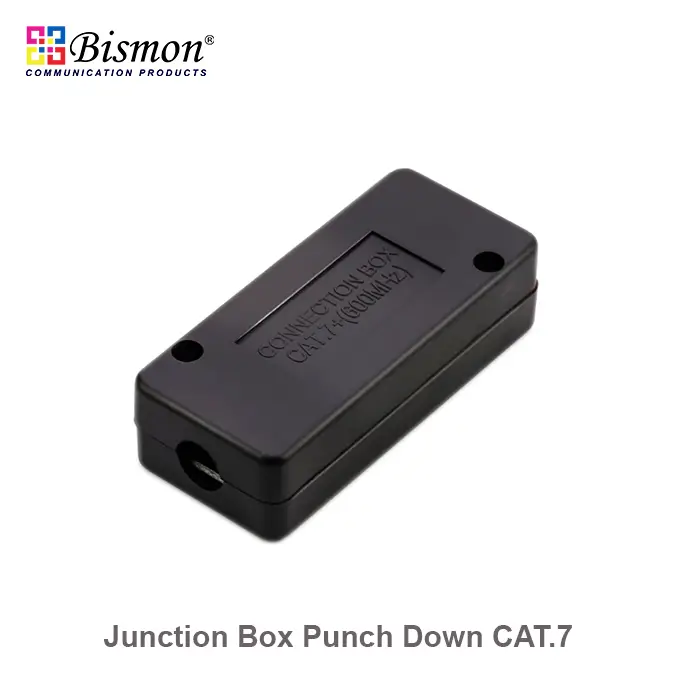

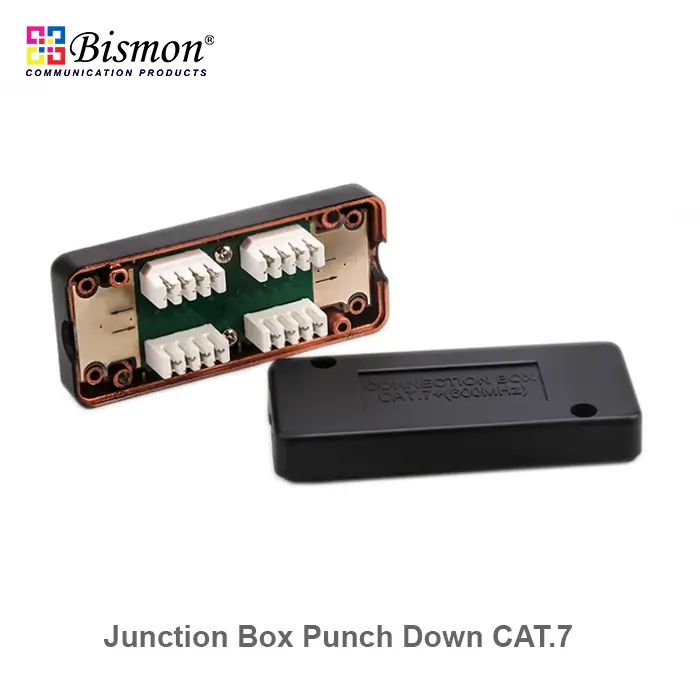

Name: Cat7 Punch Down Junction Box, Black color
Brand: BISMON
SKU: B1JUNBCAT7
Price: 336.00 THB
Availability: InStock

Cat7 Punch Down Junction Box, Black color

Part number : B1-JUNBCAT7

Brand : BISMON

Price : 336.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 pcs

Size : 84x37x23mm

Warranty : 1 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

Category 7 Connection Module – Up to 600 MHz with IDC Terminals

This connection module is designed for high-performance Cat.7 cabling, supporting frequencies up to 600 MHz. It features IDC (insulation displacement contact) terminals for reliable and secure connections.

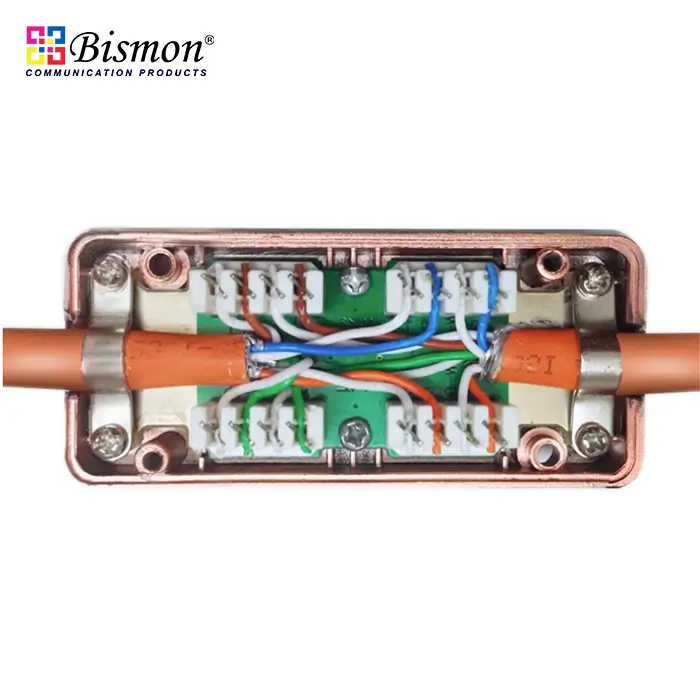

Ideal for extending installation cables or repairing damaged cable sections, the module allows for seamless reconnection without the need to replace the entire cable run. Both cable ends are terminated using LSA IDC terminals.

Compatible with all standard 4- or 8-core installation cables (AWG 26–22) and supports sheath diameters up to 10 mm.

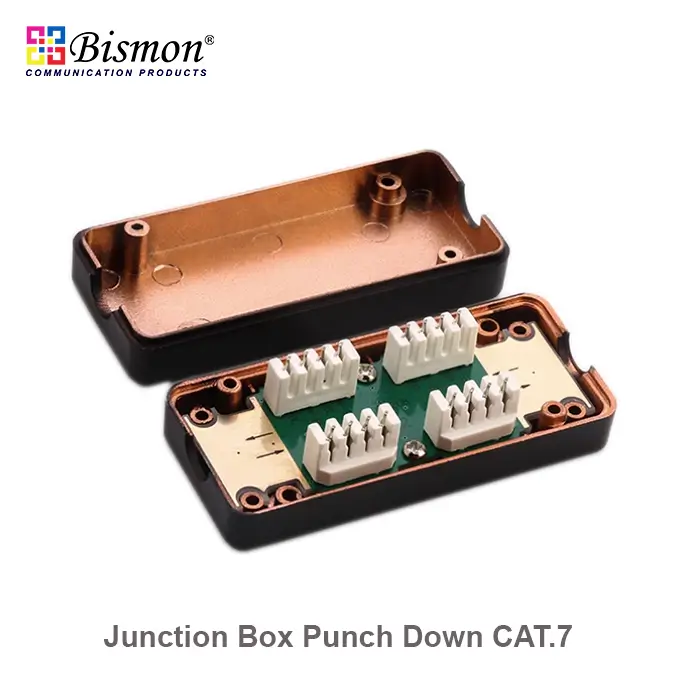

The housing is internally metallized to ensure optimal shielding and protection.

Technical details

Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
General properties:
Suitable for installation in trunking, surface and flush mount

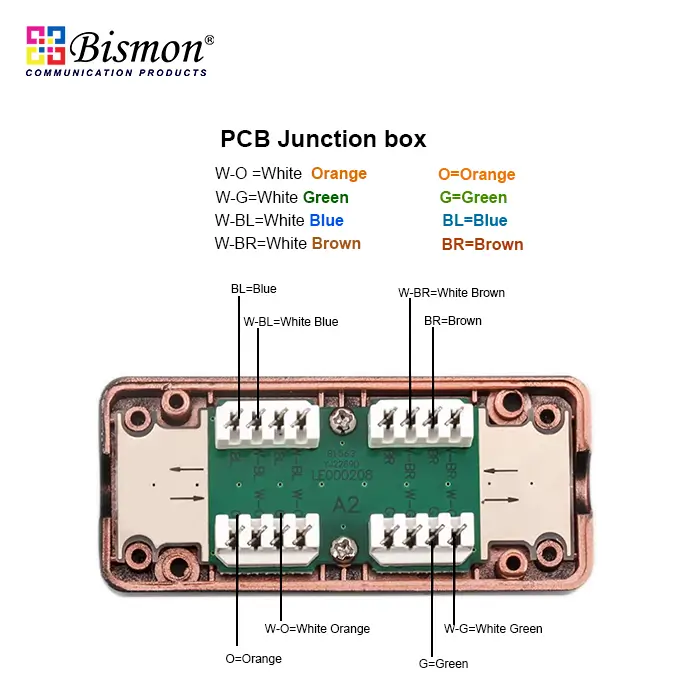

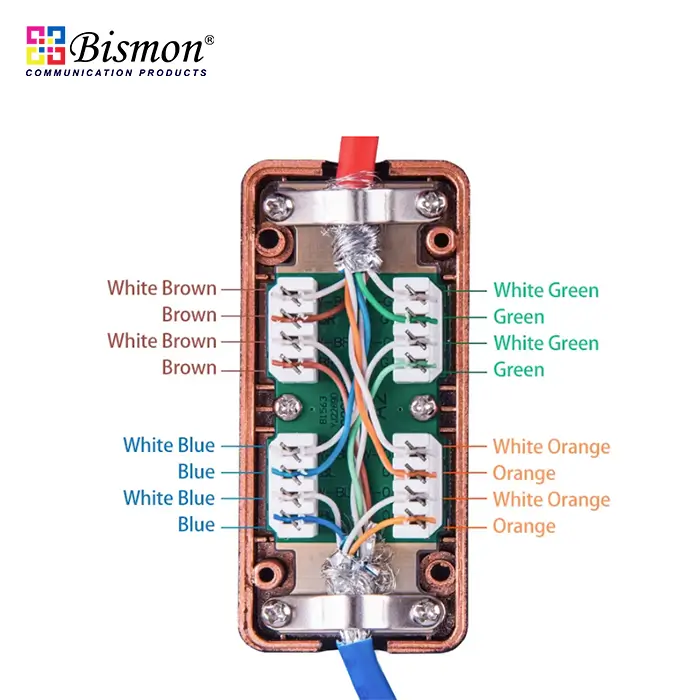

Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
Suitable for connection of installation cables - extension of cables, replacing of defect cable links

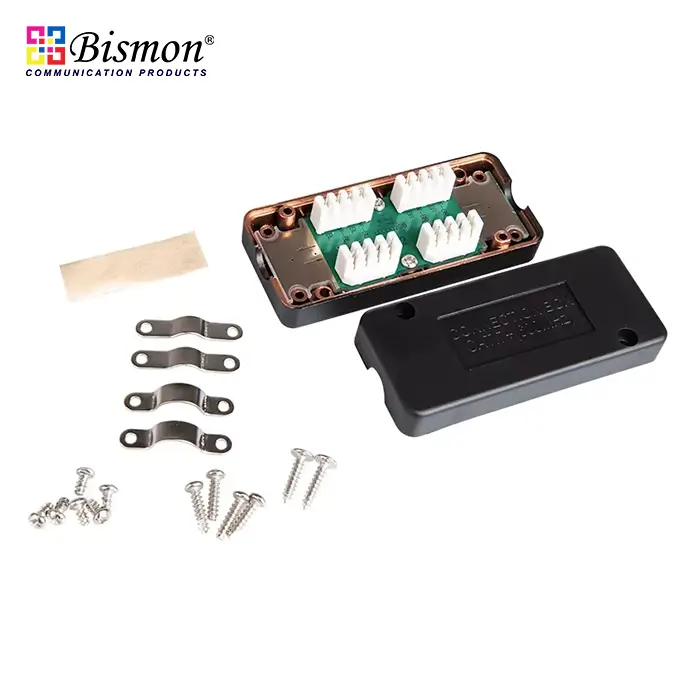

Integrated strain relief for installation cables
Suitable for cables with AWG 22-26 diameter
Technical properties:
Housing material: ABS UL-94V-0
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
