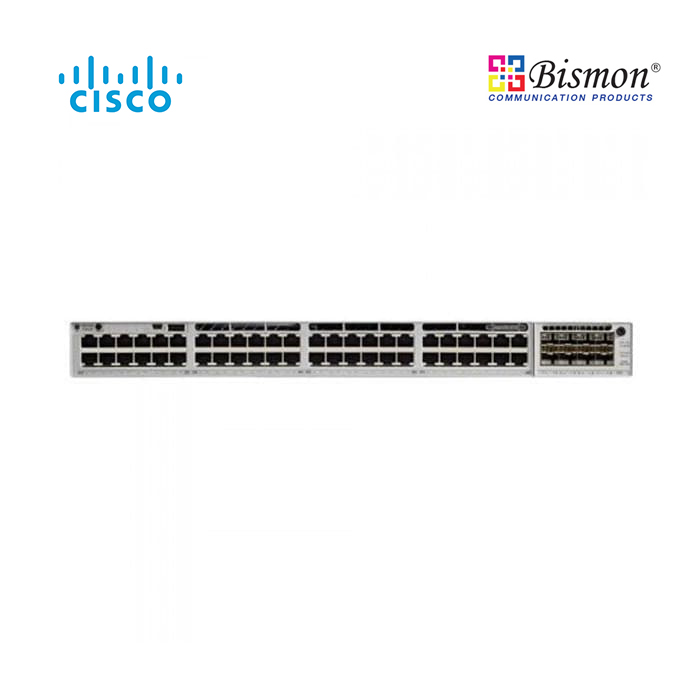

Cisco Catalyst 9300 – Network Essentials – switch – 48 ports – Managed – rack-mountable

Switch – 48 ports – L3 – Managed – stackable

Rack-mountable 1U

Gigabit Ethernet

48 x 10/100/1000

Switching capacity: 128 Gbps Stacking bandwidth: 480 Gbps Forwarding rate: 190.48 Mpps

IPv4 routing table entries: 32000 IPv6 routing table entries: 16000 Flexible NetFlow entries: 64000 VLAN IDs: 4000 Switched virtual interfaces (SVIs): 2000

32000 entries

9198 bytes

OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

AC 120/230 V (50 – 60 Hz)

Optional

44.5 cm x 44.5 cm x 4.4 cm

7.45 kg
