Specification

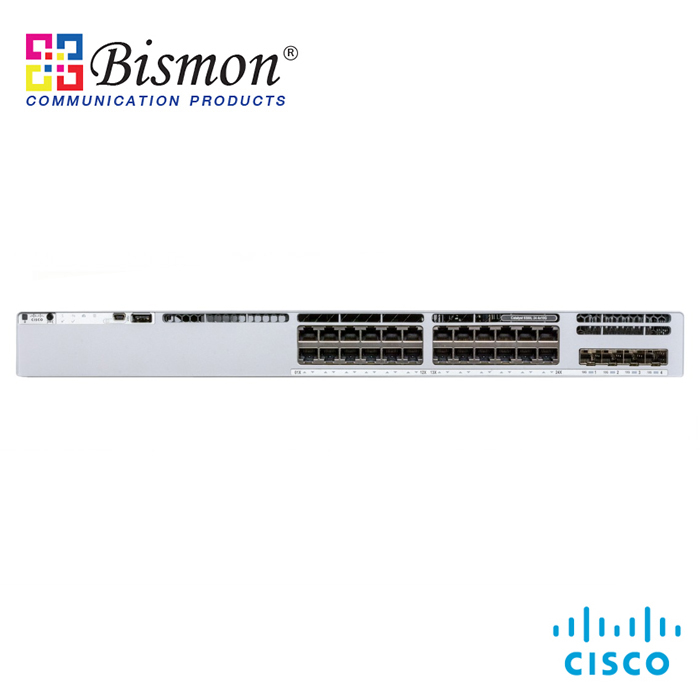

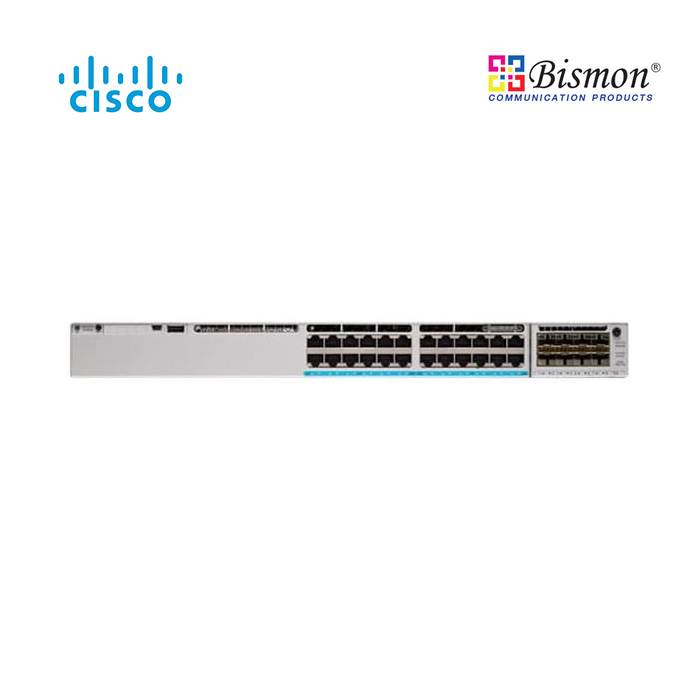

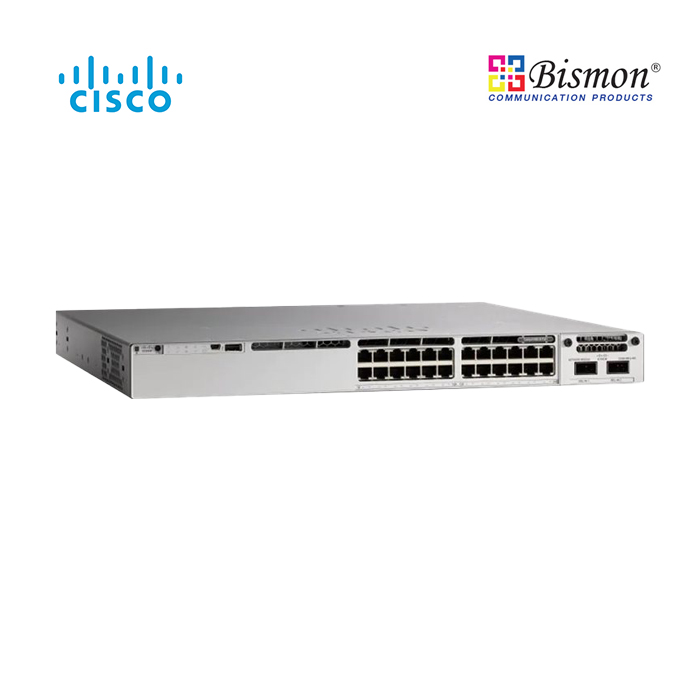

Device Type Switch - 24 ports - L3 - stackable

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)

Switching capacity with stacking: 448 Gbps

Switching capacity: 128 Gbps

Forwarding rate: 95.23 Mpps

Forwarding rate with stacking: 333.33 Mpps

Capacity IPv4 routes: 32000

IPv6 routes: 16000

Multicast scale: 8000

QoS scale entries: 5120

ACL scale entries: 5120

Routed ports: 416

VLANs supported: 4094

Switched virtual interfaces (SVIs): 1000

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Features Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz

Power AC 120/230 V (50 - 60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 44.5 cm x 4.4 cm x 40.9 cm

Weight 6.78 kg
