Stable Light Source Module

Stable light source plays an irreplaceable role in all optical testing and researching area. In order to

satisfy different application scenario needs, Dimension developed 4 kinds of stable light sources: DFB

laser source, FP laser source, SLED broadband light source, and ultra-narrow linewidth laser source.

• 1CH, 2CH, or 4CH output available, each channel could be independently controlled. Wavelength

and power can be customized.

• Support USB / Ethernet / button controlling.

• Modular design, high precision, high reliability interface with patent. Flexible disassembled SC/FC

connector, convenient for post-maintenance.

DFB laser source

Main Features

• High stability, 24-hour power stability is less than ±0.005dB

• High precision TEC temperature controlling module

• Output power up to 20 mW

• Support internal modulation

Applications

• CWDM channel testing

• Optical network monitoring

• IL/RL testing

• Optical passive device, active device testing

• Instrument performance testing

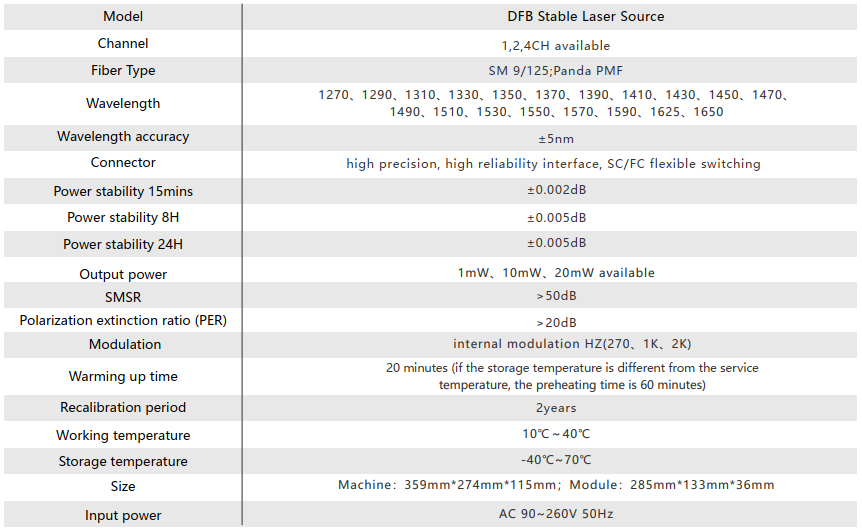

Ordering Information
