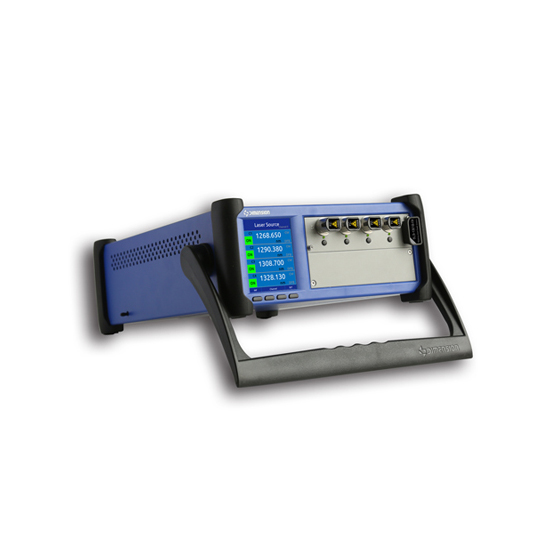

Stable Light Source Module

Stable light source plays an irreplaceable role in all optical testing and researching area. In order to

satisfy different application scenario needs, Dimension developed 4 kinds of stable light sources: DFB

laser source, FP laser source, SLED broadband light source, and ultra-narrow linewidth laser source.

• 1CH, 2CH, or 4CH output available, each channel could be independently controlled. Wavelength

and power can be customized.

• Support USB / Ethernet / button controlling.

• Modular design, high precision, high reliability interface with patent. Flexible disassembled SC/FC

connector, convenient for post-maintenance.

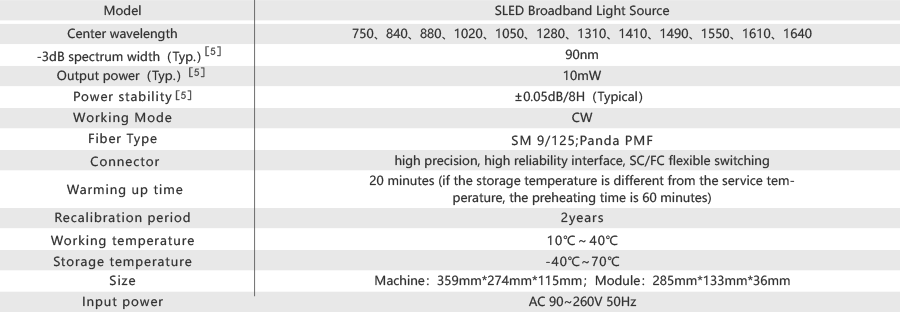

SLED broadband light source

Main Features

• Wide spectral range (3dB spectral width 90nm)

• High output power (10mW)

• Excellent power stability

Applications

• Coarse wavelength division multiplexing (CWDM) network testing

• Passive optical network (PON) component manufacturing and testing

• Fiber sensing and spectral analysis

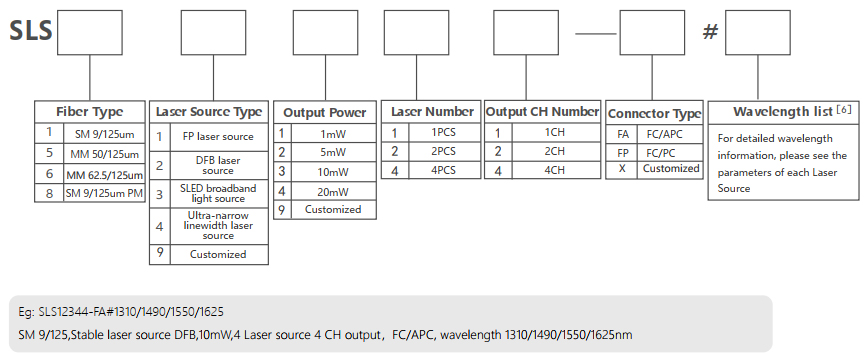

Ordering Information
