Overview

Keep Your PoE Networks Protected in Cabinets and Control Rooms

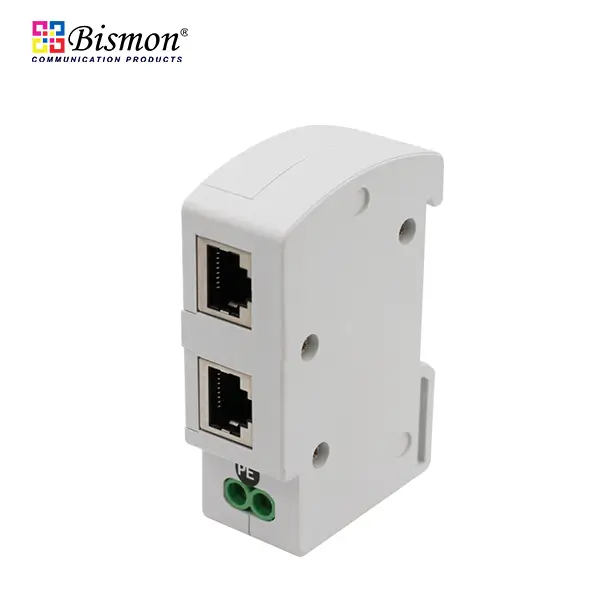

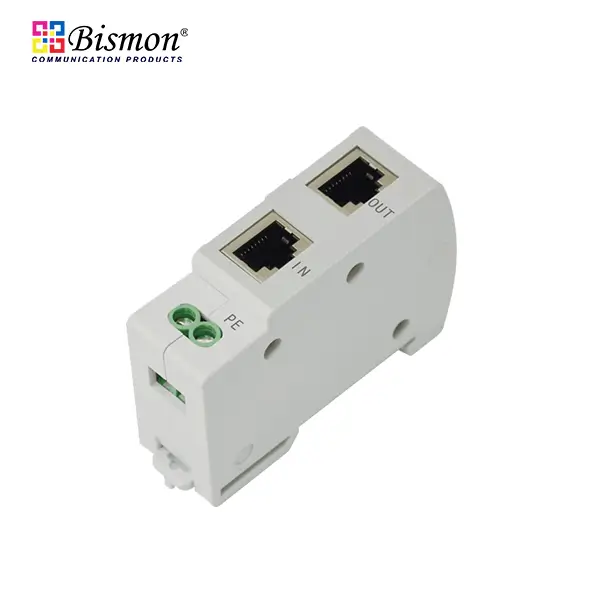

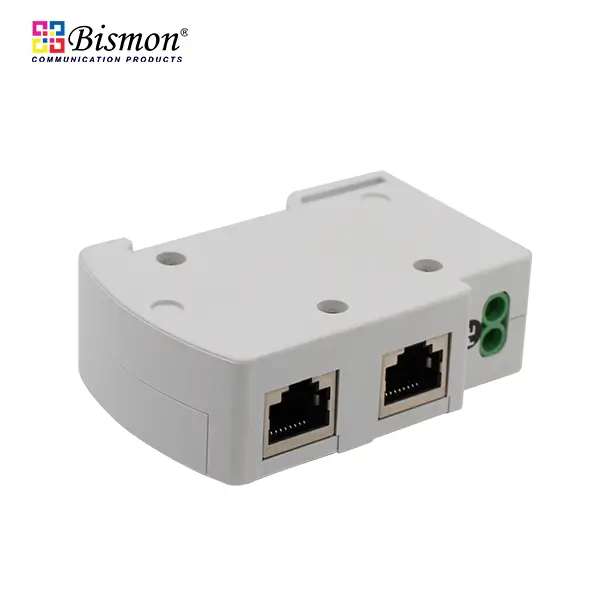

The B1-SP-005POE-100 is a compact, cost-effective DIN-rail Gigabit PoE surge protector designed for use in telecom cabinets, industrial control rooms, and multi-device network racks. It protects PoE-powered equipment such as IP cameras, VoIP phones, and access points from lightning strikes and transient surges, ensuring uninterrupted operation in mission-critical environments.

·Your Defense Against Harmful Voltage Surges

With the suppression design, this device absorbs and diverts surge currents of up to 10kA (8/20 μs waveform). All eight pins of the RJ45 interface are protected, safeguarding both data and PoE power lines. Built with high-quality surge protection elements, it ensures fast clamping response and stable throughput up to 1 Gbps, meeting the requirements of demanding commercial and industrial applications.

·Ready for Seamless DIN-Rail Integration

The B1-SP-005POE-100 supports IEEE802.3af/at/bt PoE standards while maintaining low insertion loss (<0.2 dB) for consistent Gigabit Ethernet performance. No software or external power supply is required—simply mount on a standard 35 mm DIN rail and connect. Its flame-retardant plastic housing provides safe, lightweight installation, making it ideal for environments where space and budget efficiency matter.

Applications

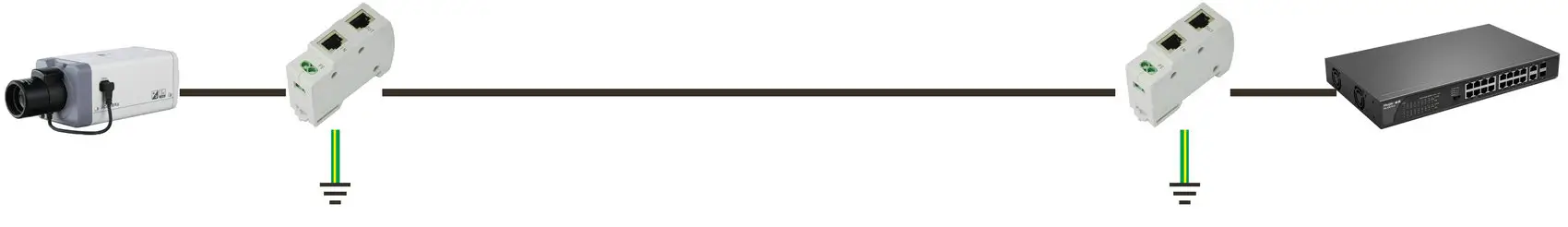

1.Surveillance systems in campus or enterprise environments.

2.Telecom and data cabinets requiring multi-line PoE protection.

3.Industrial automation and transportation networks with sensitive controllers and sensors.

4.Commercial networks supporting wireless APs, access control panels, or intercom systems.
