Overview

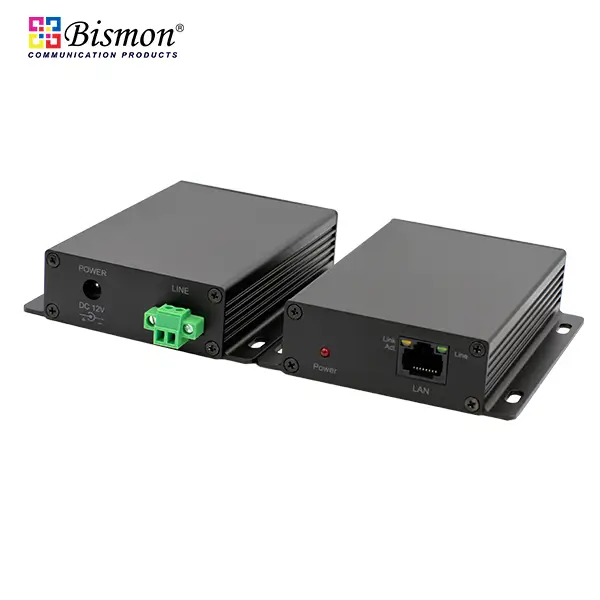

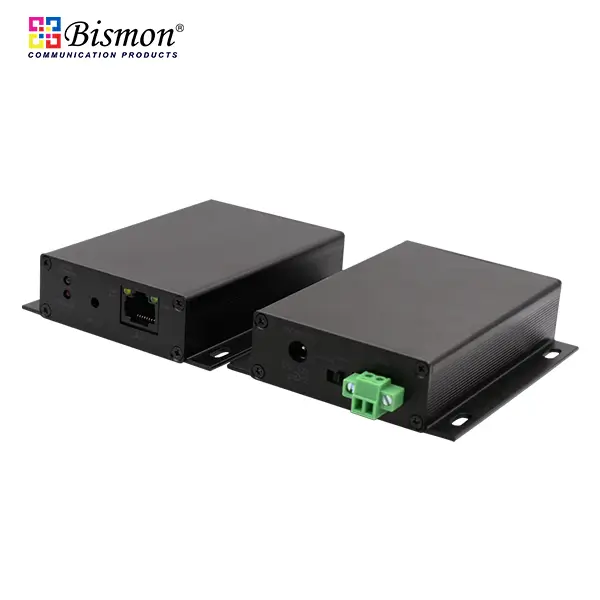

The B1-PLC602-1G is an ultra-performance Gigabit Ethernet over 2-wire extender built to overcome both distance and bandwidth limitations. Supporting full-duplex 1000 Mbps over existing 2-core copper wiring—such as twisted pair, telephone lines, or power cables—it delivers blazing-fast data rates and rock-solid stability without the need for costly recabling. Ideal for industrial facilities, advanced security systems, and high-demand commercial networks, it ensures seamless performance for even the most data-intensive applications.
Key Features
1.Supports full-duplex 1000 Mbps for high-bandwidth applications
2.Extend Ethernet far beyond the standard 100-meter limit over 2-wire, twisted pair, or telephone lines
3.Advanced modulation for superior anti-interference performance
4.Transparent transmission for plug-and-play installation—no configuration required
5.Flexible mounting options: desktop, wall, or DIN-rail
6.Wide 12–24 VDC power input; low power consumption for cost efficiency
7.Rugged, long-life design compliant with IEEE1901 and IEEE802.3 standards
Applications
1.High-Definition Video Surveillance — Support multiple HD or 4K IP cameras over extended distances without frame loss.
2.Industrial Automation & Control — Transfer large datasets between sensors, controllers, and servers with zero downtime.
3.Business & Branch Connectivity — Handle VoIP, video conferencing, and large file transfers between remote offices or retail sites.
4.Smart Building Upgrades — Deploy IoT devices, security gateways, and building management systems while avoiding expensive cabling work.
Parameter
|
Category
|
Description
|
|
Power
|
Available Voltage Range
|
12-24VDC
|
|
Power Consumption
|
≤3W/PC
|
|
Transmission/Rate
|
Standard Compliance
|
IEEE1901, IEEE802.3
|
|
Up Down Agreement
|
CSMA/CA
|
|
Bandwidth
|
Full duplex 100/1000Mbps
|
|
Encryption Method
|
128-bit AES
|
|
Physical Characteristic
|

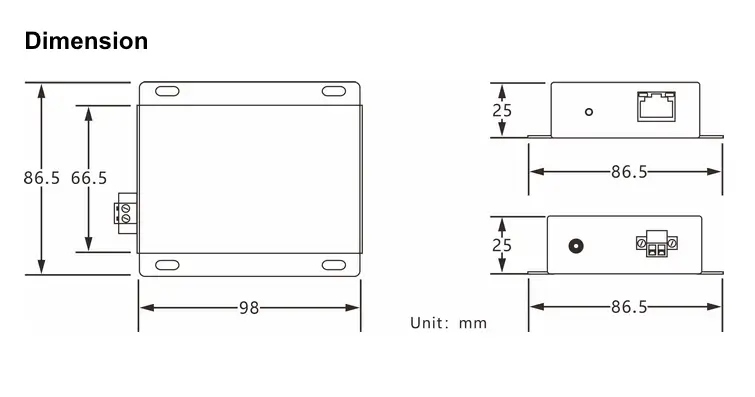

Dimensions (L×W×H)
|
98×86.5×25mm
|
|
Material
|
Aluminum Alloy
|
|
Net Weight
|
160g/PC
|
|
Operating Environment
|
Working Temperature
|
-20 C- 60 C
|
|
Working Humidity
|
< 95%(Non-condensation)
|

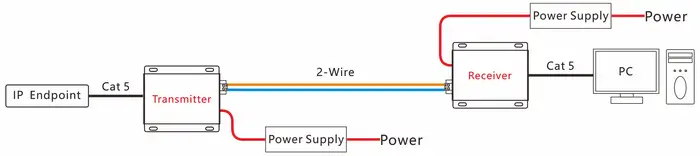

Point to Point

Point to Multi-point: Two Endpoint (Star)
.webp)
Point to Multi-point: Three Endpoint (Star)
.webp)
Point to Multi-point: Four Endpoint (Star)
.webp)
