Overview

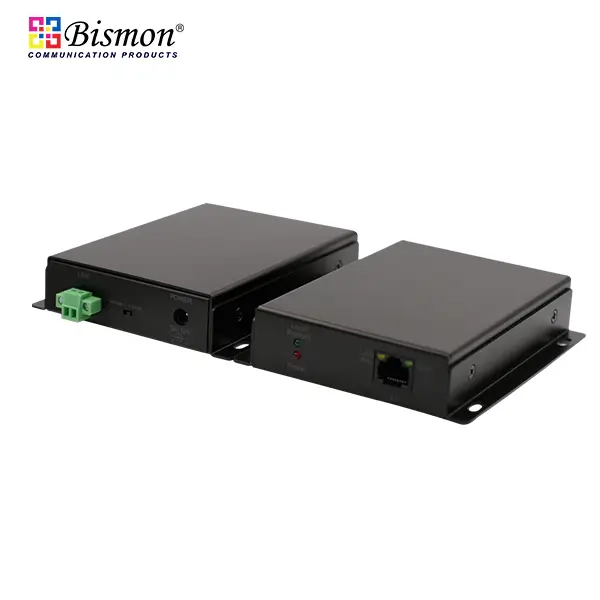

The B1-L-DSL-N is a high-performance VDSL2 Ethernet extender engineered for large-scale or bandwidth-intensive applications. Delivering 80 Mbps upstream and 80 Mbps downstream over distances up to 3000 meters, it makes full use of existing 2-wire infrastructure—such as telephone lines—while offering a wide voltage input range of 12–24 VDC. With a larger, more robust housing and enhanced throughput, it’s the ideal choice for heavy-duty surveillance, industrial automation, and multi-building networking projects where stability and speed are non-negotiable.

Key Features

1.Higher bandwidth — 80 Mbps upstream + 80 Mbps downstream for demanding data, video, and VoIP applications

2.Wide voltage input (12–24 VDC) for flexible deployment in diverse power environments

3.Large, rugged housing for improved heat dissipation and long-term durability

4.Extend Ethernet up to 3000 meters over 2-wire, twisted pair, or telephone lines

5.VDSL2 modulation (QAM + DMT) with FDM to separate voice and data traffic

6.DIP switch for quick local/remote configuration without software setup

7.Transparent transmission mode ensures full protocol compatibility

8.Multiple mounting options: desktop or wall-mount

9.Interfaces: Phoenix terminal (2P), RJ45 ports, DC 5mm power port

10.Standards compliant: IEEE802.3, IEEE802.3u, IEEE802.3ab

Applications

1.Heavy-Duty ADSL Upgrades — Modernize large-scale telephone infrastructures to IP with higher bandwidth requirements

2.High-Load Remote Surveillance — Extend high-resolution camera or access control signals over long distances with superior stability

3.Enterprise VoIP & IPTV — Deliver HD video and voice services to large facilities or multi-site networks without new cabling

4.Branch & Retail Networking — Connect high-traffic satellite offices, kiosks, or retail locations to main networks

5.Industrial Connectivity — Maintain fast, reliable Ethernet links up to 3000 m for data-intensive industrial and automation systems
