Overview

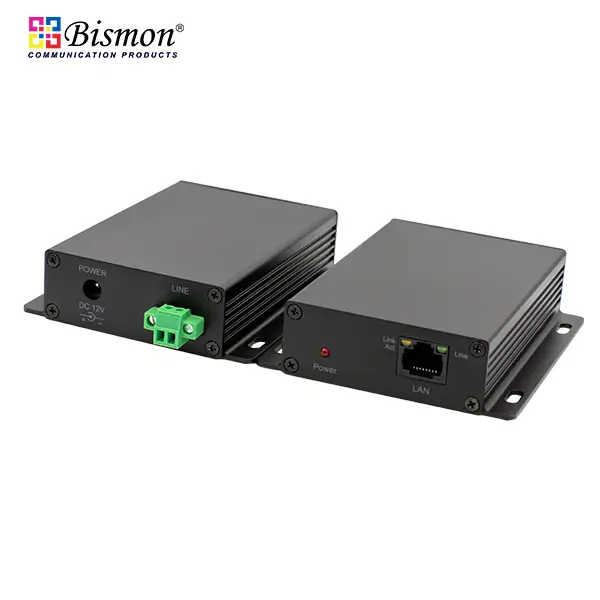

The B1-PLC602-1G is an ultra-performance Gigabit Ethernet over 2-wire extender built to overcome both distance and bandwidth limitations. Supporting full-duplex 1000 Mbps over existing 2-core copper wiring—such as twisted pair, telephone lines, or power cables—it delivers blazing-fast data rates and rock-solid stability without the need for costly recabling. Ideal for industrial facilities, advanced security systems, and high-demand commercial networks, it ensures seamless performance for even the most data-intensive applications.

Key Features

1.Supports full-duplex 1000 Mbps for high-bandwidth applications

2.Extend Ethernet far beyond the standard 100-meter limit over 2-wire, twisted pair, or telephone lines

3.Advanced modulation for superior anti-interference performance

4.Transparent transmission for plug-and-play installation—no configuration required

5.Flexible mounting options: desktop, wall, or DIN-rail

6.Wide 12–24 VDC power input; low power consumption for cost efficiency

7.Rugged, long-life design compliant with IEEE1901 and IEEE802.3 standards

Applications

1.High-Definition Video Surveillance — Support multiple HD or 4K IP cameras over extended distances without frame loss.

2.Industrial Automation & Control — Transfer large datasets between sensors, controllers, and servers with zero downtime.

3.Business & Branch Connectivity — Handle VoIP, video conferencing, and large file transfers between remote offices or retail sites.

4.Smart Building Upgrades — Deploy IoT devices, security gateways, and building management systems while avoiding expensive cabling work.

Parameter

Point to Point

Point to Multi-point: Two Endpoint (Star)

Point to Multi-point: Three Endpoint (Star)

Point to Multi-point: Four Endpoint (Star)
