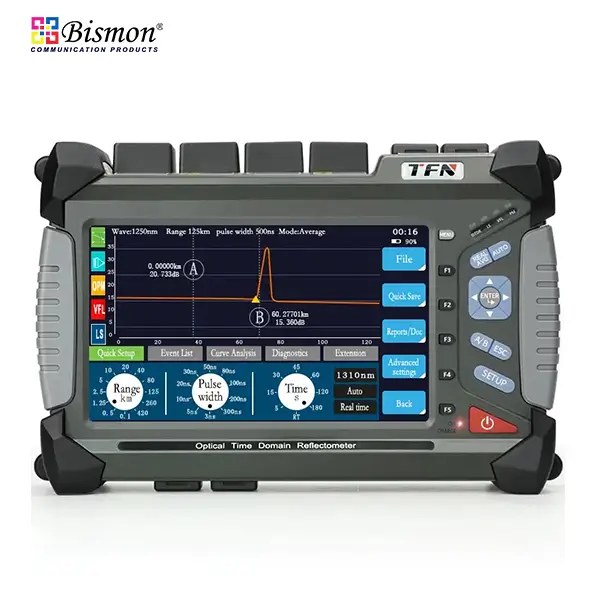

TFN F7 Series – Multi-Function OTDR
High-Performance Optical Time Domain Reflectometer for PON / FTTx Networks
TFN F7 Series เป็นเครื่อง OTDR แบบ Multi-function ระดับมืออาชีพ ออกแบบมาสำหรับงานตรวจสอบและวิเคราะห์สายไฟเบอร์ออปติกอย่างแม่นยำ รองรับทั้ง Single-mode, Multi-mode และ Hybrid Fiber Testing เหมาะสำหรับงานติดตั้ง ตรวจสอบ และบำรุงรักษาโครงข่าย PON / FTTx / Data Center / Telecom
รองรับหลายช่วงความยาวคลื่น (Wavelength) รวมถึง 1310 / 1490 / 1550 / 1625 / 1650 nm สำหรับงานทั้ง Live Fiber Testing และ Maintenance Network โดยไม่ต้องตัดสัญญาณ
มาพร้อม Dynamic Range สูงสุดถึง 45 dB, Event Blind Zone ต่ำสุด 0.8 เมตร และหน้าจอ 8-inch Touchscreen ใช้งานง่าย เหมาะทั้งภาคสนามและงานระดับมืออาชีพ
Applications
- -งานติดตั้งและตรวจสอบ FTTx / GPON / EPON
- -งาน Data Center Fiber Testing
- -งานโครงข่าย Telecom / ISP
- -งานตรวจสอบสาย Long Distance Backbone
- -งาน Maintenance และ Troubleshooting
- -งานตรวจสอบ Live Fiber (ไม่ต้องดับระบบ)
Key Features
- -Supports singlemode, multimode, and combined options.
- -38/36dB Up to 45 dB dynamic range
- -A minimum event blind zone of 0.8 m
- -The online test module enables lossless link light test
- -An 8-inch color touchscreen is easy to use
- -OPM, VFL, OLS
- -Live fiber testing (optional)
- -Fiber microscope
- -Optical loss test

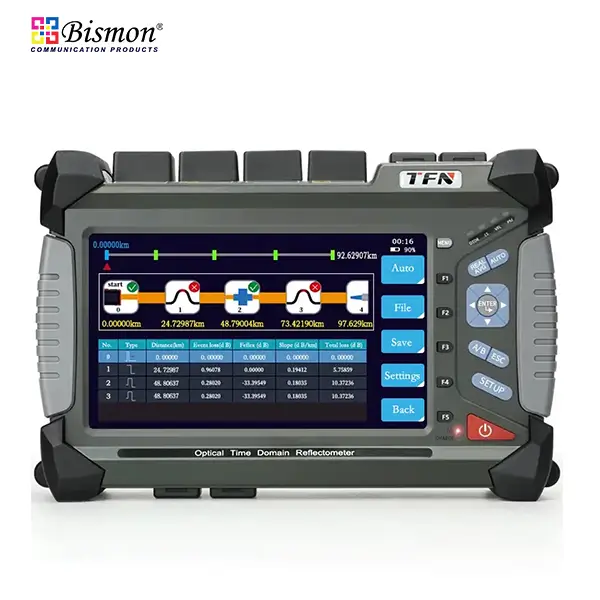

- -Event map
- -Bluetooth
TFN offers a high-performance multi-function OTDR for fast and accurate optical fiber testing. F7 features dual-wavelength, three-wavelength (for active fiber online test), and four-wavelength options, fully supporting PON/FTTx networks.
Specifications
|
Model / Item
|
F7-S1
|
F7-S3
|
F7-S4
|
F7-M1
|
F7-SM1
|
F7-T1
|
F7-T2
|
F7-T3
|
|
Wavelength (nm)
|
1310/1550
|
1310/1550
|
1310/1550
|
850/1300
|
850/1300/1310/1550
|
1310/1490/1550
|
1310/1550/1625
|
1310/1550/1650
|
|
Dynamic Range (dB)
|
35/33
|
42/40
|
45/43
|
26/28
|
26/28/35/33
|
38/36/36
|
38/36/36
|
38/36/36
|
|
Event Dead Zone (m)
|
1
|
0.8
|
0.8
|
1
|
1
|
0.8
|
0.8
|
0.8
|
|
Attenuation Dead Zone (m)
|
5
|
4
|
4
|
5
|
5
|
4
|
4
|
4
|
|
Test Range
|
500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/250km/420km
|
|
Pulse Width
|
3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us
|
|
Distance Accuracy
|
±(0.75 m+ sampling interval + 0.005%*test distance)
|
|
Optical Connector
|
FC/PC ?interchangeable SC, ST?
|
|
OPM
|
-50 dB ~+26 dB
|
|
Battery
|
15600 mAh. Standby time over 10 hours
|
|
Weight
|
1.7 kg
|
Product Features
1.High Precision and Extended Dynamic Range
Delivers up to 35/33 dB dynamic range, expandable to 45 dB, enabling accurate testing of long-haul fiber links.
With a distance resolution of 0.05 m and a minimum event dead zone of just 0.8 m, the system reliably detects short-distance events and subtle signal losses.
2.All-in-One, Modular Test Platform
Supports SM, MM, or hybrid configurations, with two/ three/ four-wavelength options to match diverse network environments.
Integrated OTDR, light source, optical power meter, VFL, end-face inspection, and network testing functions reduce the need for multiple instruments and lower total equipment costs.
3.Intelligent Diagnostics & Efficient Operation
Built-in self-diagnostic analysis improves test accuracy and result reliability.
Customizable Pass/Fail criteria, multi-trace comparison, and one-click PDF report generation streamline on-site verification and documentation.
4.Remote and Live Network Testing
Supports Ethernet-based remote OTDR control, making it suitable for unattended testing and centralized maintenance operations.
Optional online testing modules enable non-intrusive testing of live fiber links, allowing measurements without service interruption.
5.Flexible Expansion & Industry Compatibility
Equipped with multiple interfaces including USB-A, USB-C, Ethernet, and Bluetooth for seamless connection to USB storage devices, end-face microscopes, and PCs.
Test data complies with SOR industry standards, ensuring smooth file sharing and compatibility with third-party analysis software.

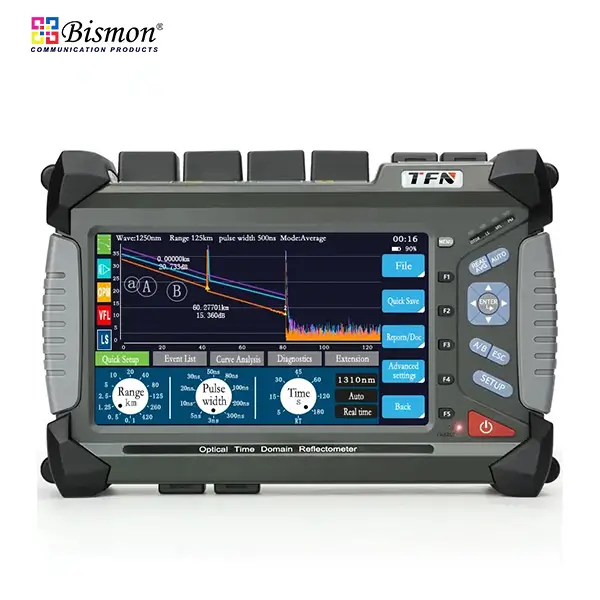

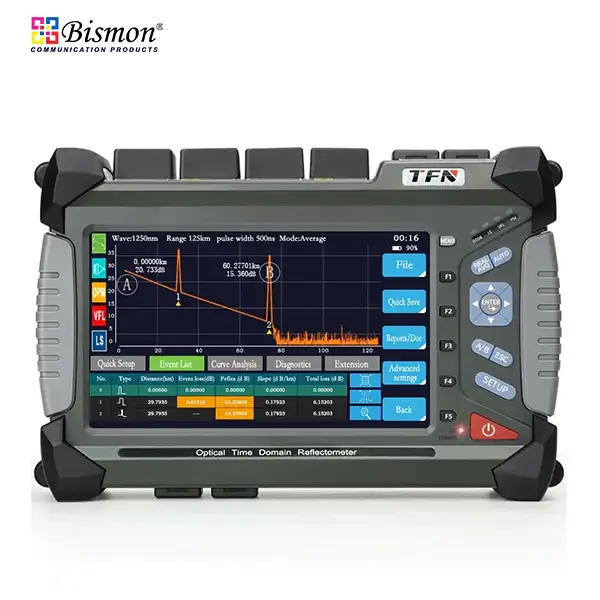

OTDR Testing
Supports up to four wavelengths

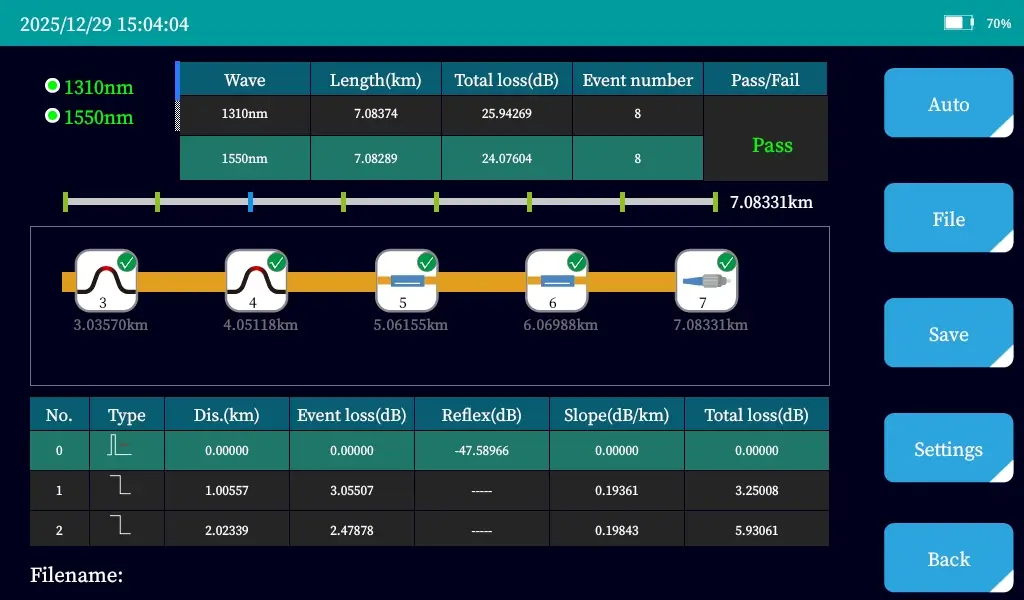

Features event mapping, macro-bend analysis, and four-point/LSA curve analysis. Configurable start/end fibers with customizable threshold detection.

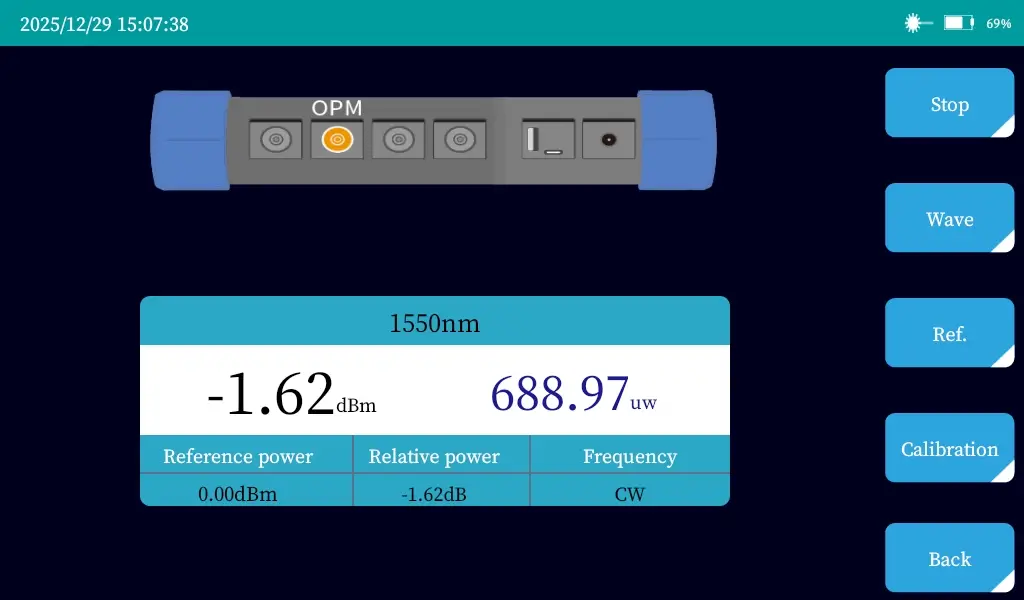

Optical Laser Source (OLS) and Optical Power Meter (OPM)
Light source supports CW, 270 Hz, 1 kHz, 2 kHz modulation.
Wide optical power meter measurement range (+70 dBm to +26 dBm), supports multi-wavelength identification.

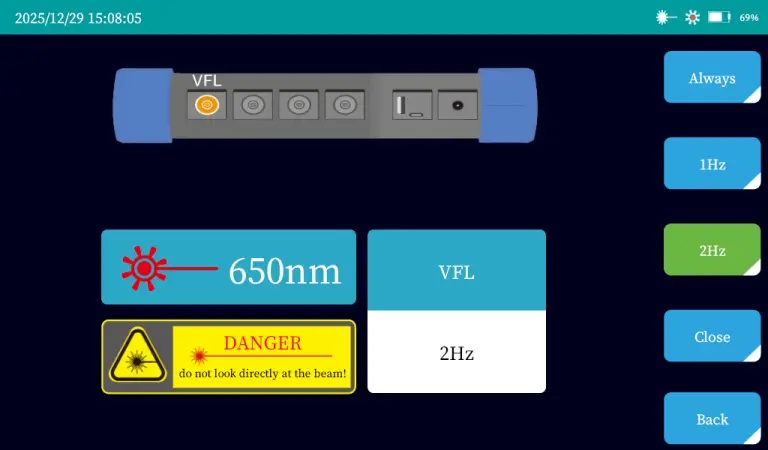

Visual Fault Locator (VFL)
Supports continuous 1 Hz/ 2 Hz visible red light for rapid fiber fault location.
