PRODUCT DESCRIPTION

The FTTx PON Simulator from AFL is designed to simulate a wide variety of FTTx PON architectures. It is field-configurable to implement both single splitter and distributed splitter PONs, including:

• Single splitter PON: 1x16, 1x32, 1x64, 1x128

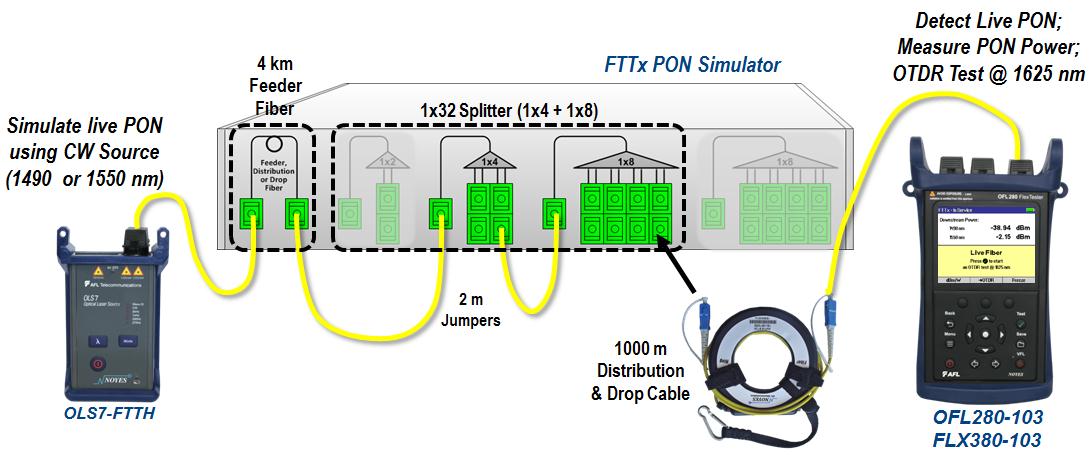

• Distributed splitter PON: 1x4 + 1x8, 1x4 + 1x16, 2 x 1x8.

The field-portable FTTx PON Demo Kit may be used for lab or table-top FTTx PON demonstration, evaluation, and testing applications.  The demo kit includes:

• Multiple splitters with split ratios of 1x2, 1x4, and 1x8;
• 4 km fiber network with connector, splice and macro-bend events;
• Fiber rings in various lengths up to 1 km to simulate distribution and drop fibers;
• Jumper cables and bulkhead adapters to configure various PON architectures;
• Splitters, fiber rings, and fiber network are terminated with SC/APC connectors;

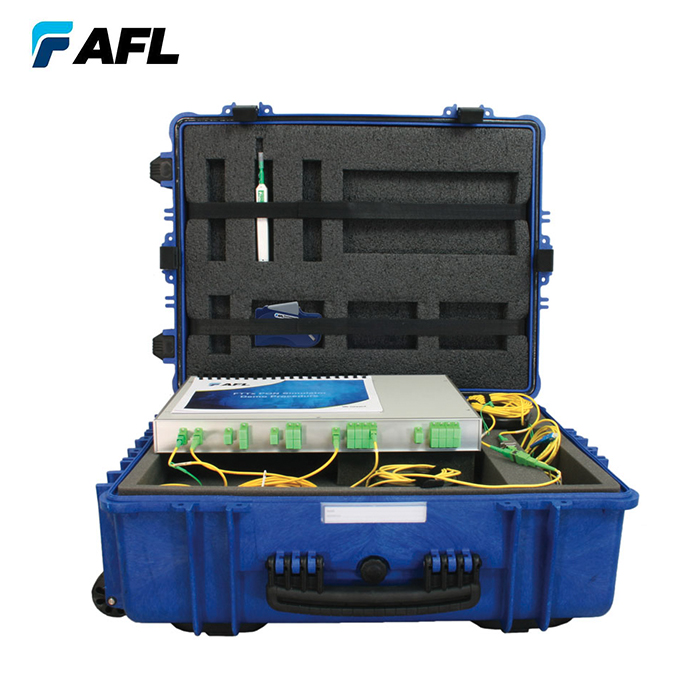

• Rolling, hard-shell carry case.

The FTTx PON Demo Kit is designed for a variety of users and applications, including:

• Network designers: Configure and test various PON architectures in a lab environment
• Fiber Optic installation teams and trainers: Develop, verify and practice PON test methods
• Equipment manufacturers: Test and verify FTTx PON equipment designs on various PON configurations
• Sales engineers: Enable field-portable demonstrations of FTTx PON network and test equipment.

FTTx PON Simulator

FEATURES:

• Detect multiple wavelengths automatically - NO setup required!
• Detects GPON, XGS-PON, and Video signals all at once
• Rugged and water resistant, IP54 rating
• Field-swappable connector adapters

APPLICATIONS:

• Detects and measures PON upstream and downstream signals
• PON network activation
• BPON, EPON, GPON, 10G-EPON, XG-PON, XGS-PON, Video network verification and troubleshooting
• Evaluate PON power level Pass/Fail based on limits

Order Information

FTTx PON Simulator kit includes:
(1) FTTx PON splitter box, (4) fiber rings, (3) SC/APC jumpers, (2) hybrid jumpers, (1) PON demo procedure, (1) carry case.
