OVERVIEW

AFL network simulators are custom-designed bench-top or rack mountable boxes intended to duplicate installed fiber optic networks. Network simulators may

be ordered with customer-specified lengths of multimode or single-mode fiber. Events such as connections, fusion splices, and mechanical splices can be added

at various points within the fiber to duplicate installed networks. A variety of changeable panel mounted connector types are available. The bench top models

can accommodate up to 15 km of fiber and the rack mountable cases can hold up to 100 km of fiber.

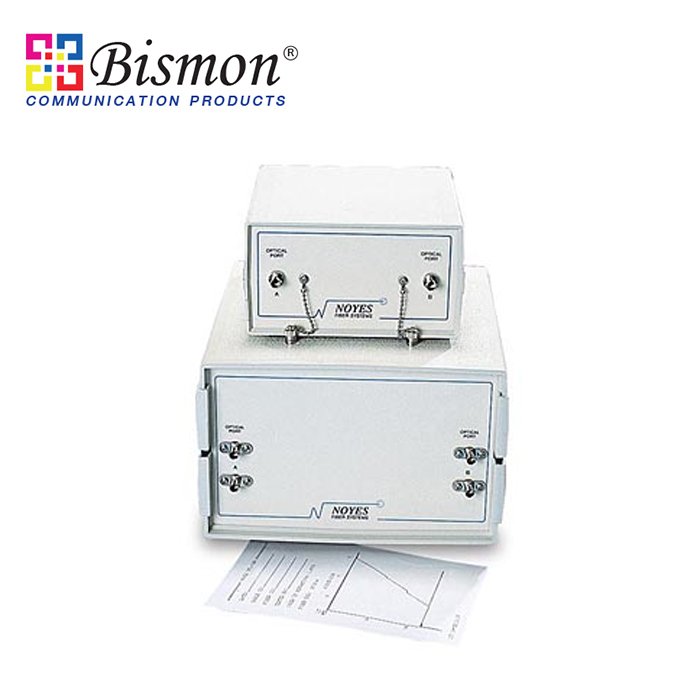

Each network simulator is housed in rugged field-portable case. The compact NS1 accommodates up to 3 km of fiber. The larger NS2 accommodates up to 15 km of optical fiber. Optional travel cases are available to accommodate single or multiple units along with accessory cables, tools, etc. Features: User-specified fiber type Custom designed lengths Mechanical or fusion splices available OTDR trace is provided SC, ST, FC, LC and other panel connectors are available Rugged, field portable
