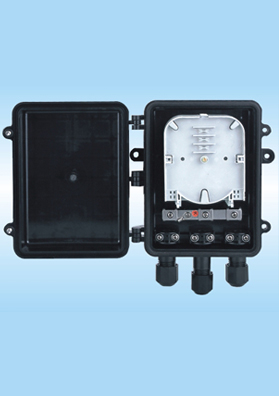

■ Outside dimension (LxWxH) : 250mm x 192mm x 89mm. ■B1-9001 is provided with 3 inlet/outlet ports which suit for single fiber cable at max. diameter 12mm respectively. And the elastic ring at diameter of 9.5mm is allowed to use inside these cable ports (Note: elastic ring at the diameter 9.5mm can shrink to 7mm). Please take away the end cap to the actual need (While getting through cables, please choose the corresponding plastic gasket at diameter matching the passed cable). ■The installation accessories provided with the FOSC: 2 pcs of special wrench, earthin wire, nylon tie, labeling paper, aerial hook or wall mounting fixe (one set should be selected), desiccant, 3 pcs of elastic ring at inner diameter of 9.5mm, 3 pcs of plastic gasket at inner diameter of 12.5mm. (please refer to the Installation Accessories). ■Accessories for customers’ selection: earthing deriving device, buffer tube for bunchy fiber 3 pcs of plastic gasket at inner diameter of 10.5mm (Please refer to the installation accessories).
