OVERVIEW

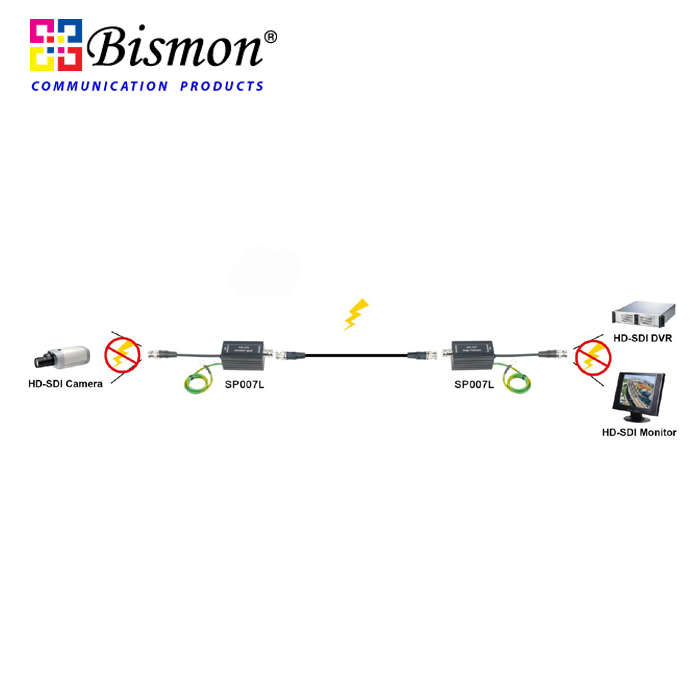

Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning-caused, high-frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera, etc -BNC male to BNC female.

Specifications:

•  Equipment Connector: BNC MALE (75 Ohms)

•  Cable Connector: BNC FEMALE (75 Ohms)

•  Transmission Rate: 1.485Gb/s (Max)

•  Insertion Loss: 0.7dB @ 1.5Gb/s

•  Resisting Surge: 8KV (Max)

•  Discharging Current: 10KA (Max)

•  Reaction Speed: <1nS

•  Dimensions: 75.5 * 25.4 * 25.4 (mm)

•  Shipping Weight: 68 (g)
