IP relay control with 3 channels and energy metering
Expert Net Control 2314-1 for more security and surveillance in IT infrastructure
- Demonstrably fewer and shorter outages of your critical IT and AV infrastructure
- More control through remote access to switchable relay outputs
- Detect AV and IT problems at an early stage: Proactive power and environment monitoring
- Increased energy efficiency (Green IT and AV): Reduction of electricity costs and CO2 emissions
Key Features
- Remote switching of 3 relay outputs
- Detailed energy measurement per output
- Connector for plug-and-play sensors
- Fast and easy mounting on DIN rail
- NTP function can be activated
- Special High-Inrush relays prevent sticking of relay contacts during witch on pulse peaks
----------------------------------------------------------------------------------------------------------------------

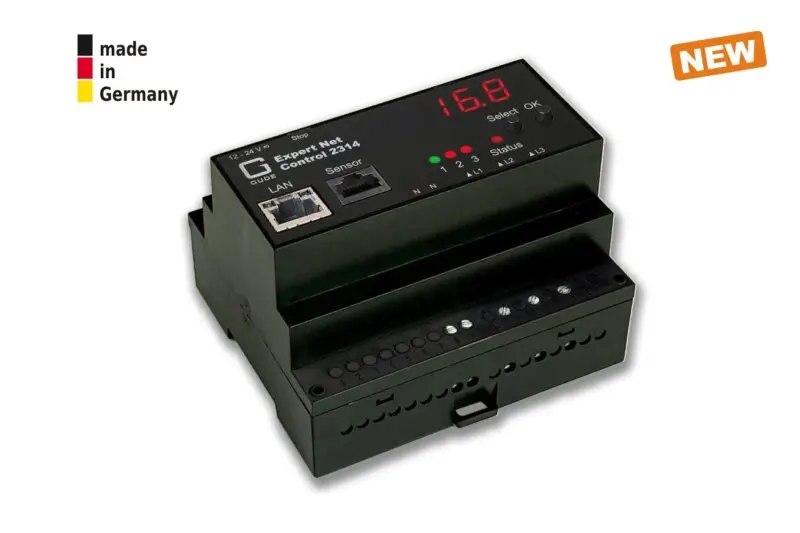

Expert Net Control 2314-1
เพื่อความปลอดภัยและการตรวจสอบที่เพิ่มขึ้นในโครงสร้างพื้นฐาน IT
- ลดจำนวนและระยะเวลาการหยุดทำงานของโครงสร้างพื้นฐาน IT และ AV ที่สำคัญของคุณได้อย่างพิสูจน์แล้ว
- ควบคุมได้มากขึ้นด้วยการเข้าถึงจากระยะไกลเพื่อสวิตช์รีเลย์เอาต์พุต
- ตรวจพบปัญหา AV และ IT ได้ตั้งแต่เนิ่น ๆ: ผ่านการตรวจสอบพลังงานและสภาพแวดล้อมเชิงรุก
- เพิ่มประสิทธิภาพการใช้พลังงาน (Green IT และ AV): ลดต้นทุนค่าไฟฟ้าและการปล่อยก๊าซ CO?
คุณสมบัติหลัก (Key Features)
- ควบคุมการสวิตช์รีเลย์เอาต์พุตจากระยะไกลได้ 3 ช่อง
- การวัดพลังงานอย่างละเอียดต่อเอาต์พุตแต่ละช่อง
- คอนเนคเตอร์สำหรับต่อกับ Plug-and-Play Sensors
- ติดตั้งง่ายและรวดเร็วบนราง DIN
- รองรับการใช้งานฟังก์ชัน NTP
- รีเลย์ชนิด High-Inrush พิเศษ ป้องกันหน้าสัมผัสรีเลย์ติดขัดระหว่างเกิดกระแสกระชากในช่วงเปิดเครื่อง



Technical Details
- Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
- Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
- LxWxH: 10.5 x 9 x 7 cm
- Weight: approx. 280 g
- Operating temperature: 0-50 °C
- Storage temperature: -20 – 70 °C
- Relative humidity: 0 – 95 % (non condensing)

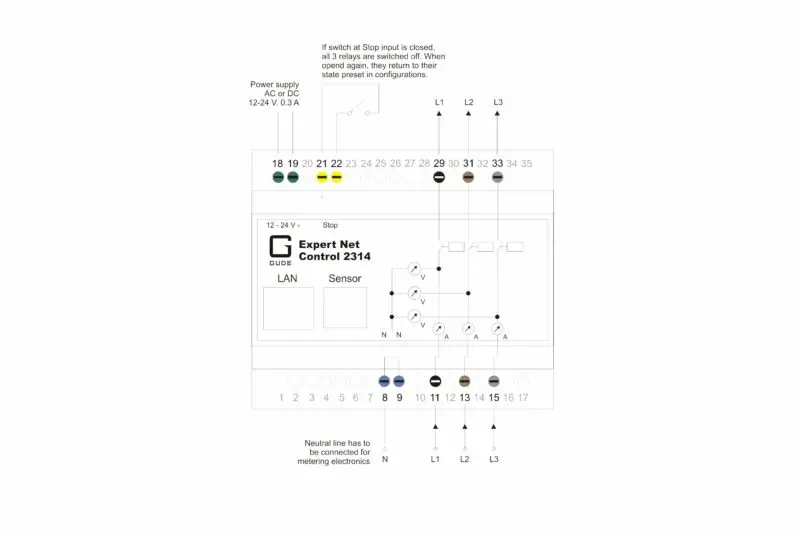

Electrical Connections
- Terminal clamps for power supply with 12-24 V AC/DC voltage
- 3 switchable outputs (industrial clamp, 3 fold)
- 1 sensor connector (RJ45) for plug-and-play sensor
- 1 Ethernet connector RJ45 (10/100 Mbit/s)
Switching functions
- 3 switchable, potential-free relay outputs with 16 A switching capacity
- Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface
- Automatic switching of relay outputs depending on sensor thresholds or inputs possible
- Programmable switch-on/switch-off sequence
- Simultaneous switching on of several switching outputs is prevented by automatic latency of 1 second
- Output states are indicated by two-color LEDs on the front panel
- Relays have high contact reliability even with very small loads
- Self-healing function thanks to 3-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary
Metering functions
- Power consumption metering (kwH) with 2 energy counters per output: one counter counts consistently, the other counter is resettable
- Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
Security
- 1 connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure
- Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
- Encrypted e-mails (SSL, STARTTLS)
- Access protection by IP access control
- Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
- Password protected access
Operation

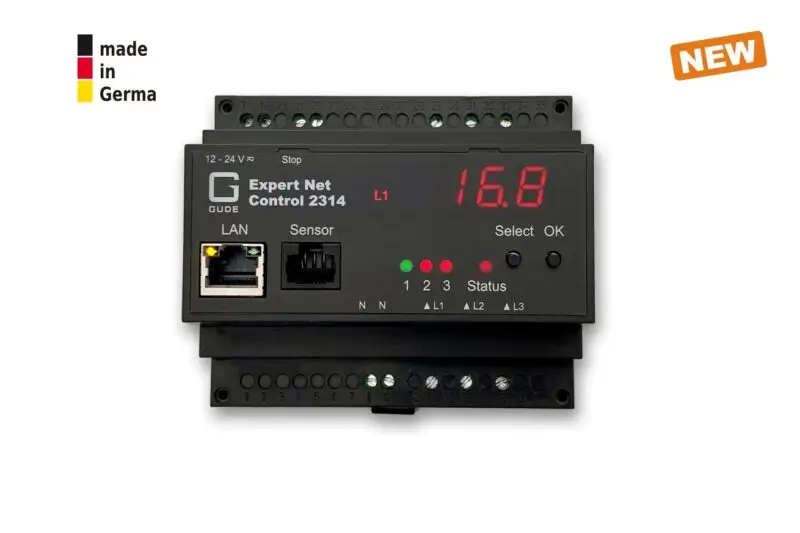

- Easy-to-read LED display for displaying total current, IP address and sensor values
- Firmware update via Ethernet during operation (no restart required)
- Simple and flexible configuration via web browser, Windows or Linux program
- Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
- Rapid commissioning thanks to free and reliable drivers from our technology partners
