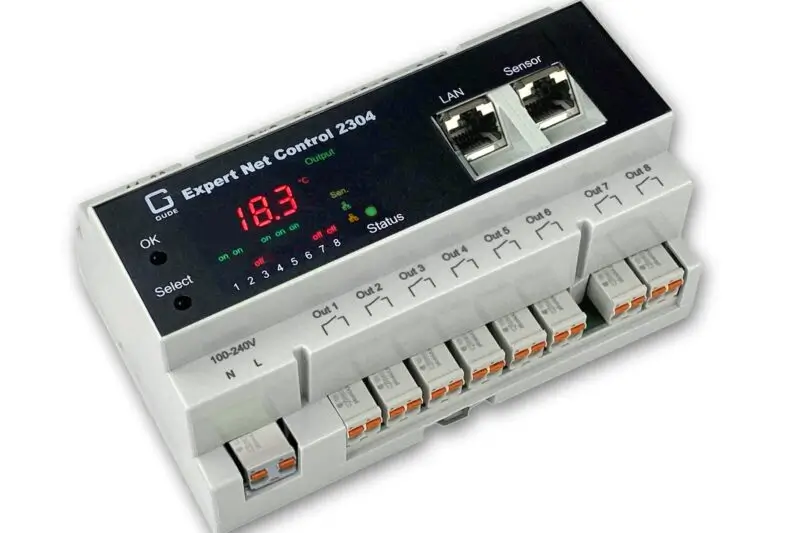

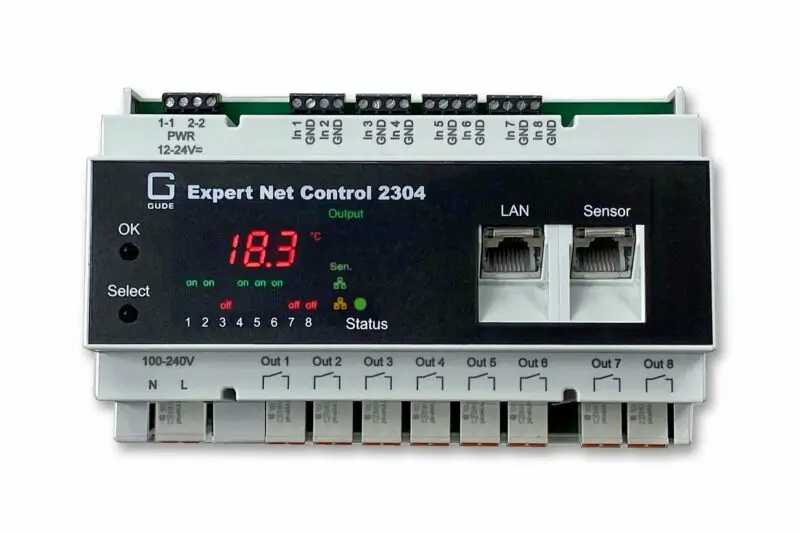

Technical Details

1. Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
2. Housing form: for mounting rail with top hat profile
3. LxHxD: 143 x 65 x 90 mm
4. Weight: approx. 400 g
5. Operating temperature: 0-45 °C
6. Storage temperature: -20 – 70 °C
7. Relative humidity: 0 – 95 % (non condensing)

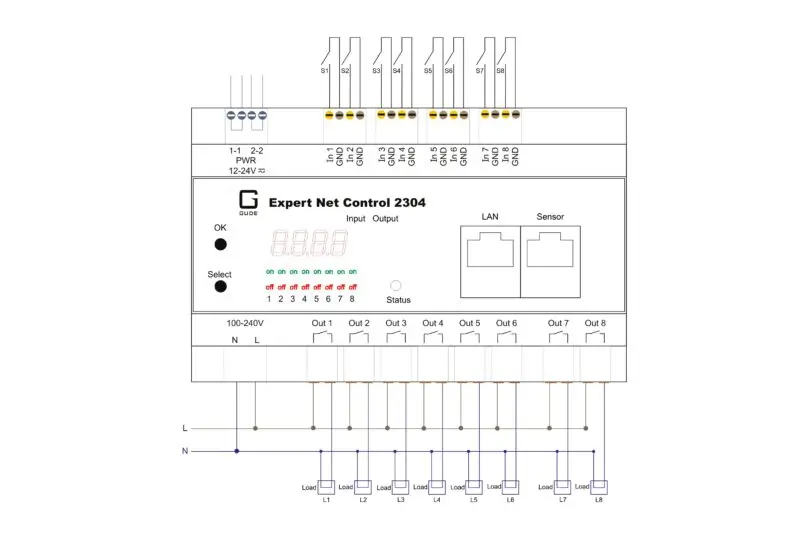

Electrical Connections

1. 1 Mains connection with 230 V AC or 30 V DC (terminal clamps)
2. 8 switching outputs (terminal clamps)
3. 8 passive signal inputs (terminal clamps)
4. 1 Ethernet connector RJ45 (10/100 Mbit/s)
5. 1 connector (RJ45) for plug-&-play sensors

Switching function

1. 8 switchable, potential-free relay outputs with 16 A switching capacity
2. Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface
3. Programmable on/off sequences for remote reboots (Remote Reboot)
4. Power ports can be switched when preset sensor thresholds are exceeded
5. Self-healing function thanks to 8-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary
6. Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure
7. Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second

Metering function

1. 1 connection for combined plug-&-play sensors (temperature, humidity and air pressure) to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure

Security

1. Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
2. Encrypted e-mails (SSL, STARTTLS)
3. Access protection by IP access control
4. Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
5. Password protected access
6. Beeper for audible alarm when sensor limits are exceeded/deceeded

Operation

1. Easy-to-read LED display for displaying total current, IP address and sensor values
2. Firmware update via Ethernet during operation (no restart required)
3. Simple and flexible configuration via web browser, Windows or Linux program
4. Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
5. Rapid commissioning thanks to free and reliable drivers from our technology partners
