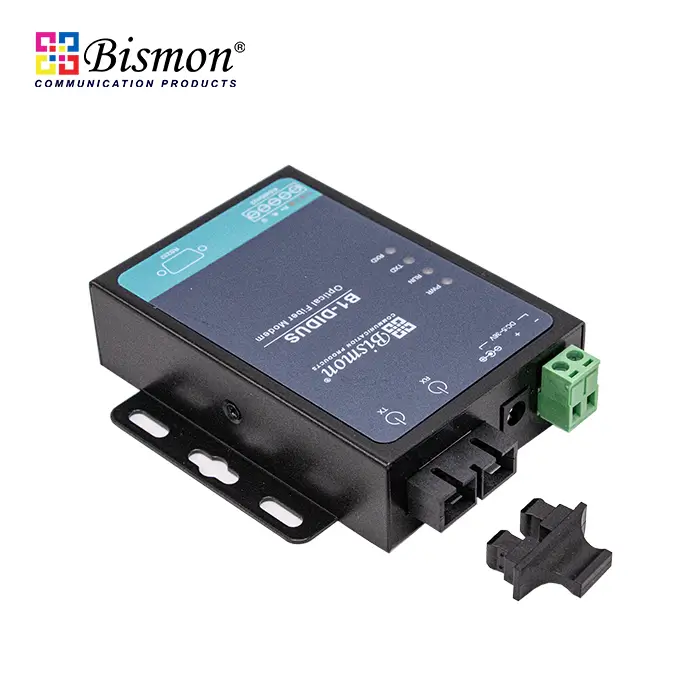

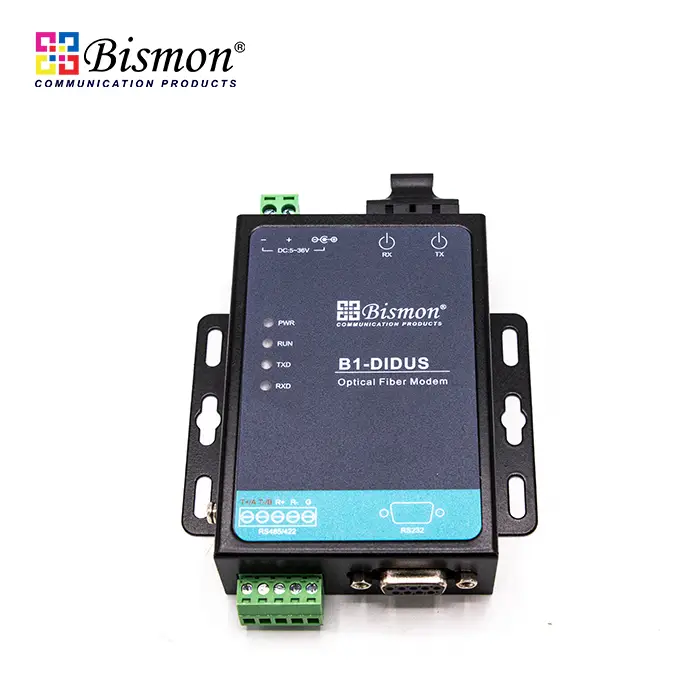

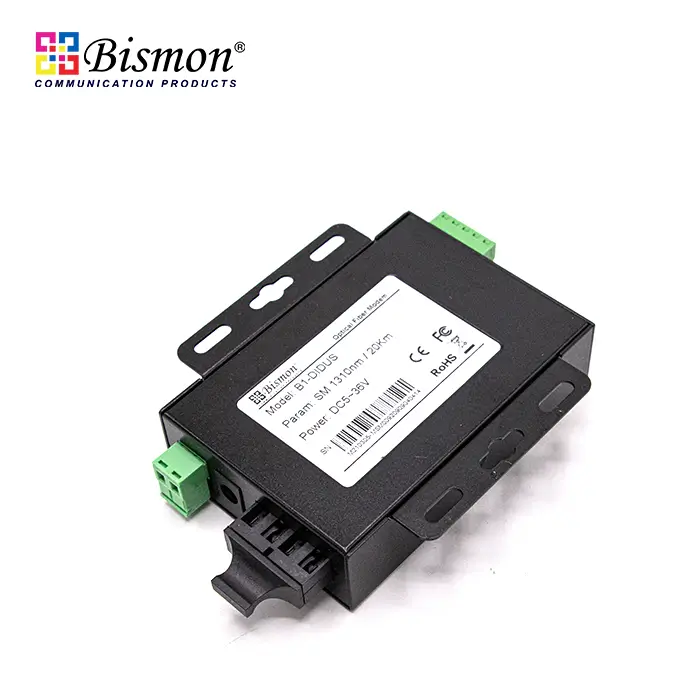

Industrial converter RS485 422 232 to fiber optic Single-mode(20KM), SC Connector, Dual Core


Part number : B1-DIDUS-20

Brand : BISMON

Price : 5,136.00 Baht
(Dealer price can log-in/ Exclude Vat)

download pdf



OVERVIEW



RS232/RS485/RS422 Serial To Media Converter Single-mode fiber optic: 1310nm: 20km ตัวแปลงสัญญาณในระบบ Serial asynchronous แบบ RS232/RS485/RS422 Protocol หรือ ระบบ Fiber modem มีความเร็วในการส่งผ่านข้อมูลที่ 300-115200bps ที่ interface แบบ RS232 และ ความเร็วที่1Mbps ที่ interface แบบ RS485 หรือ RS422 โดยใช้สาย fiber optic 2 core(Dual) ทั้งชนิด Multi-modeและ Single-mode. เป็น media converter แบบ Industrial ทำงานที่อุณภูมิ -40 ถึง 85 องศาเซลเซียส, Serial port Line: RS232: 15M@9600bps, RS422/RS485: 1.2km@9600bbpsOption: สามารถสั่ง 40/60/80km

SPECIFICATION

Technical parameters
Standard Compliant with EIA RS-232, RS-485, RS-422
Interface
Interface form Serial Port: Electrical characteristics, Meet RS-232/RS-422/RS-485 Physical characteristics,
Industrial terminal block
  Optical interface: Single multi-mode optional, SC/ST/FC optional
Communication rate
Baud Rate  300bps~115.2Kbps, rate-adaptive signal
LEDs
Power indicator  POW
Data transmission indicator light  TX, RX
Power
Power Supply  DC5 - 30V, AC85 - 265V/DC110 - 370V
Interface  BNC coaxial input, industrial terminal block
Power  <1W
Overload protection  Support
Lightning protection  600W/ms anti-lightning strike
Static protection  15kv antistatic
Physical Characteristics
Shell  Aluminum housing
Dimension  90mm×30mm×70mm (Length × height × width) (MWF-201-K) ( Bare board plug-in type, used with MR16)
  110mm×26mm×72mm (Length × height × width) (MWF-201-G) (Shell: Din rail mounted)
  78mm×25mm×85mm (Length × height × width) (MWF-201) (Desktop DC power supply)
  108mm×34mm×126mm (Length × height × width) (MWF-201-KG) (Metal din rail mounted)
  100mm×36mm×105mm (Length × height × width) (MWF-201-A220) (Desktop AC power)
Weight  0.4kg
Transmission distance
Serial port line  RS-232,15m@9600bps
  RS-422/RS-485, 1.2km@9600bps
Multi-mode fiber  1310nm, 2km
Single-mode fiber  1310nm, 20km/40km
  1310nm, 60km/80km
Working Environment
Operating Temperature  -40 to 85C
Storage temperature  -40 to 85C
Ambient Humidity  5% ~ 95%
Warranty
Warranty  2 Years
Certification
Certification
