Module Card SM 20Km 1310nm,10/100Mbps ,SC Port for Chassis


Part number : B1-3301C

Brand : BISMON

Price : 1,936.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

Module Card SM 20Km 1310nm,10/100Mbps, SC Port for Chassis

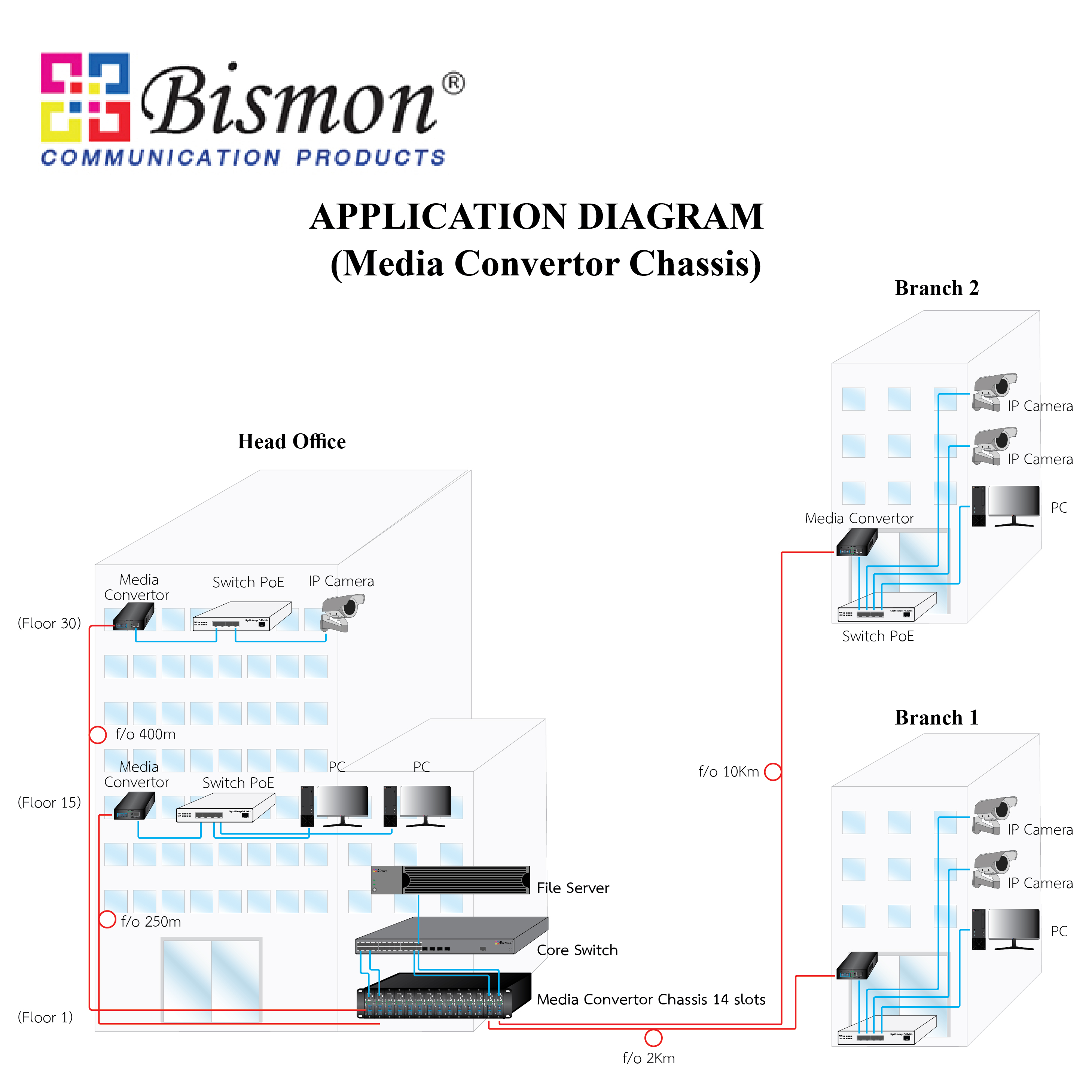

•  Card-type or stand-alone, apply in centralized management 2U aluminum chassis
•  Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism
•  The cache is 512KB, MAC address table is 4KB
•  Ethernet 10Base-T or 100Base-Tx to the 100Base-Fx fiber media converter
•  Support IEEE 802.3u, IEEE 802.3x, IEEE 802.1d
•  Supports full-duplex and half-duplex backpressure flow control work and with auto-negotiation capability
•  TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)
•  Provide remote link loss diagnostics, TP port and FX port link connection diagnostic, dynamic data transmission, full / half-duplex, rate indicator, Auto MDI/MDIX
•  Provide 1 RJ-45 port, and support automatically cross-recognition, connected with a switch, set line
•  FX port with the good feature, strong compatibility, and high reliability, can be well compatible with Cisco, Nortel, 3COM etc
•  Excellent after-sales service, providing three years of quality assurance and life-long maintenance services
Specification

Product Name 10/100M Single Mode Single Fiber Card-type Media Converter
Model B1-3301C
Ports 1x copper cable RJ45 port(Fast Ethernet TX) +1x fiber SC port(Fast Ethernet FX)
Bandwidth Fiber Bandwidth:155Mbps; Ethernet Bandwidth: 1.6Gbps (non-blocking)
MTBF 190,000 hours (about 21 years)
Forwarding Mode Store and forward
Network Protocol IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI;
Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI
Optical Fiber Single mode dual fiber, SC fiber port(100M-FX)
Optical Distance 20km
Wavelength 1310,1550nm
LED Display System, Power, Connecting, working status
Power Consumption 2.5W
Dimensions (L x W x H) 11.6×8.5×2.5cm
Working Temperature -20°- 75°C
Certification UL, CE, FCC, RoHs
Warranty 2 year warranty
