OPM Optical Power Meter

Dimension OPM series modules include general-purpose series, high-speed series, high-power series, high-sensitivity series and external detector series. All modules are compatible with Dimension ALPHA and OMEGA universal optical test platforms.Through the platform based test solution we can provide faster, more accurate and more flexible power measurement solutions, including the measurement of weak signal and the detection of tiny signal jump, as well as the accurate measurement of ultra-high light power.

For user convenience and maximum flexibility, Dimension provides a wealth of interchangeable detector adapters (Applicable to various fiber connector types, as detailed in the attached table below), as well as an fiber clamps that allow the bare fiber power measurement. The product comes with FC adapters in the form of a standard accessory, and also provides an external detector extension cable for remote head user selection.

High-sensitivity series

Key Feature

• Wavelength range?850nm~1650nm

• Up to -90dbm weak signal detection and wide dynamic range (100dB)

• User-configurable trigger input and analog output

• Compatible with single-mode and multimode fiber

Applications

• Optical weak signal power measurement field

• Laboratory application

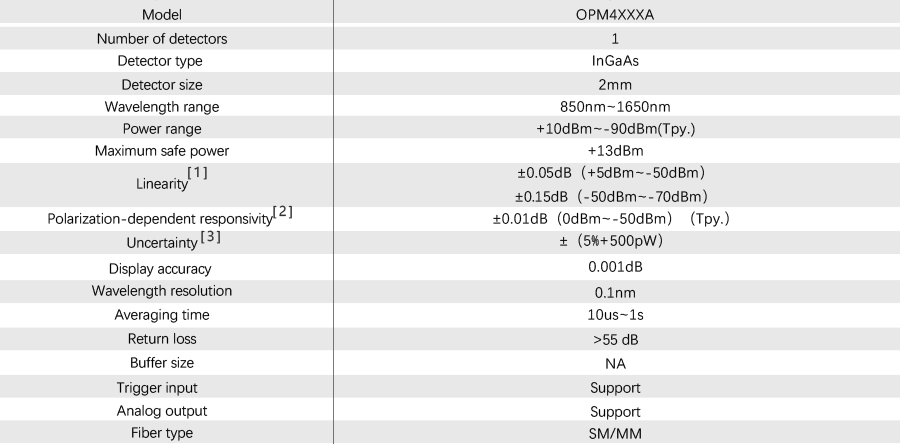

Remark

(1) ot contain noise and drift, CW model, 1000 to 1600 nm.

(2) The temperature is 23 °C ± 1 °C, using a non-angle FC connector, 1550nm wavelength, the power is constant

(3) The temperature is 23 °C ± 1 °C, using a non-angle FC connector, 1000 to 1640 nm wavelength, When the wavelength is less than 1000 nm, the uncertainty of 1% is increased, and when the wavelength exceeds 1640 nm, the uncertainty is increased by 6%.

(4) The test fiber type was standard SM 9/125 fiber and MM 62.5/125 fiber

Ordering Information
