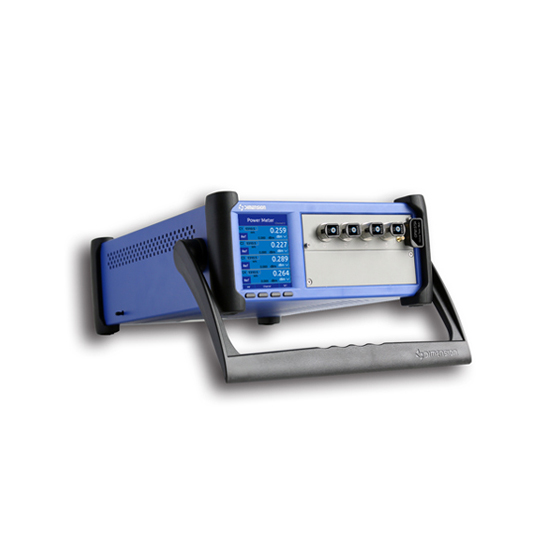

OPM Optical Power Meter

Dimension OPM series modules include general-purpose series, high-speed series, high-power series, high-sensitivity series and external detector series. All modules are compatible with Dimension ALPHA and OMEGA universal optical test platforms.Through the platform based test solution we can provide faster, more accurate and more flexible power measurement solutions, including the measurement of weak signal and the detection of tiny signal jump, as well as the accurate measurement of ultra-high light power.

For user convenience and maximum flexibility, Dimension provides a wealth of interchangeable detector adapters (Applicable to various fiber connector types, as detailed in the attached table below), as well as an fiber clamps that allow the bare fiber power measurement. The product comes with FC adapters in the form of a standard accessory, and also provides an external detector extension cable for remote head user selection.

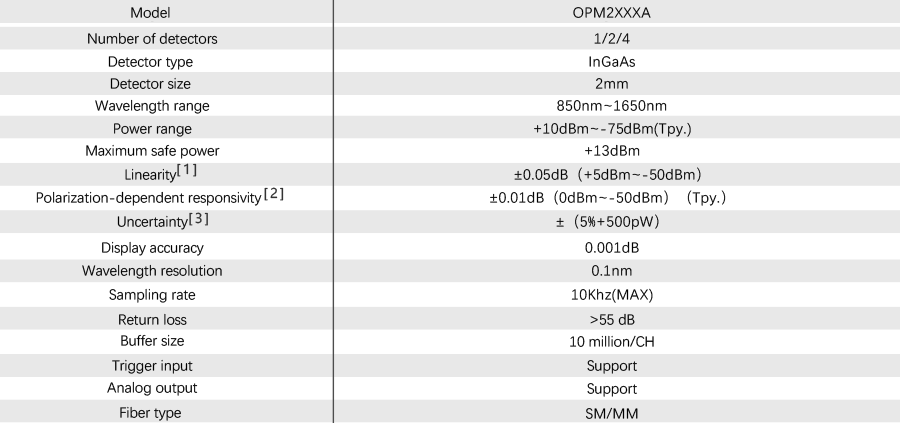

High-Speed series

The high-speed OPM module designs and adopts the high-speed sampling circuit, in high-speed mode, can provide 10 KHZ(MAX) power data acquisition speed, and 10 million measured data buffer size (per channel). Cooperate with the Dimension SLS light source, It provides an efficient and low-cost test solution for the fast scan test of passive devices.

Key Feature

• One, two or four detectors on a single module

• Wavelength range?850nm~1650nm

• Up to 10 million measured data buffer size (per channel)

• Provide 10 KHZ(MAX) power data acquisition speed

• User-configurable trigger input and analog output

• Compatible with single-mode and multimode fiber

Applications

• Optical devices power high-speed measurement

• Manufacture automated power high-speed measurement

• Laboratory application

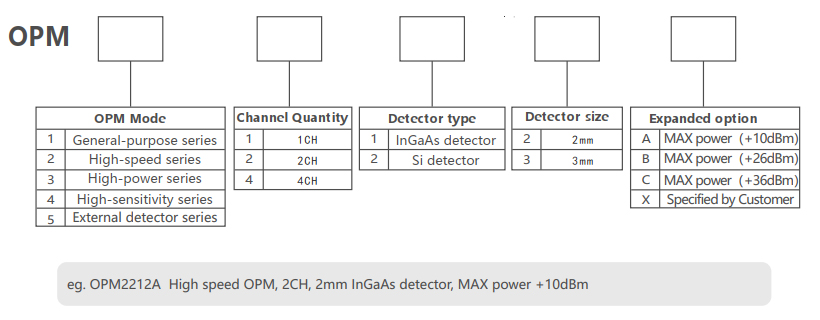

Ordering Information
