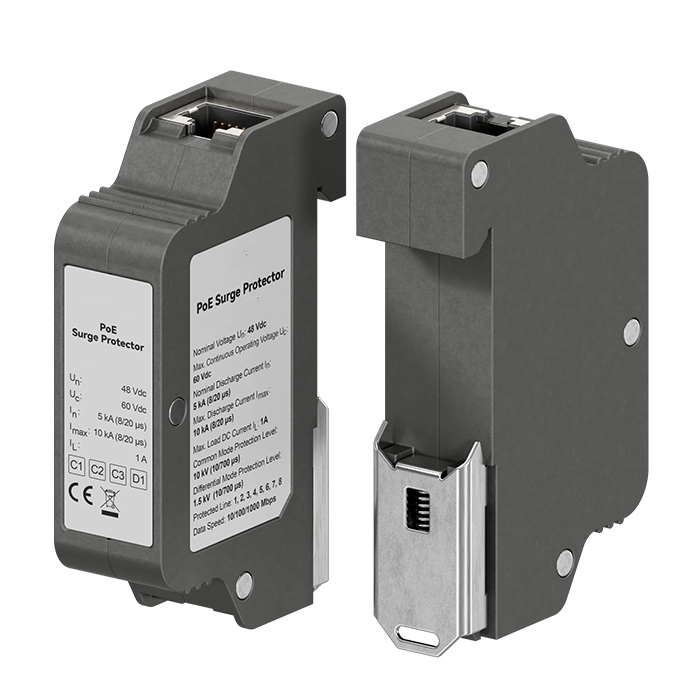

The DT-CAT6-DIN is a high-performance Surge Protective Device (SPD) specifically designed to safeguard sensitive network equipment from transient overvoltages and lightning strikes. It is engineered to support high-speed data transmission up to Gigabit Ethernet speeds while providing robust electrical protection for Power over Ethernet (PoE) applications. This device is typically installed on a DIN rail, making it ideal for industrial control panels and structured cabling environments. It is compatible with a wide range of hardware, including IP cameras, wireless access points, VoIP phones, and network switches. By diverting harmful electrical surges to the ground, it ensures the longevity and reliability of your critical network infrastructure.

Main Specifications

-Model: B1-DT-CAT6-DIN

-Standard Compliance: Class II / Type 2 according to IEC/EN 61643-21.

• -Voltage Ratings: * Nominal Voltage ($U_n$): 48V

  -Max Continuous Operating Voltage ($U_c$): 60V DC / 34V AC
• -PoE Support: 57V DC (Pair-Pair)
• -Current Capacity: Supports nominal current ($I_L$) of 1A for 2 pairs and 2A for 4 pairs.
• -Discharge Capacities:
• -Lightning Impulse ($I_{imp}$): 0.5kA (10/350 μs)

  • -Total Nominal Discharge ($I_n$): 10kA (8/20 μs)

  • -Line to Ground ($I_n$): 2.5kA

  • -Line to Line / PoE ($I_n$): 150A

• -Data Performance: Supports data speeds of 10/100/1000 Mbps (Gigabit Ethernet).

• -Installation: Designed for DIN rail mounting, which also serves as the earthing connection.
