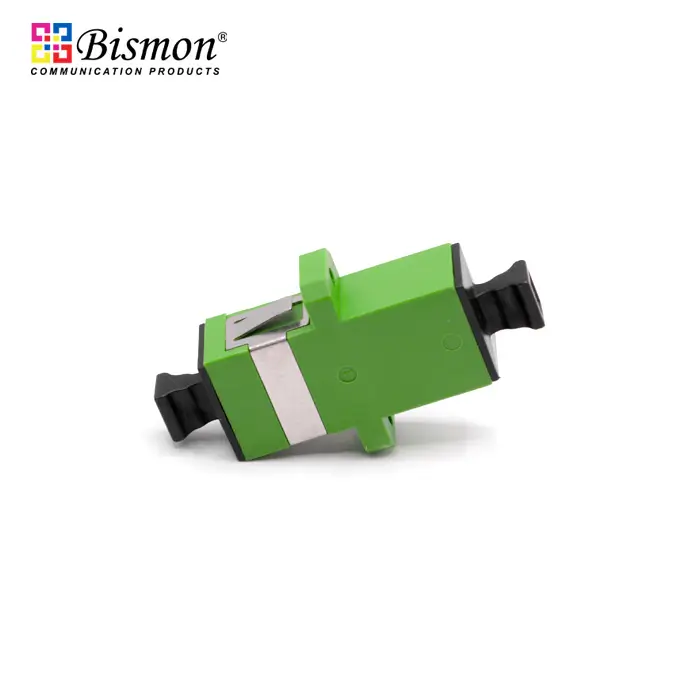

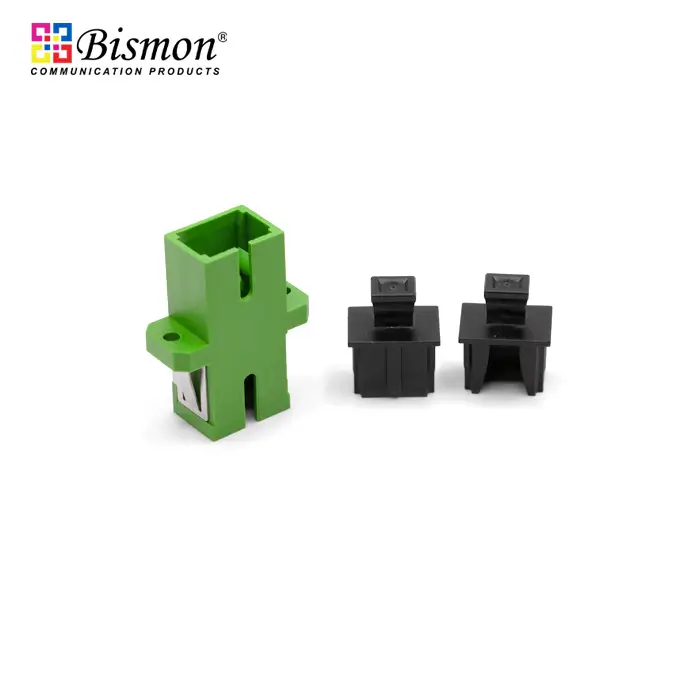

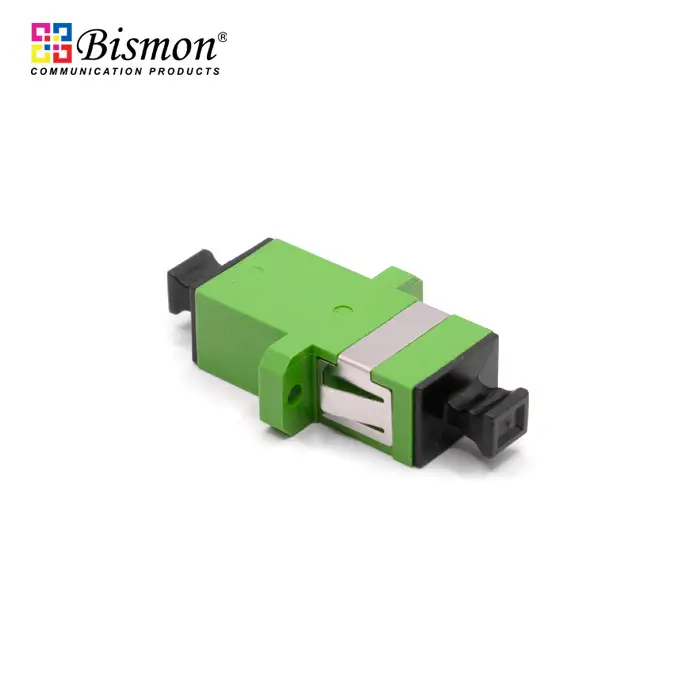

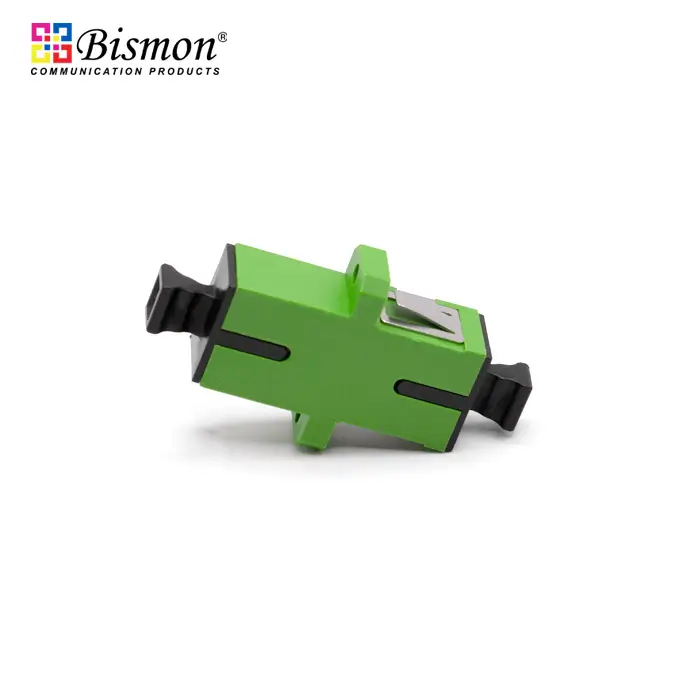

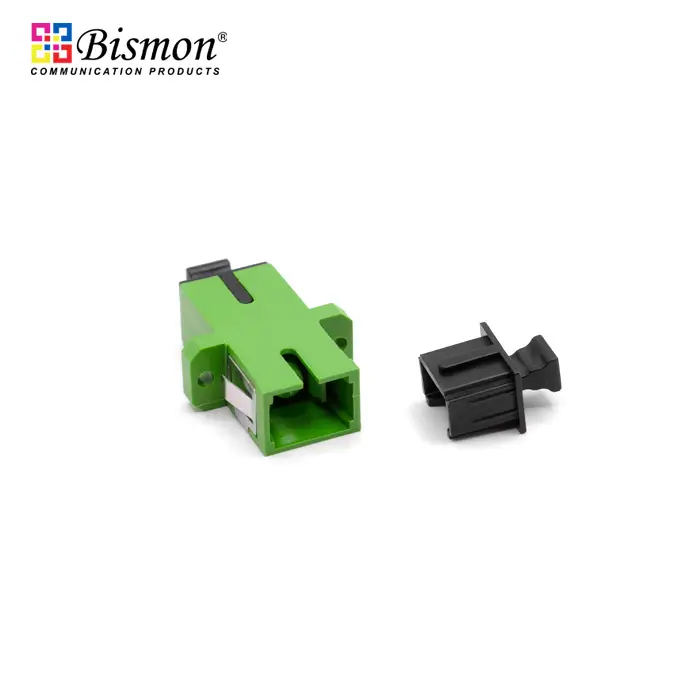

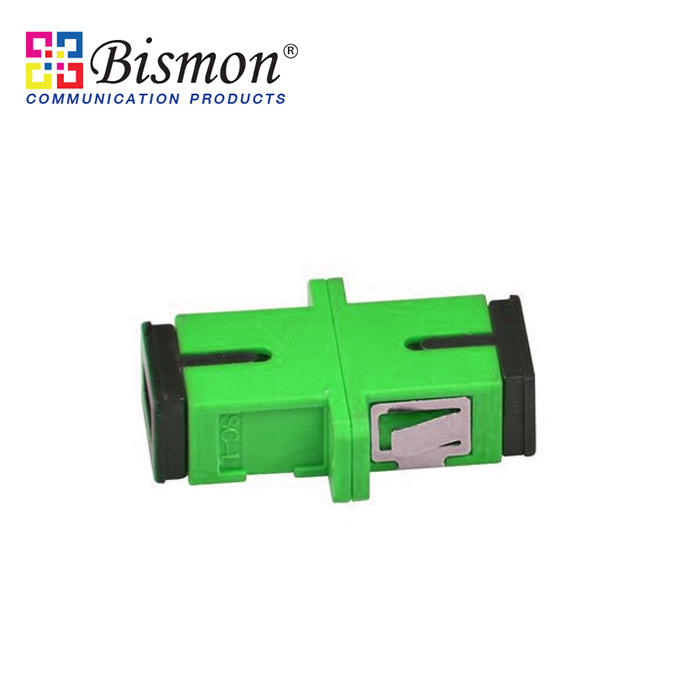

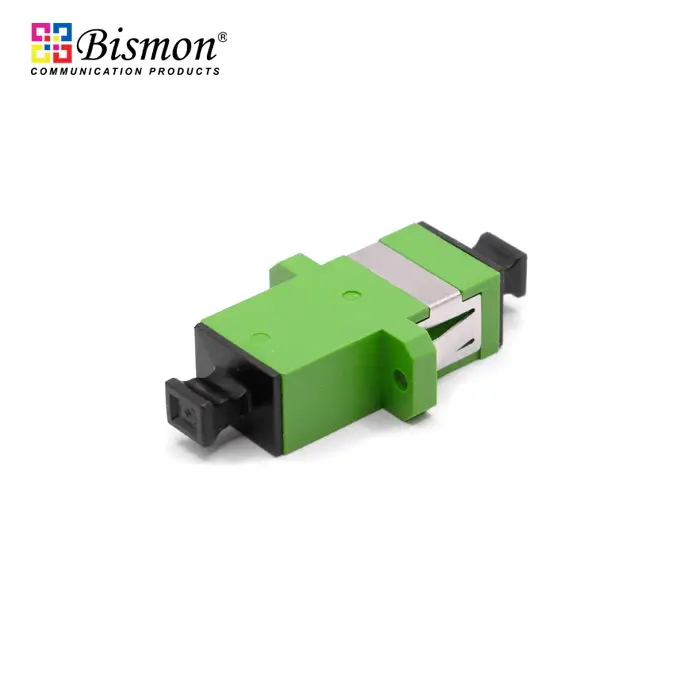

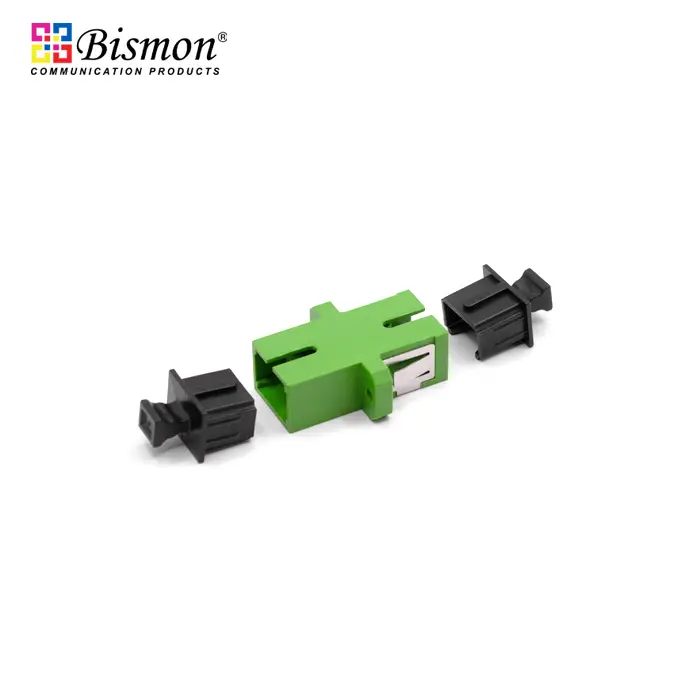

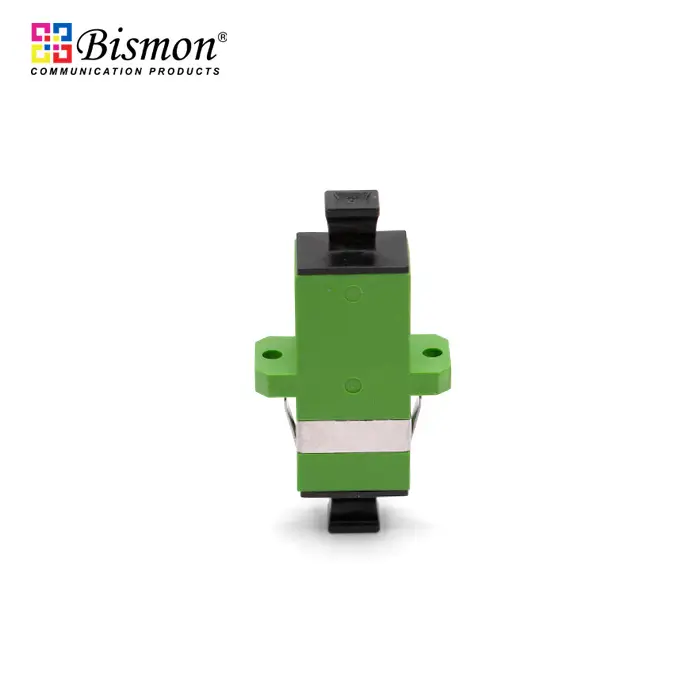

Name: SC-Adaptor APC Polymer Housing, Zirconia Simplex-Type
Brand: Bismon: Fiber Adaptor
SKU: B1ASSCSAPC
Price: 36.00 THB
Availability: InStock

SC-Adaptor APC Polymer Housing, Zirconia Simplex-Type

▸ คำอธิบายภาษาไทย
SC-Adaptor APC เป็นตัวเชื่อมต่อไฟเบอร์ออปติกแบบแอดัปเตอร์สำหรับระบบ FTTH และ FTTB ที่ออกแบบแบบชิ้นเดียว (One-Piece Type) มีลักษณะแบบแฟลนจ์เลส (ไม่มีขอบยึด) และใช้ถ้วยจัดแนวแบบเซอร์โคเนีย ซึ่งช่วยให้การเชื่อมต่อ SC/APC มีความแม่นยำและเสถียรสูงสุด ผลิตภัณฑ์นี้เหมาะสำหรับการต่อเชื่อมสายแพทช์ไฟเบอร์สายเดี่ยวได้อย่างรวดเร็วและมีคุณภาพในงานติดตั้งใน

Part number : B1-ASSCS-APC

Brand : Bismon: Fiber Adaptor

Price : 36.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

Product Description

FTTH FTTB Flangeless SC/APC Simplex Adapter Fiber Optic Single-mode One-Piece Type.

The One Piece Type Flangeless SC/APC Simplex Fiber Adatper Adapter This SC/APC Simplex Adapter allows you to patch together SC/APC connectors or SC/APC fiber patch cables quickly. The SC APC coupler is particularly suitable to connect two single fiber SCs for a fast, precisely, quality field connection. The SC/ APC adapters feature zirconia ceramic alignment sleeves which provide precision mating for singlemode applications. Detailed Product Description:
Product Name	SC/APC Simplex Fiber Optic Adapter	Color	Green color
Mode Type	Singlemode	Insertion Loss	≤0.2dB
Sleeve Pull Force	2-5.9N	Durability	≤0.2dB( 500 Times)
Operating Temp.	-40?? + 80?	Standards	IEC61754-4-2013 / IEC613000

Environmental and Mechanism:

Properties	Test Condition	Conformance	Test Result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	500 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-12	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-6	≤0.2dB
Temperature Cycling	40ºC to +85ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%RH, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

Features:

> The adapters are comply with IEC61754-4

> Compatible with standard SC connectors

> All materials compliant with RoHS/REACH
> 100% Optic test (Insertion Loss)
> Ceramic sleeve tube
> Accurate external size
> Individually packaged

Fiber Optic Adapter Application:

> Telecom, Access Network

> Optical Fiber CATV

> Terminal of the Devices and Multimedia

> Testing and Medical Devices

> Optical Fiber LAN and Access Network

Detail Information
Product Name:	SC/APC Simplex Fiber Optic Adapter	Color:	Green color
Mode Type:	Singlemode	Insertion Loss:	≤0.2dB
Durability:	≤0.1dB( 500 Times)	Sleeve Pull Force:	2-5.9N
Operating Temp.:	-40??+80?	Storage Temp.:	-40??+80?
Meeting Standards:	IEC61754-4-2013 / IEC613000	Certification:	ISO9001
