Product Description

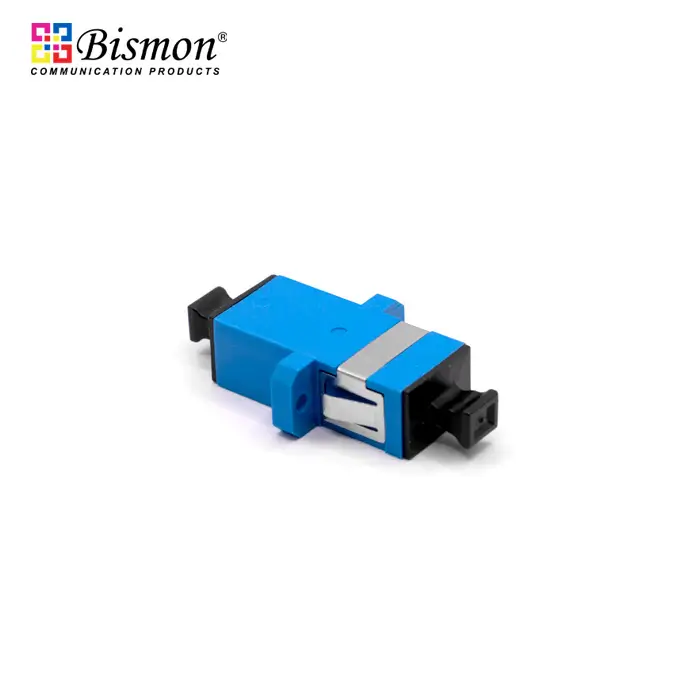

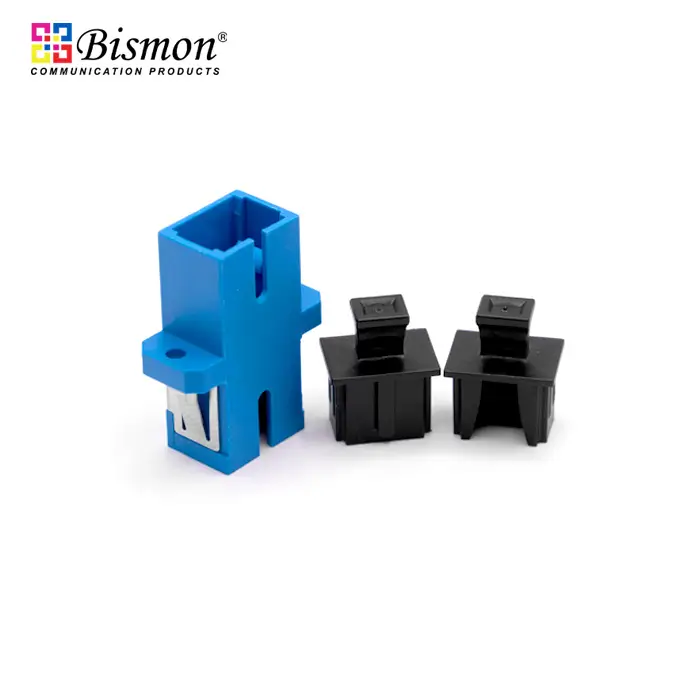

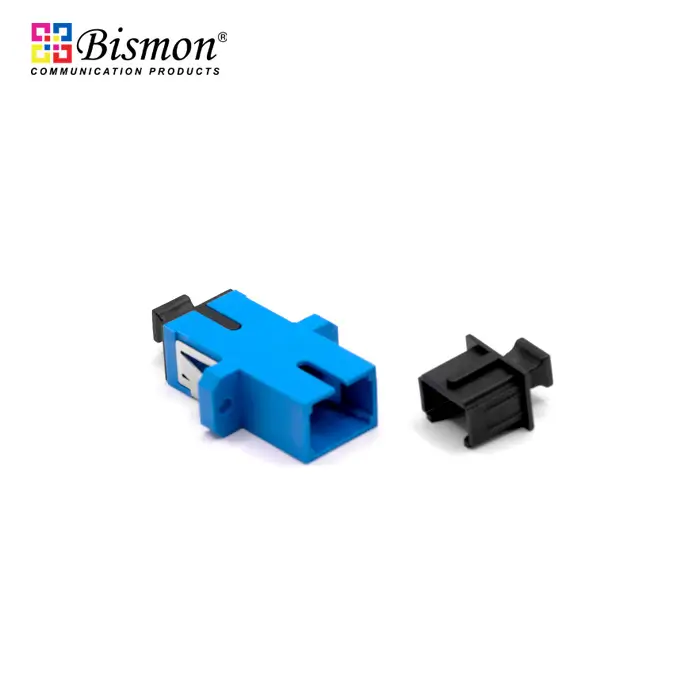

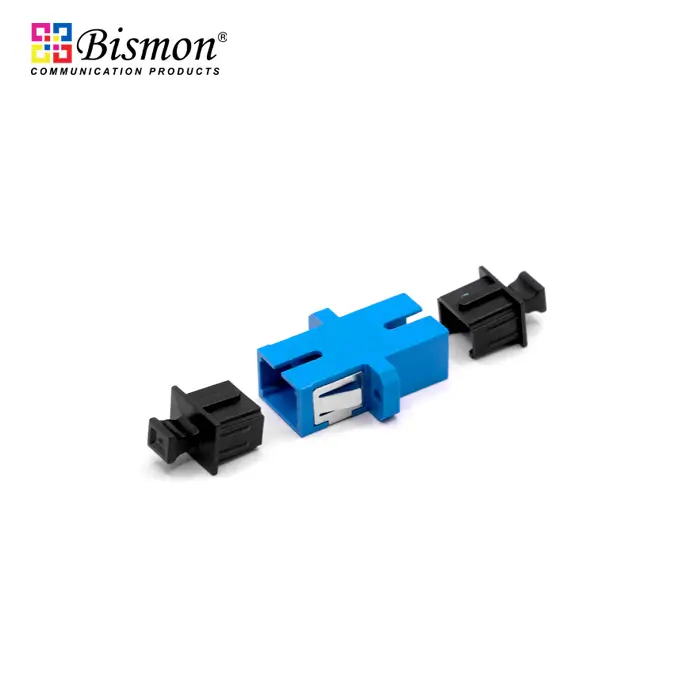

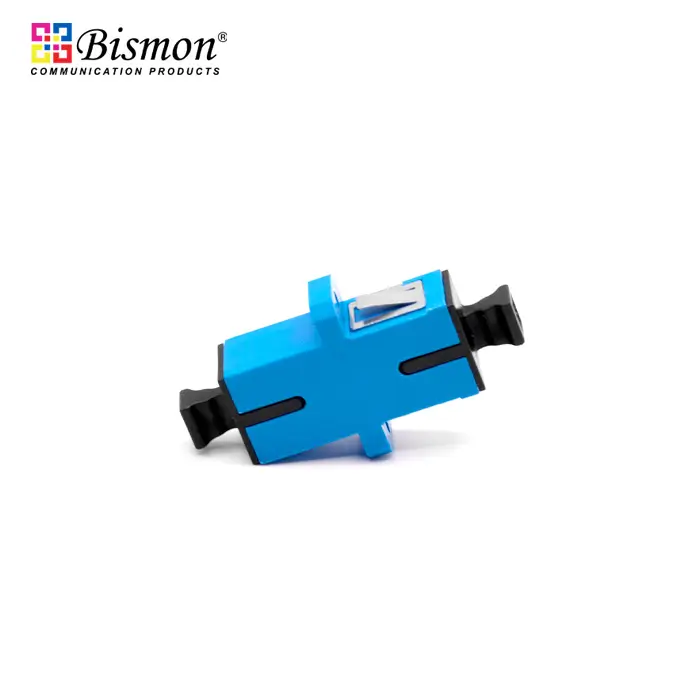

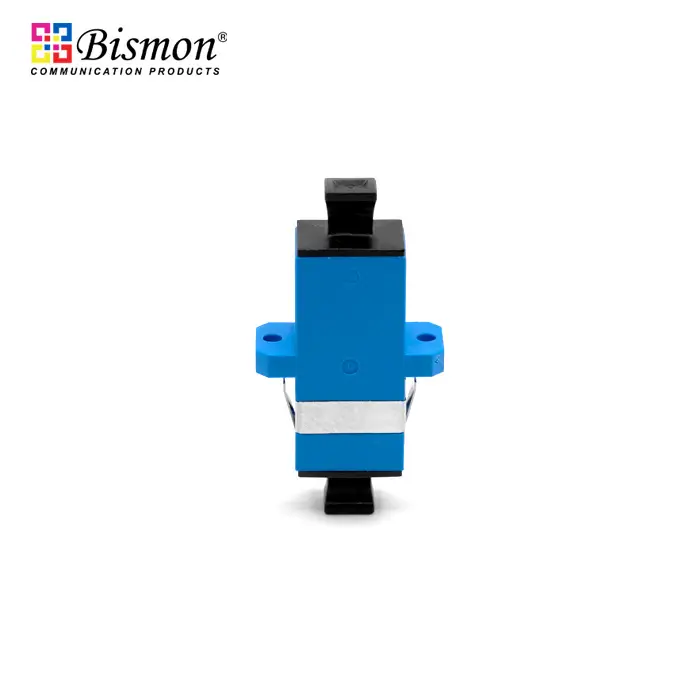

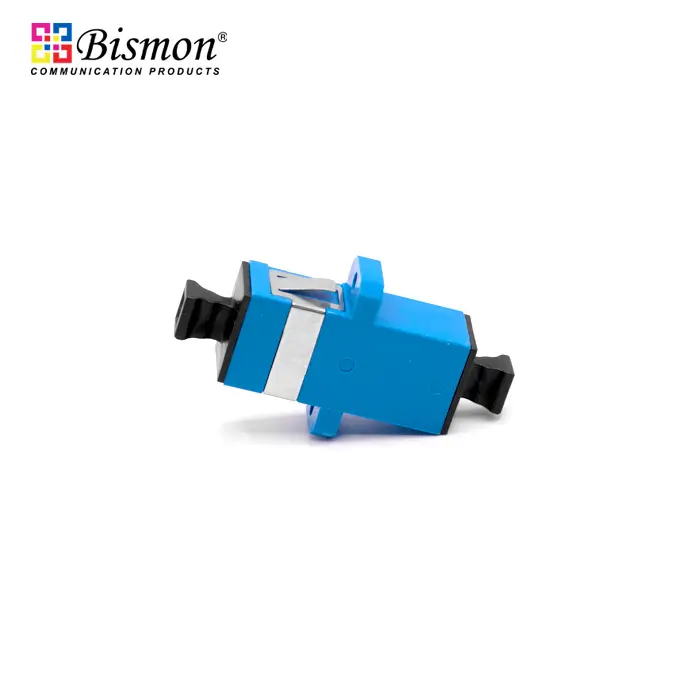

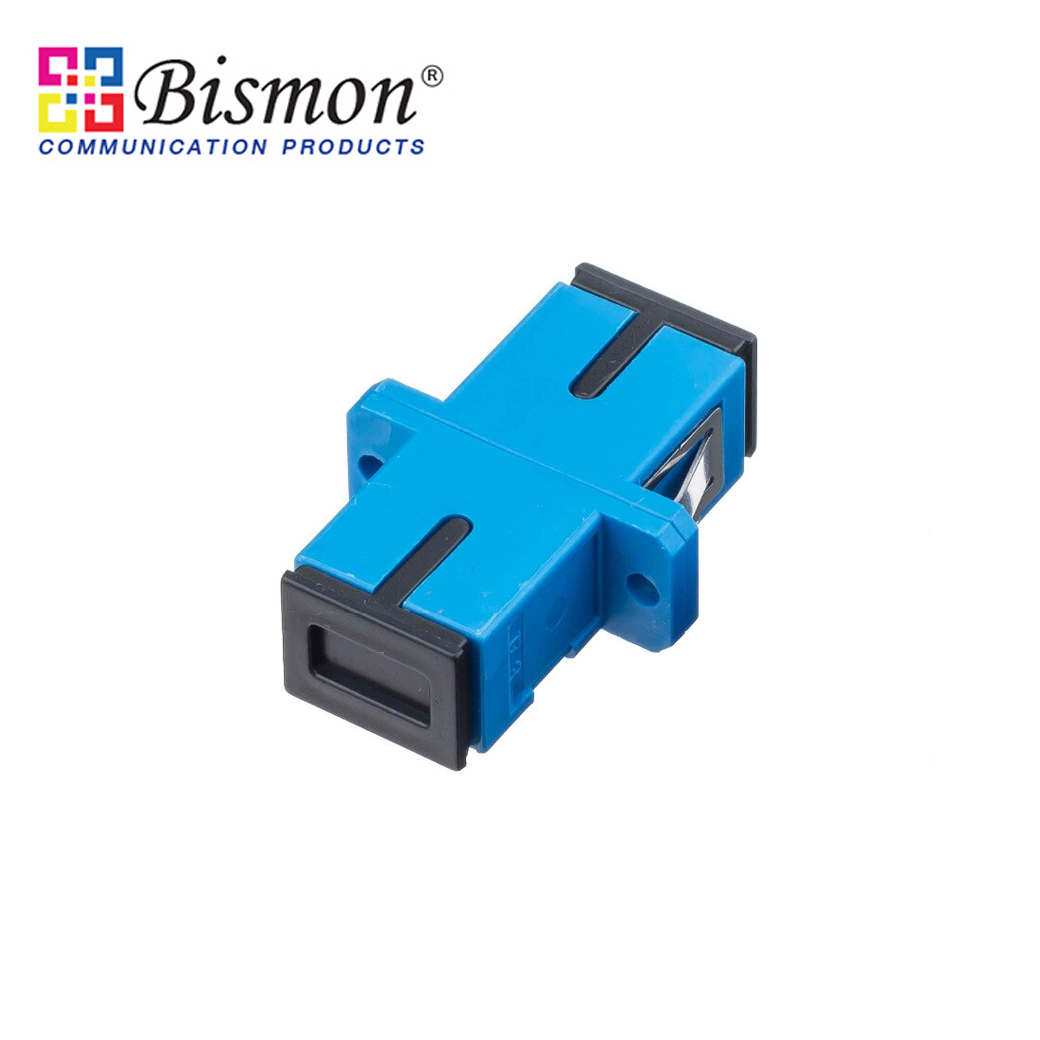

FTTH FTTB Flangeless SC/UPC Simplex Adapter Fiber Optic Single-mode One-Piece Type.
The One Piece Type Flangeless SC Simplex Fiber Adatper Adapter
Hight Light: This product with good performerce laser proof with innner shutter
Detailed Product Description:
|
Product Name
|
SC Simplex Fiber Optic Adapter
|
Color
|
Blue
|
Mode Type
|
Singlemode, Multimode
|
Insertion Loss
|
≤0.2dB
|
Sleeve Pull Force
|
2-5.9N
|
Durability
|
≤0.2dB( 500 Times)
|
Operating Temp.
|
-40?? + 80?
|
Standards
|
IEC61754-4-2013 / IEC613000
|
Environmental and Mechanism:
Properties
|
Test Condition
|
Conformance
|
Test Result
|
Vibration
|
10-55Hz, 1.5mm, 60min
|
IEC61300-2-1
|
≤0.2dB
|
Mating Durability
|
500 Mating, clean every 25 mating.
|
IEC61300-2-2
|
≤0.2dB
|
Impact
|
1.5m, 8 drops
|
IEC61300-2-12
|
≤0.2dB
|
Strength of Coupling Mechanism
|
40N, 10Min, L=22-28cm
|
IEC61300-2-6
|
≤0.2dB
|
Temperature Cycling
|
40ºC to +85ºC, 40 cycles
|
IEC61300-2-22
|
≤0.2dB
|
Temperature humidty cycling
|
40ºC, 95%RH, 96Hr
|
IEC61300-2-21
|
≤0.2dB
|
Operating Temperature
|
-40ºC to +85ºC
|
|
≤0.2dB
|
Storage Temperature
|
-40ºC to +85ºC
|
|
≤0.2dB
|
Features:
> The adapters are comply with IEC61754-4
> Compatible with standard SC connectors
> All materials compliant with RoHS/REACH
> 100% Optic test (Insertion Loss)
> Ceramic sleeve tube
> Accurate external size
> Individually packaged
Fiber Optic Adapter Application:
> Telecom, Access Network
> Optical Fiber CATV
> Terminal of the Devices and Multimedia
> Testing and Medical Devices
> Optical Fiber LAN and Access Network
Detail Information
|
Product Name:
|
SC Simplex Fiber Optic Adapter
|
Color:
|
Blue color
|
Mode Type:
|
Singlemode
|
Insertion Loss:
|
≤0.2dB
|
Durability:
|
≤0.1dB( 500 Times)
|
Sleeve Pull Force:
|
2-5.9N
|
Operating Temp.:
|
-40??+80?
|
Storage Temp.:
|
-40??+80?
|
Meeting Standards:
|
IEC61754-4-2013 / IEC613000
|
Certification:
|
ISO9001
|
Highlight:
|
FTTH SC/UPC Simplex Adapter
,
FTTB SC/APC Simplex Adapter
,
FTTB SC/UPC simplex adapter
|






Specification |
|
|
|
|
|
Optical Performance |
Ceramic |
Conformance |
Insertion Loss |
0.20dB |
IEC 61300-3-4 |
Return Loss |
>-60 |
IEC61300-2-2 |
Mating Durability |
500 |
IEC 61754-20 |
Ferrule |
Zirconia ceramic |
|
Operating Temperature |
-25 to +70,12 cycles |
IEC 61300-2-22 |
