OVERVIEW

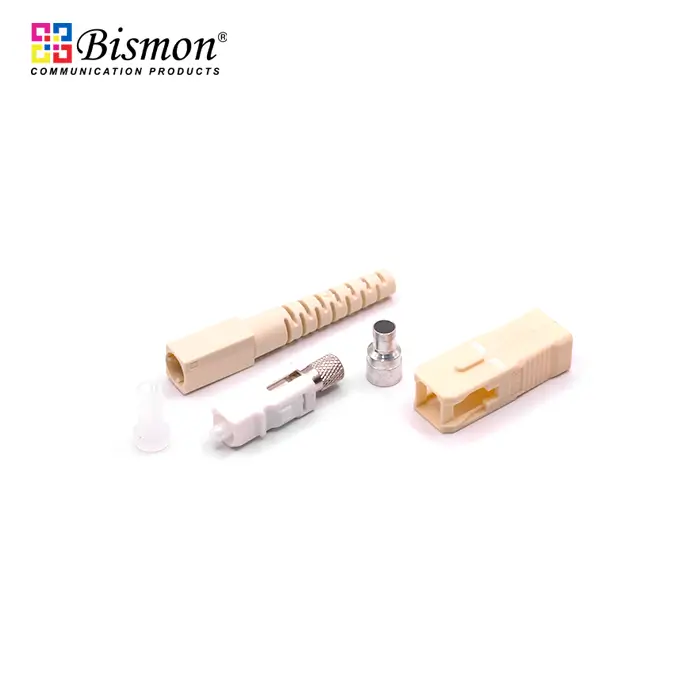

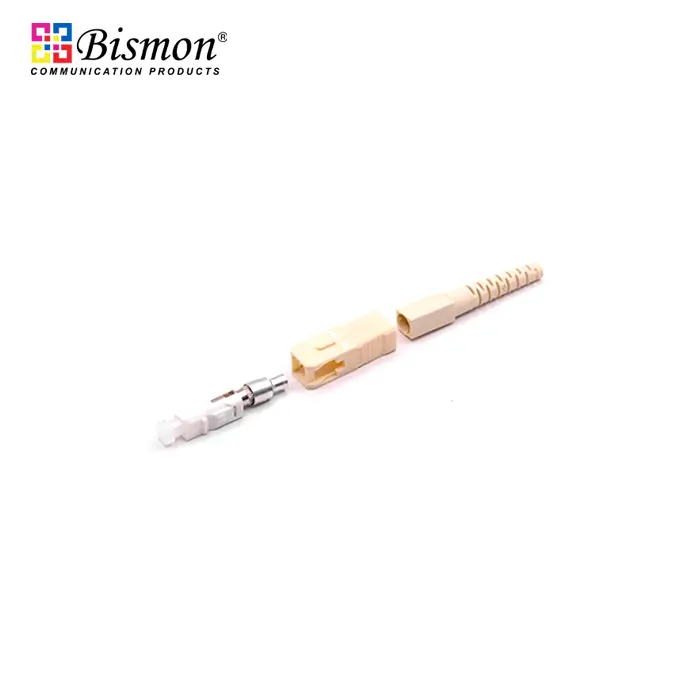

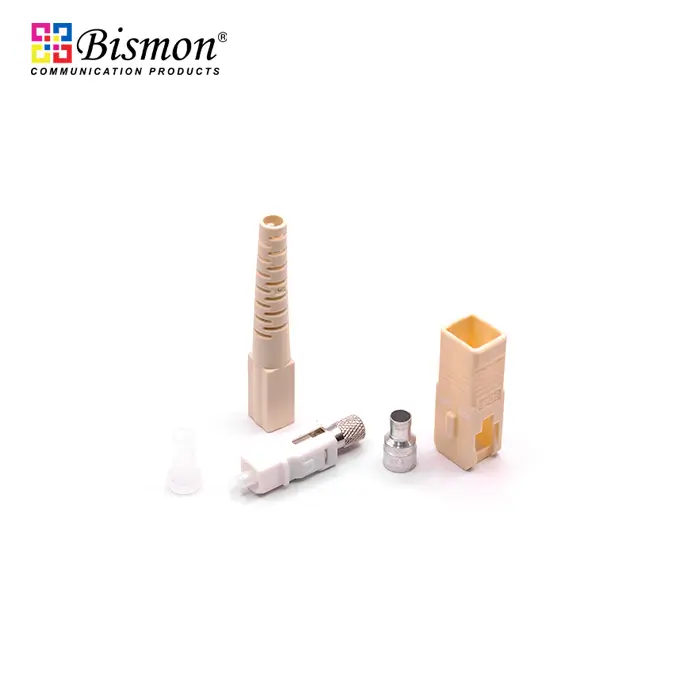

SC-Connector Simplex MM, Zirconia Ferrule (PC) 3.0mm Boot. The SC is a non-optical disconnect connector with a 2.5mm pre-radiused zirconia ferrule. Available in simplex and duplex styles, this connector features a push-pull connection design for quick patching of cables into rack or wall mounts. Utilize the reusable duplex holding clip to create duplex connections. The BISMON SC features a durable plastic body with a zirconia PC finish ferrule for minimum back reflection and can be ultra-polished on a single mode BISMON patch cord.

Application:

 • Telecommunications

 • Local area network

 • Fiber optic sensors

 • Testing instruments

 • CATV

Feature:

 • PC ferrule with20mm radius fast polishing

 • 8-degree angle PC ferrule Ceramic/Zirconia with ultra-low insertion loss

 • Low back reflection los s

 • Easy to handle

 • Environmentally stable

 • Typical Insertion Loss, dB: Single mode (9/125um) = 0.15

 • Typical Insertion Loss, dB: Multi mode(50,62.5/125um) = 0.3

 • Operating Temperature, C: - 40 ~ +75

 • Storage Temperature, C: - 55 ~ + 85
