OVERVIEW

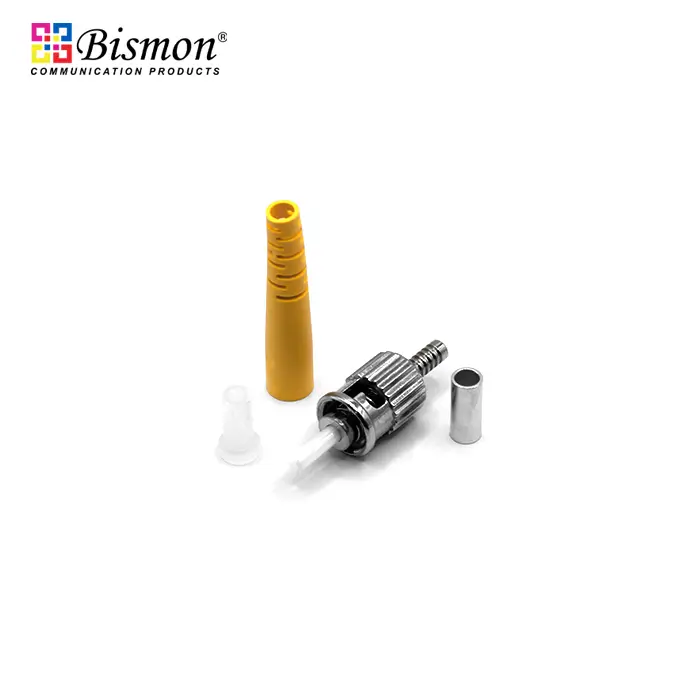

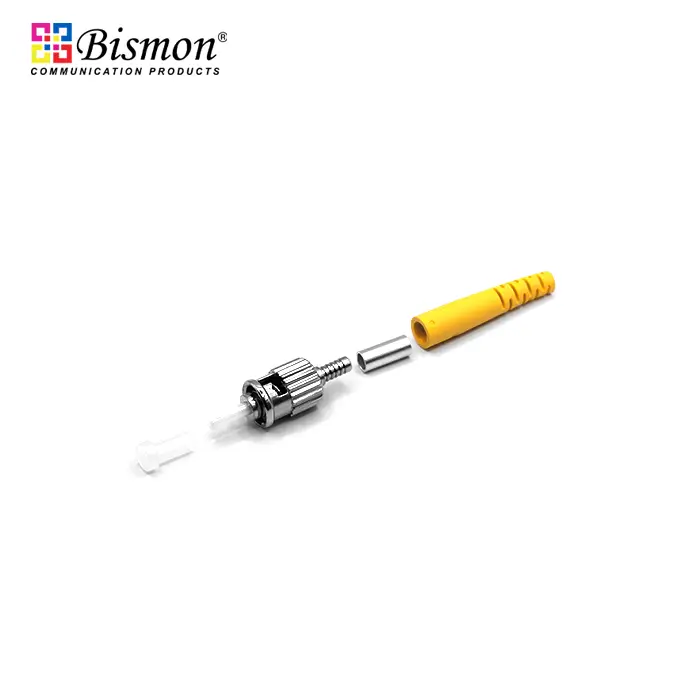

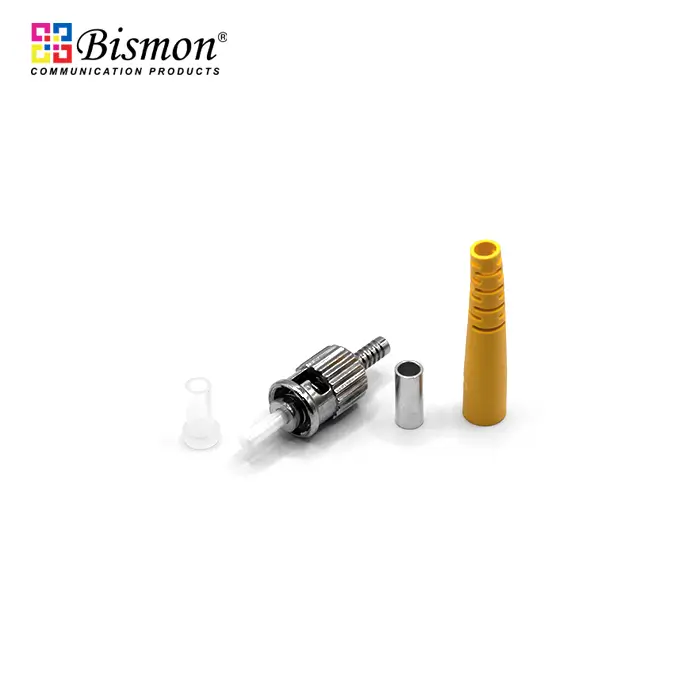

ST-Connector SM Zirconia Ferrule (PC), 3.0mm Boot

The ST connector utilizes a bayonet twist-lock connector with 2.5mm ferrule. Available in single mode and multimode, the ST connector features reliable and durable field installation. The design of the BISMON ST connector enables installers to crimp the back of the body directly onto the cable jacket and Kevlar. This eliminates cable pull away, ensuring a strong termination. Upon request. Bismon ST connectors can be supplied without BISMON markings. Stainless alloy ferrules can be custom drilled.

Application:

 • Telecommunications

 • Local area network

 • Fiber optic sensors

 • Testing instruments

 • CATV

Feature:

 • PC ferrule with20mm radius fast polishing

 • 8-degree angle PC ferrule Ceramic/Zirconia with ultra-low insertion loss

 • Low back reflection los s

 • Easy to handle

 • Environmentally stable

 • Typical Insertion Loss, dB: Single mode (9/125um) = 0.15

 • Typical Insertion Loss, dB: Multi mode(50,62.5/125um) = 0.3

 • Operating Temperature, C: - 40 ~ +75

 • Storage Temperature, C: - 55 ~ + 85
