Name: ST Pigtail Fiber simplex 1.5M,OM2,Multi-mode
Brand: Bismon: Fiber Patch Cord
SKU: 5MSTPP015
Price: 68.00 THB
Availability: InStock

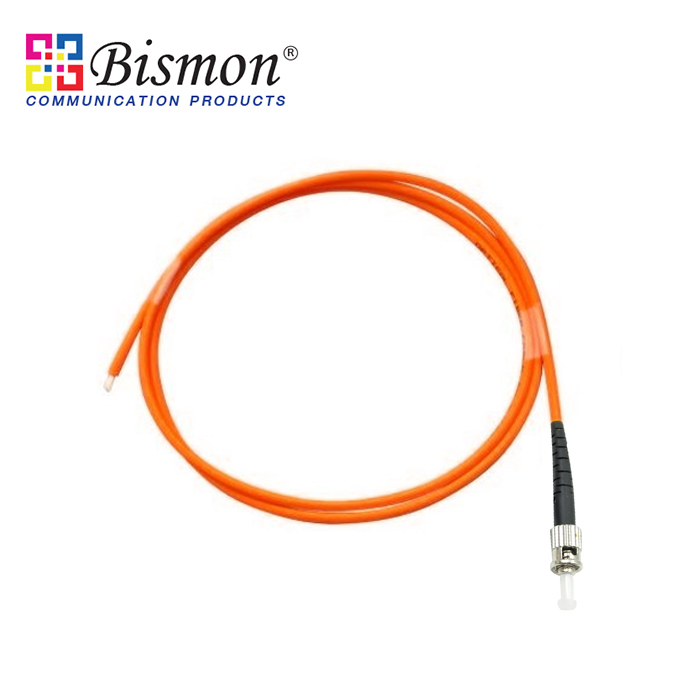

ST Pigtail Fiber simplex 1.5M,OM2,Multi-mode

Part number : 5MSTPP015

Brand : Bismon: Fiber Patch Cord

Price : 68.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

ST pigtail 50/125um Simplex, MM 1.5 meters

Features

: PC,UPC Polishing

: High return loss,Low insertion loss

: High reliability,High temperature stability

: Compliant with Telecordia GR-326-Core, TIA/EIA and IEC

: Insert draw connection (simple,easy)

: Comply to IEC standard

: Multi-mode(OM2) attenuation (dB)/km: 3.5@850nm/1.5@1310nm

: Bandwidth OFL(MHz-km): 500@850/500@1310nm

Specifications

Item	Multi-Mode 50/125um (OM2) conforms to ITU-T G651
Inserton loss(dB)	≤0.25
Temperature(?)	-40~+80
Repeatability(dB)	≤0.1
Durability	≥ 1,000 Matings
Return loss(dB)	PC≥45,UPC≥50,APC≥65
Cable diameter(mm)	Ø3.0, Ø2.0, Ø0.9
Tensile Strength(N)	≥90N(OD:3.0), ≥ 70N (OD:2.0mm)
Bend radius min.	20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm
Cable design	PVC Jacket or LSZH (Low smoke zero halogen ) material, Orange color

FEATURES -Optical testing follow ITU, IEU and EIA/TIA-FOTP spec -Optical testing follow Telcordia GR-326-CORE -Meet UL, OFNR & OFNP flame retardant rating -Lowest losses at interconnections -High reliability and stability -High return loss and low insertion Loss APPLICATIONS -Optical test equipment -Interconnection between distribution center and O-E equipment -Long span optical communication system -Local area network -High speed transmission system -Telecom, date, voice and image applications -CATV
