Overview
Outdoor-Ready Protection for PoE Cameras, APs, and Intercoms

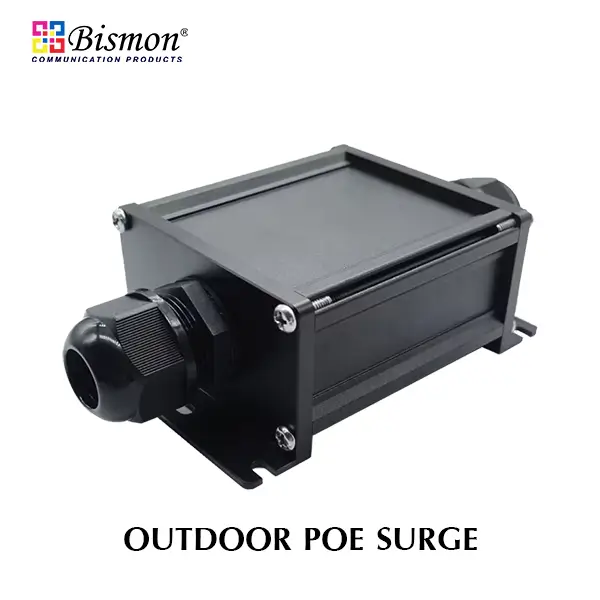

The B1-SP-005POEWM1 is a high-performance waterproof Gigabit PoE surge protector engineered for outdoor and exposed environments. Designed with an IP67-rated enclosure and a 10kA surge discharge capacity, it protects PoE-powered devices such as cameras, access points, and intercom panels from lightning strikes and transient overvoltage, ensuring continuous operation in harsh conditions.
·Engineered for Harsh Environments
Built with a three-stage surge suppression network and independent grounding, the SP-005POEWM1 diverts harmful energy away from sensitive devices, keeping both data and power lines stable. Its full 8-pin protection supports IEEE802.3af/at/bt PoE devices up to 1 Gbps, while the IP67 waterproof housing shields against dust, rain, and extreme weather—ideal for pole, wall, or outdoor cabinet installations.
·Reliable Performance Without Signal Loss
This model delivers low insertion loss (<0.2 dB) to maintain Gigabit transmission quality, even in surge-prone environments. The aluminum alloy casing provides superior thermal performance, flame resistance, and long service life of approximately five years, making it a dependable choice for long-term outdoor deployments.
Applications

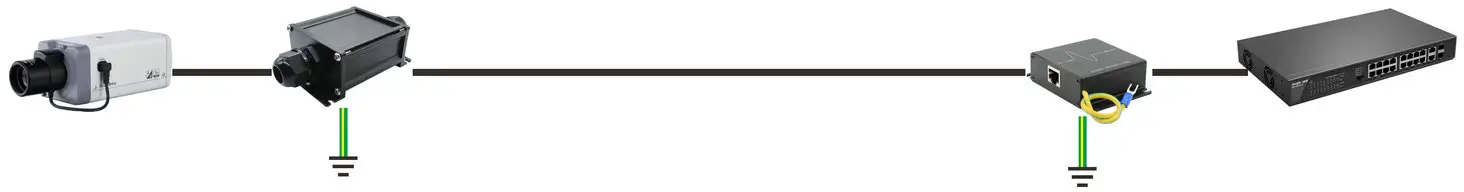

1.Security & Surveillance — Protect outdoor IP/PoE cameras, including PTZ units, from lightning surges.
2.Telecommunications & Wireless — Safeguard outdoor Wi-Fi access points and base stations.
3.Transportation & Smart Infrastructure — Defend roadside intercoms, access panels, and monitoring systems.
4.Industrial Outdoor Networks — Ensure reliable PoE supply to sensors, controllers, or gateways exposed to the elements.



Parameter
|
Category
|
Description
|
|
Signal Type
|
Network
|
Power
|
|
Interface Type
|
RJ45
|
|
Working Voltage (Un)
|
6/12V
|
48V
|
|
Max. Continuous Operating Voltage (Uc)
|
≤20V
|
≤60V
|
|
Voltage protection level (Up @line-line)
|
20V@ 3kV (1.2/50)
|
60V@ 3kV (1.2/50)
|
|
Voltage protection level (Up @line-GND/PE)
|
60V@ 3kV (1.2/50)
|
400V@ 3kV (1.2/50)
|
|
Nominal Discharge Current (In @8/20μs)
|
5kA
|
|
Max. Discharge Current (Imax @8/20μs)
|
10kA
|
|
Surge Life at 0.5kA (8/20μs)
|
>2000 events
|
|
Bandwidth (3dB) per pair
|
250MHz
|
|
Return Loss (100Ω?
|
-16dB
|
|
Lightning protection
|
10kV@8/20μs, 10kV@10/700μs
|
|
Transmission Rate (Mbps)
|
1000
|
|
Response Time (ns)
|
≤1
|
≤25
|
|
Insert Loss (dB)
|
≤0.2
|
|
Working Temperature
|
-40 C- +80 C
|
|
Working Humidity
|
< 95? Non-condensation
|
|
Net Weight (g)
|
287
|
