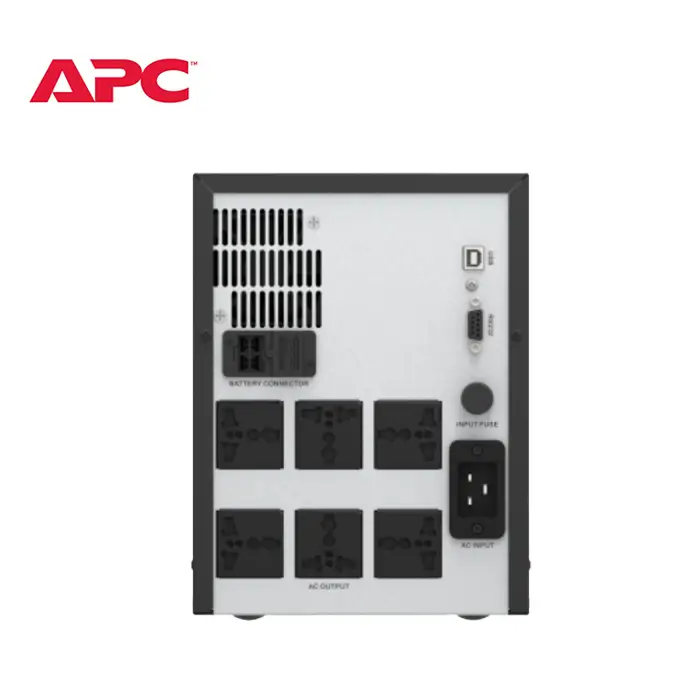

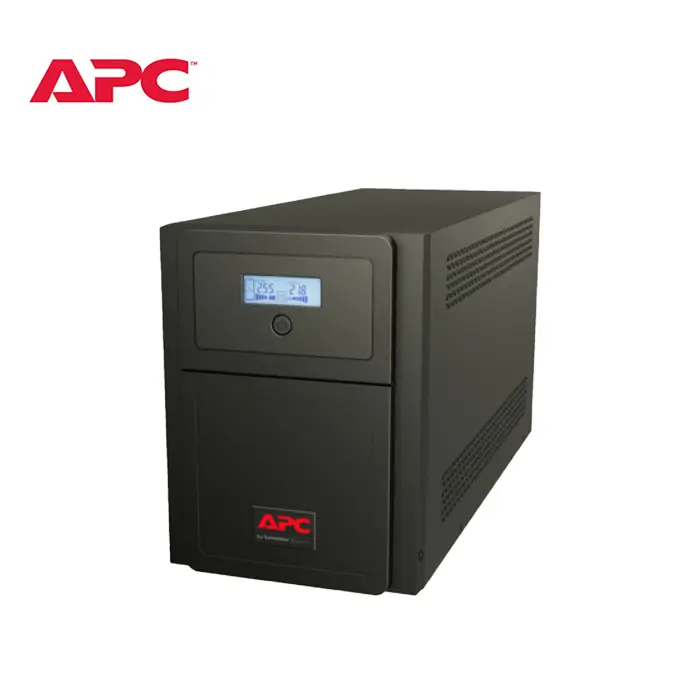

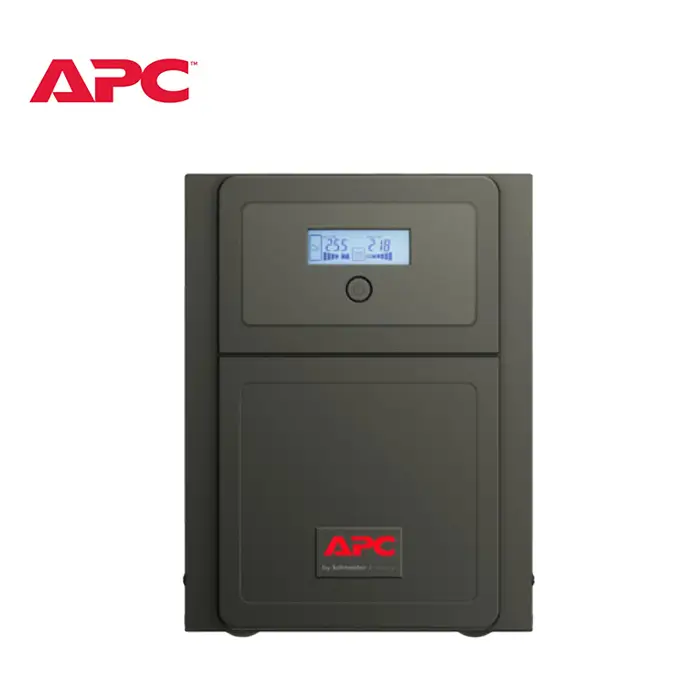

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 3kVA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C20 input connection and 6x Universal outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV209
Specification
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 210-2100 W
|
2min 25s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Input voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Rated power in W
|
2100 W
|
|
rated power in VA
|
3000 VA
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Input Connection Type
|
IEC 60320 C20
|
|
output connection type
|
6 universal receptacle
|
|
Number of cables
|
1
|
|
Battery type
|
Lead-acid battery
|
|
Provided equipment
|
Documentation CD
User manual
USB cable
|
|
Range of product
|
Easy UPS
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Number of battery filled slots
|
0
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
4 h
|
|
Battery voltage
|
48 V
|
|
Battery charger power
|
99 W rated
|
|
Battery life
|
3…5 year(s)
|
|
Replacement battery
|
APCRBCV209
|
|
Extended runtime
|
0
|
|
General
|
|
Number of power module free slots
|
0
|
|
Number of power module filled slots
|
0
|
|
Redundant
|
No
|
|
UPS size
|
WS
|
|
Physical
|
|
Colour
|
Black
|
|
Height
|
24 cm
|
|
Width
|
18 cm
|
|
Depth
|
45.5 cm
|
|
Net weight
|
25.2 kg
|
|
Mounting preference
|
No preference
|
|
Mounting mode
|
Not rack-mountable
|
|
Two post mountable
|
0
|
|
USB compatible
|
No
|
|
Input
|
|
Network frequency
|
45...65 Hz +/- 1 Hz auto-sensing
|
|
Input voltage limits
|
165...295 V
|
|
Output
|
|
Maximum configurable power in W
|
2100 W
|
|
Output frequency
|
50/60 Hz +/- 1 Hz unsynchronised
|
|
Crest factor
|
3 : 1
|
|
UPS type
|
Line interactive
|
|
Wave type
|
Sine wave
|
|
Graph display
|
1
|
|
Maximum configurable power in VA
|
3000 VA
|
|
Transfer time
|
2-6 ms typical : 12 ms maximum
|
|
Conformance
|
|
Product certifications
|
CE
TISI
|
|
Environmental
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Relative humidity
|
0…95 % non-condensing
|
|
Operating altitude
|
0...3000 m
|
|
Ambient air temperature for storage
|
-10…40 °C
|
|
Storage Relative Humidity
|
0…95 % non-condensing
|
|
Storage altitude
|
0…15000 m
|
|
Acoustic level
|
45 dBA
|
|
IP degree of protection
|
IP20
|
|
Communications & Management
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
125 J
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
41.05 cm
|
|
Package 1 Width
|
31.9 cm
|
|
Package 1 Length
|
60.1 cm
|
|
Package 1 Weight
|
28.9 kg
|
|
Contractual warranty
|
|
Warranty
|
2 years repair or replace
|
