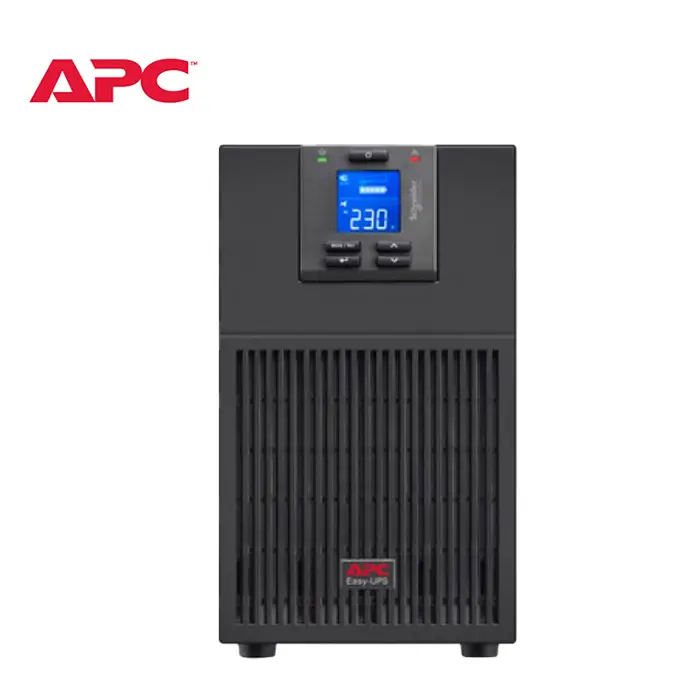

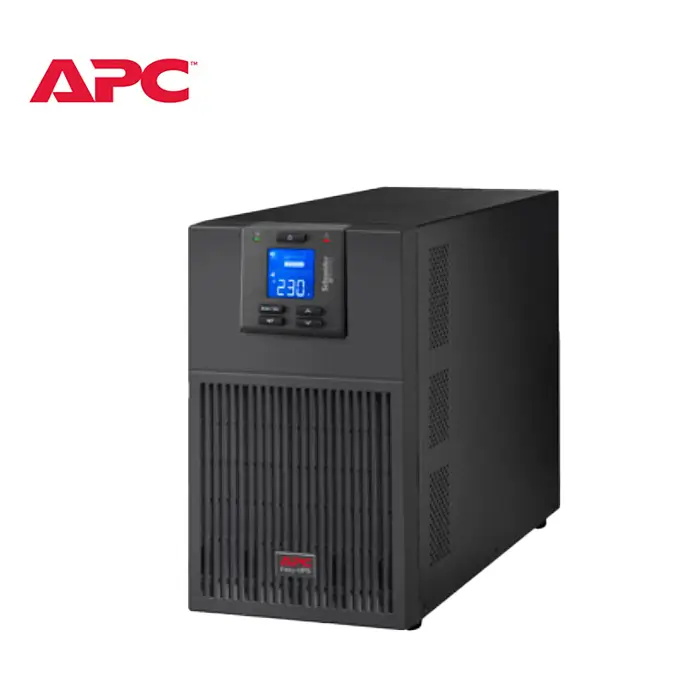

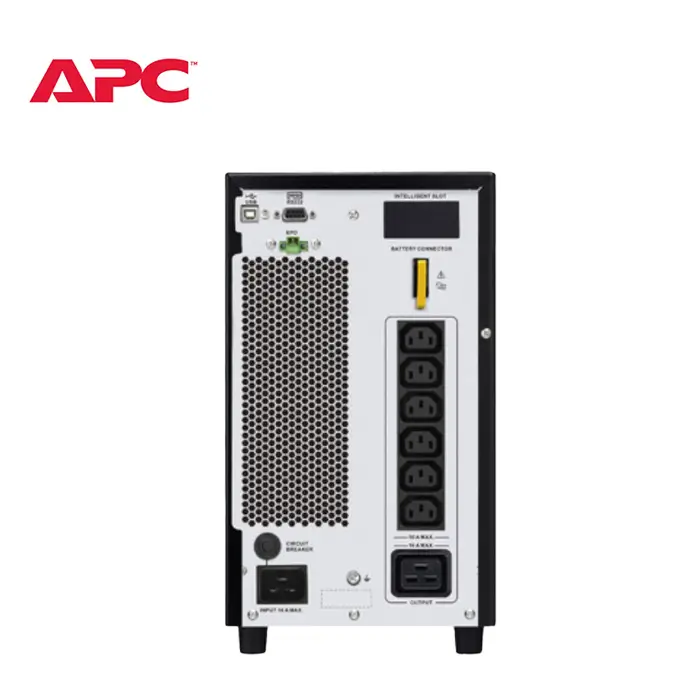

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input and 6x IEC 320 C13, 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV205. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
|
Overview
|
|
Presentation
|
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
|
|
Lead time
|
Usually in Stock
|
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 270-2700 W
|
2min 54s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
2700 W
|
|
rated power in VA
|
3000 VA
|
|
Input Connection Type
|
IEC 60320 C20
|
|
output connection type
|
6 IEC 60320 C13
1 IEC 60320 C19
|
|
Cable length
|
1.5 m
|
|
Number of cables
|
1
|
|
Provided equipment
|
1 IEC 60320 C19 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
user manual
|
|
Range of product
|
Easy UPS On-Line
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Battery type
|
Lead-acid battery
|
|
Battery voltage
|
72 V
|
|
Extended runtime
|
0
|
|
Number of battery filled slots
|
0
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
4 h
|
|
Battery life
|
3…5 year(s)
|
|
Replacement battery
|
APCRBCV205
|
|
Battery charger power
|
60 W rated
|
|
General
|
|
Max runtime
|
3 min
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
Redundant
|
No
|
|
Physical
|
|
Colour
|
Black (RAL 7010)
|
|
Height
|
33.6 cm
|
|
Width
|
19 cm
|
|
Depth
|
42.5 cm
|
|
Net weight
|
26.0 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
No preference
|
|
Mounting mode
|
Not rack-mountable
|
|
USB compatible
|
Yes
|
|
Mounting position
|
Vertical
|
|
Input
|
|
Input voltage limits
|
110...285 V 40% load
180...285 V full load
|
|
Network frequency
|
40...70 Hz auto sensing
|
|
Output
|
|
Maximum configurable power in VA
|
3000 VA
|
|
Maximum configurable power in W
|
2700 W
|
|
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Harmonic distortion
|
3 %
|
|
UPS type
|
Double conversion online
|
|
Wave type
|
Sine wave
|
|
Efficiency
|
88 % (full load)
|
|
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage
|
|
Bypass type
|
Internal bypass (automatic and manual)
|
|
Crest factor
|
3 : 1
|
|
Conformance
|
|
Product certifications
|
CE
UKCA
TISI
|
|
Standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Relative humidity
|
0…95 % non-condensing
|
|
Operating altitude
|
0...3000 m
|
|
Ambient air temperature for storage
|
-20…50 °C
|
|
Storage Relative Humidity
|
0…95 % non-condensing
|
|
Storage altitude
|
0…15000 m
|
|
Acoustic level
|
50 dBA
|
|
Heat dissipation
|
1024 Btu/h
|
|
IP degree of protection
|
IP20
|
|
Communications & Management
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
Free slots
|
1
|
|
control panel
|
Multifunction LCD status and control console
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
945 J
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
46.5 cm
|
|
Package 1 Width
|
56.5 cm
|
|
Package 1 Length
|
32.5 cm
|
|
Package 1 Weight
|
28 kg
|
|
Contractual warranty
|
|
Warranty
|
2 years repair or replace
|
