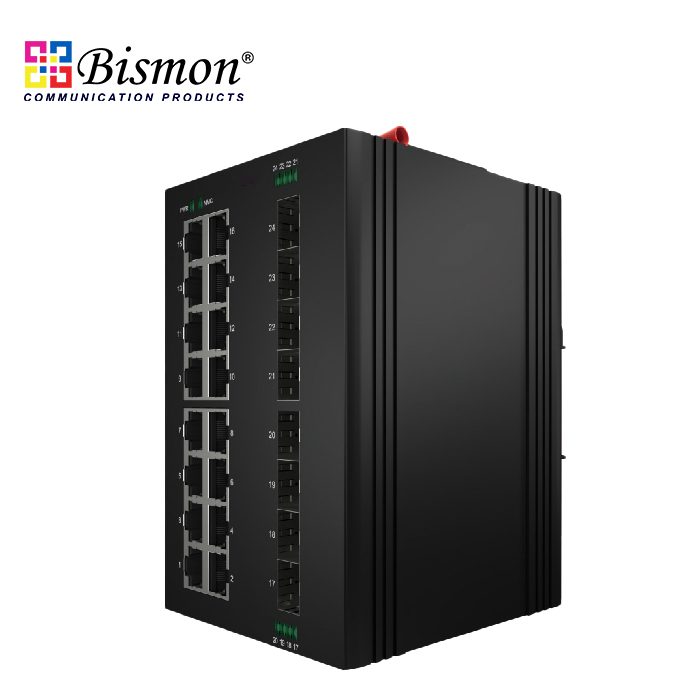

Provider Mode Ports

Fixed port

8*1000 Base-X ,   16*10/100/1000 Base-T

Power interface

Phoenix terminal, dual power redundancy

LED Indicators

PWR ,Link/ACT LED

Cable type&Transmission distance

Twisted-pair

0-100m(CAT5e,CAT6)

Monomode optical fiber

20/40/60/80/100KM

Multimode optical fibre

550m

Network Topology

Ring topology

Not Supported

Star topology

Support

Bus topology

Support

Tree Topology

Support

Electrical Specifications

Input voltage

Not PoE:DC12-58V
PoE:DC48-58V

Total Power consumption

Not PoE<26W
PoE<386W

PoE supports optional configuration

PoE port

1-16

PoE Protocol

802.3af ,802.3at

Pin Assignment

1,2,3,6

PoE support++optional

PoE port

1-16

PoE Protocol

802.3af ,802.3at ,802.3bt

(1-2 single interface supports a maximum of 60W)

Pin Assignment

1245+  3678-

Layer 2 Switching

Switching capacity

68G

Packet forwarding rate

50.59Mpps

MAC address table

16K

Buffer

12M

Forwarding delay

<10us

MDI/MDIX

Support

Jumbo Frame

Supports10Kbytes

Mechanical Dimensions

Product size

94*104*143mm

Installation Method

Card rail installation

Weight

1KG

Environment

Operating temperature

Not PoE: -40°C ~ +75°C
PoE:  -40°C ~ +70°C

Storage temperature

-40°C~ +85°C

Relative humidity

5%~95%  non-condensing

Thermal methods

Fanless design, natural heat dissipation

MTBF

100,000 hour

EMC&INGRESS PROTECTION

IP Level

IP40

Surge protection of Power

IEC 61000-4-5  Level X? 6KV/6KV?? 8/20us?

Surge protection of Ethernet port

IEC 61000-4-5  Level 4?4KV/4KV?? 10/700us?

Rs

IEC 61000-4-3  Level 3? 10V/m?

EFI

IEC 61000-4-4  Level 3? 1V/2V?

CS

IEC 61000-4-6  Level 3? 10V/m?

PFMF

IEC 61000-4-8  Level 4? 30A/m?

DIP

IEC 61000-4-11  Level 3? 10V?

ESD

IEC 61000-4-2  Level 4? 8K/15K?

Free fall

0.5m

Authentication

Authentication

Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology?CE/FCC/RoHS
