SPECIFICATION

Provider Mode Ports:

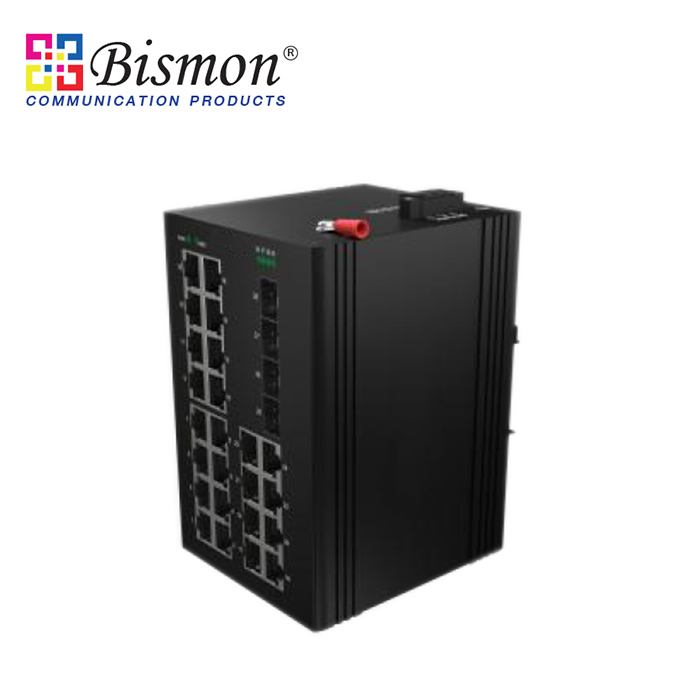

• Fixed port: 4*1000 Base-X, 24*10/100/1000 Base-T
• Management Port: Unsupported
• Power interface: Phoenix terminal, redundant dual power supply
• LED Indicators: PWR, Link/ACT LED

DIP Switch:

• 1 C/D: None
• 2 LGY: None
• 3 VLAN: None
• 4 RST: None

Cable Type & Transmission Distance:

• Twisted-pair: 0-100m (CAT5e, CAT6)
• Monomode optical fiber: 20/40/60/80/100KM
• Multimode optical fiber: 550m

Network Topology:

• Ring topology: Unsupported
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: Support

Electrical Specifications:

• Input voltage: DC12-58V (Non-PoE), DC48-58V(PoE)
• Total Power consumption: <26W(Non-PoE); <386W(PoE)
• Voltage Alarm: –

PoE Support:

• PoE port: 1~24
• PoE Protocol: 802.3af?802.3at
• Pin Assignment: 12+, 36-
• PoE Mode: None
• PoE Management: None
• Remote PD Reset: None

PoE++ Support (Optional):

• PoE++ Port: 1-24
• PoE++ Protocol: 802.3af?802.3at?802.3bt ( Port 1 & Port 2 support 90W per port)
• PoE++ Pin Assignment: 1245+, 3678-

Layer 2 Switching:

• Switching capacity: 68G
• Packet forwarding rate: 50.59Mpps
• MAC address table: 16K
• VLAN: Unsupported
• Buffer: 12M
• Forwarding delay: <10 µs
• MDX/MIDX: Support
• Flow control: Support
• Jumbo Frame: Support 10K Bytes
• WatchDog: –
• Port Isolation:

Environment:

• Operating temperature: -40°C ~ +75°C The device is tested for 4 hours at temperatures in 85?
• Storage temperature: -40°C ~ +85°C
• Relative humidity: 5% ~ 95% non-condensing
• Thermal methods: Fanless, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions:

• Product size: 94*104*143 mm
• Installation Method: DIN rail
• Weight: 1 Kg around

EMC & Ingress Protection:

• IP Level: IP40
• Surge protection of Power: IEC 61000-4-5 Level X (6KV/6KV) (8/20 µs)
• Surge protection of Ethernet port: IEC 61000-4-5 Level X (4KV/4KV) (10/700 µs)
• RS: IEC 61000-4-3 Level 3 (10V/m)
• EFI: IEC 61000-4-4 Level 3 (1V/2V)
• CS: IEC 61000-4-6 Level 3 (10V/m)
• PFMF: IEC 61000-4-8 Level 4 (30A/m)
• DIP: IEC 61000-4-11 Level 3 (10V)
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m
