Specification

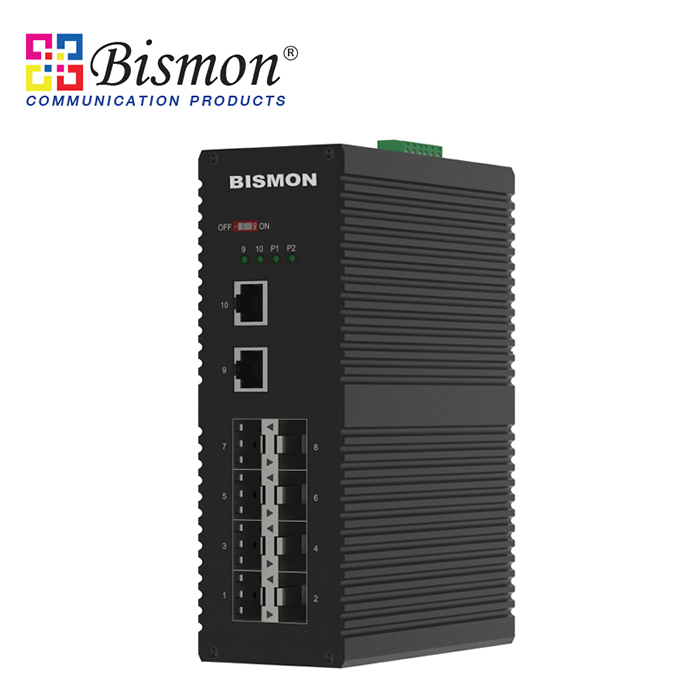

Fixed port                                                                        8*1000 Base-X?2*10/100/1000 Base-T

Power interface                                                             Phoenix terminal, redundant dual power supply

LED Indicators                                                                PWR?Link/ACT LED

Cable type & Transmission distance

Twisted-pair                                                                   0-100m?CAT5e,CAT6?

Monomode optical fiber                                           20/40/60/80/100KM

Multimode (optical) fiber                                         550m

Network Topology

Ring topology                                                                Unsupported

Star topology                                                                 Support

Bus topology                                                                  Support

Tree Topology                                                                Support

Electrical Specifications

Input voltage                                                                  DC12-58V

Total Power consumption                                          Total Power<6W

Layer 2 Switching

Switching capacity                                                        20G

Packet forwarding rate                                                14.88Mpps

MAC address table                                                       16K

VLAN                                                                                 Unsupported

Buffer                                                                                 2M

Forwarding delay                                                           <5us

MDX/MIDX                                                                      Support

Flow control                                                                    Support

Jumbo Frame                                                                  Support 10Kbytes

Environment

Operating temperature                                               -40?~+75?

Storage temperature                                                    -40?~+85?

Relative humidity                                                          5%~95% non-condensing

Thermal methods                                                          Fanless, natural cooling

MTBF                                                                             100,000 hours

Mechanical Dimensions

Product size                                                                     161*115*53mm

Installation Method                                                      DIN rail

Weight                                                                               0.85KG around

EMC & INGRESS PROTECTION

IP Level                                                                              IP40

Surge protection of Power                                          IEC 61000-4-5   Level 3?4KV/2KV??8/20us?

Surge protection of Ethernet port                            IEC 61000-4-5   Level 3?4KV/2KV??10/700us?

EMI                                                                                      CLASS A

ESD                                                                                      IEC 61000-4-2   Level 4?8K/15K?

Free fall                                                                              0.5m

Authentication

Authentication                                                                CCC, CE, FCC, RoHS

Accessories

Accessories                                                                       Device, Terminals, Specification, Certificate, power adapter(optional)
