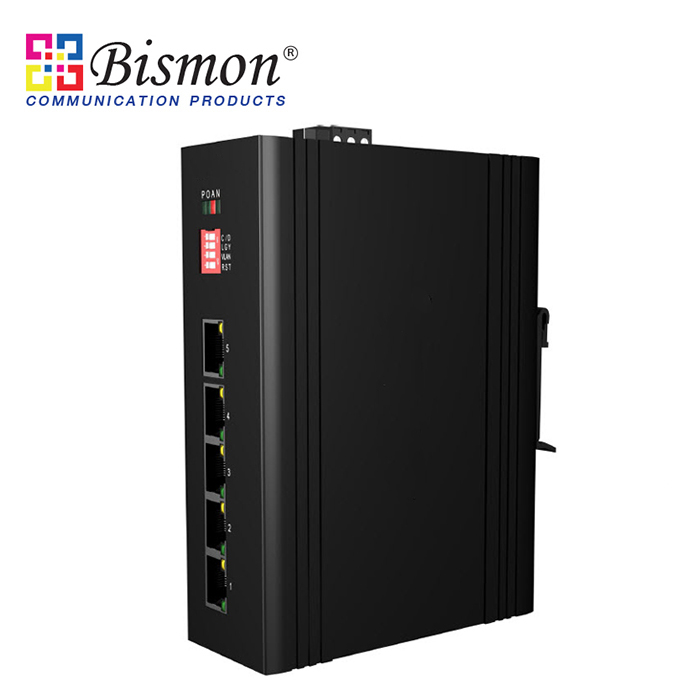

5x10 100Base-T Industrial Switch Unmanaged
FEATURE
• Latest functions: voltage alarm, watchdog, daily reset, relay alarm output, standard and non-standard PoE mode
• IP40, adapt to various harsh environments
• Industrial-grade chip, wide temperature range of -40 ~ 85 ?
• 12 ~ 58 V dual-channel DC power supply redundant input, reverse connection protection
• 4-6KV surge protection and 15 ~ 18KV electrostatic protection
• IEEE 802.3AT/IEEE 802.3AF standard, PoE function is optional
• High bandwidth non-blocking architecture
• Larger cache capacity to better adapt to the influx of traffic
• Aluminum shell, high heat dissipation capacity
• Month-grade seismic DIN rail, the circuit board is multilayer
• IEEE 802.3x flow control, MDI/MDIX, full duplex and half duplex
• Compatible with a variety of mainstream brand equipment, Huawei, Cisco, H3C, RUIJIE, NETGEAR, TP-LINK, RAISECOM, etc.
Specification
Fixed port 5*10/100/1000Base-T
Power interface Phoenix terminal, redundant dual power supply
LED Indicators PWR?OPT, NMC?ALM
Reset Reset switch type
Twisted pair 0-100 m (CAT5e?CAT6)
Net topology and network expansion
Star topology Support
Bus topology Support
Tree topology Support
Electrical Specifications
Input voltage DC12-58V
Total Power consumption <6W , PoE <126 W
Voltage Alarm Support
PoE (optional)
PoE port 1 ? 4
PoE protocol 802.3AF ? 802.3AT
PoE pin assignment 1,2?3,6
PoE mode Standard and non-standard are optional support
Layer 2 Switching
Switching capacity 10G
Packet forwarding rate 7.44Mpps
MAC address table 8K
Buffer 1M
Forwarding delay <5us
MDX/MIDX Support
Flow control Support
Jumbo Frame Support 10Kbytes
WatchDog Support
Red: reset every day Support options
Relay alarm output Support options
Environment
Operating temperature -40C~+85C
Storage temperature -40C~+85C
Relative humidity 5%~95% non-condensing
Thermal methods Fanless, natural cooling
MTBF 100,000 hours
Mechanical Dimensions
Product size 143X104X48mm
Installation Method DIN rail
EMC&INGRESS PROTECTION
IP Level IP40
Surge protection of Power IEC 61000-4-5 Level X (6KV/6KV) (8/20us)
Surge protection of Ethernet port IEC 61000-4-5 Level X (4KV/4KV) (10/700us)
RS IEC 61000-4-3 Level 3 (10V/m)
EFI IEC 61000-4-4 Level 3 (1V/2V)
CS IEC 61000-4-6 Level 3 (10V/m)
PFMF IEC 61000-4-8 Level 4 (30A/m)
DIP IEC 61000-4-11 Level 3 (10V)
ESD IEC 61000-4-2 Level 4 (8K/15K)
Free fall 0.5m
Authentication
Authentication CCC, CE, FCC, RoHS
Accessories
Accessories Device, Terminals, Specification, Certificate, power adapter(optional)
