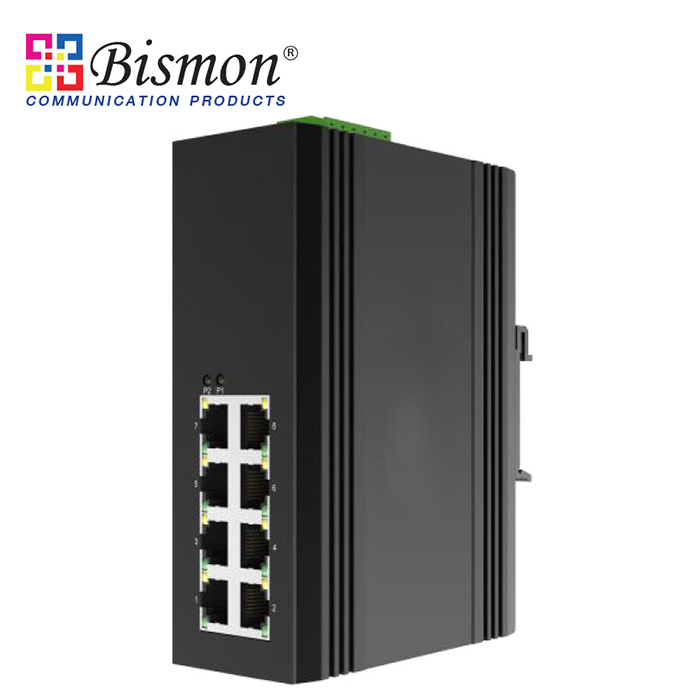

Specification

Fixed port                                                                        8*10/100Base-T

Power interface                                                             Phoenix terminal, redundant dual power supply

LED Indicators                                                                PWR?OPT, NMC?ALM

DIP Switch

1 C/D                                                                                Reserve

2 LGY                                                                                 Stand/Non-standard PoE Mode

3 VLAN                                                                             Port Isolation

4 RST                                                                                 Reset

Cable type & Transmission distance

Twisted-pair                                                                   0-100m?CAT5e,CAT6?

Monomode optical fiber                                           /

Multimode (optical) fiber                                         /

Network Topology

Ring topology                                                           Unsupported

Star topology                                                            Support

Bus topology                                                             Support

Tree Topology                                                           Support

Hybrid topology                                                       Support

Electrical Specifications

Input voltage                                                              DC12-58V

Total Power consumption                                      <6W

Voltage Alarm                                                            Support

Layer 2 Switching

Switching capacity                                                  5.6G

Packet forwarding rate                                          4.16Mpps

MAC address table                                                  8K

VLAN                                                                           Unsupported

Buffer                                                                           1M

Forwarding delay                                                     <5us

MDX/MIDX                                                                Support

Flow control                                                              Support

Jumbo Frame                                                            Support 1632 Bytes

WatchDog                                                                  Support

Prot Isolation                                                             Support

Environment

Operating temperature                                          -40?~+75?

The device is tested for4 hours at temperatures in 85?

Storage temperature                                               -40?~+85?

Relative humidity                                                     5%~95% non-condensing

Thermal methods                                                     Fanless, natural cooling

MTBF                                                                        100,000 hours

Mechanical Dimensions

Product size                                                               143X104X48mm

Installation Method                                                 DIN rail

Weight                                                                         0.5KG around

EMC&INGRESS PROTECTION

IP Level                                                                 IP40

Surge protection of Power                                IEC 61000-4-5   Level X?6KV/6KV??8/20us?

Surge protection of Ethernet port                   IEC 61000-4-5   Level X?4KV/4KV??10/700us?

RS                                                                           IEC 61000-4-3   Level 3?10V/m?

EFI                                                                          IEC 61000-4-4   Level 3?1V/2V?

CS                                                                           IEC 61000-4-6   Level 3?10V/m?

PFMF                                                                      IEC 61000-4-8   Level 4?30A/m?

DIP                                                                         IEC 61000-4-11   Level 3 ?10V?

ESD                                                                         IEC 61000-4-2   Level 4?8K/15K?

Free fall                                                                 0.5m

Authentication

Authentication                                                     CCC, CE, FCC, RoHS

Accessories

Accessories                                                           Device, Terminals, Specification, Certificate, power adapter(optional)
