PRODUCT DESCRIPTION

Contractor Series Light Sources and Power Meters are rugged test instruments designed with a simple user interface and backed by an industry-leading 5-year warranty. Both single-mode and multimode kit options provide tools for measuring network insertion loss, continuity checks, and fiber identification.

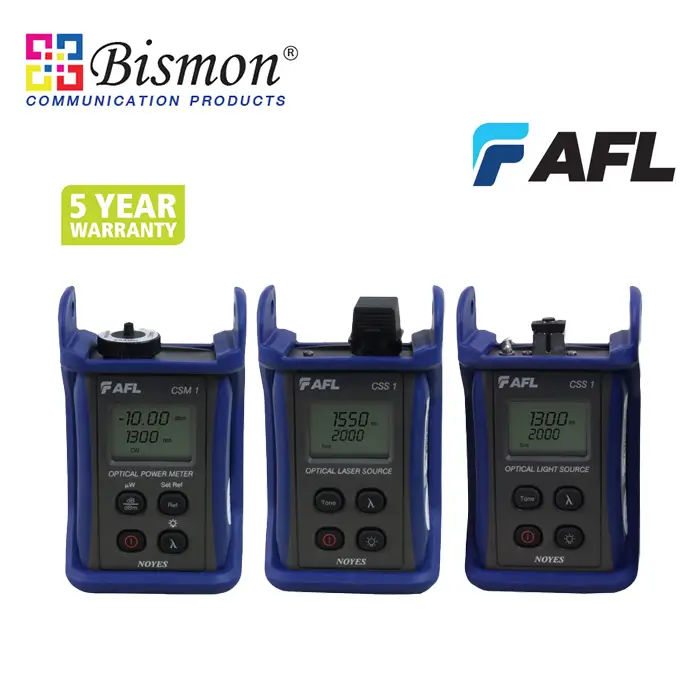

CSM1 Power Meter

• Four models provide wide wavelength and power level ranges

- Stores optical references for each calibrated wavelength

- Auto-detects Test Tones for use in fiber identification

- Optical input port accepts a variety of thread-on adapter caps

CSS1-SM Laser Source

-1310 nm and 1550 nm LASER output from single test port

-Output port accepts UCI threaded adapters (FC, SC, ST, LC) for flexibility and access to launch fiber for cleaning and inspection

CSS1-MM LED Source

• 850 nm and 1300 nm LED output from single test port
• 50 μm and 62.5 μm mandrels included
• Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
• Use power meters when technician has fiber end access

CSS1 Sources Transmit:

• CW continuous wave output (DC)
• Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
• Use power meters when technician has fiber end access
• Use OFI (optical fiber identifier) for mid-span testing

Features:

1. Palm-sized rugged, dependable tools
2. Industry-leading 5-Year Warranty
3. Cost-effective, easy to use
4. Auto-off to maximize battery life on Power Meter

Applications:

1. Link loss measurements
2. Certify SM & MM links to industry standards
3. Continuity check and fiber identification prior to fusion splicing
