PRODUCT DESCRIPTION

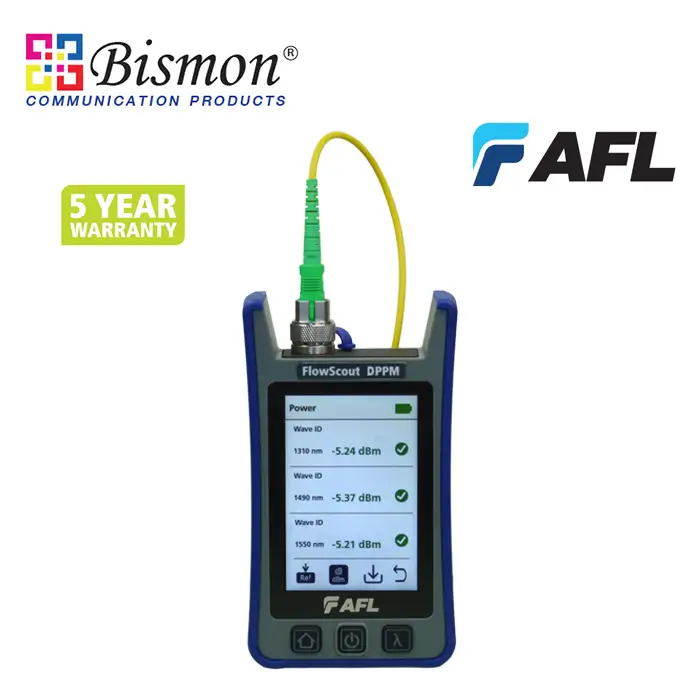

AFL's FlowScout Downstream PON Power Meter (DPPM) is designed to automatically detect and simultaneously measure coexistent downstream PON power levels at 1490 nm GPON/EPON and either 1550 nm RF video or 1577 nm XG/XGS/10GEPON.
Intuitive interface for easy operation: The FlowScout DPPM features a large color touchscreen with a simple icon-driven user interface that displays measured power levels with color-coded pass/fail indications. Measured power levels may be automatically evaluated as pass/fail against ITU-T or user-set min/max limits. The FlowScout DPPM uses a single port to automatically detect PON and broadband wavelengths.
Wave ID for reduced test time and errors: The FlowScout DPPM includes a broadband power meter for power and insertion loss measurements. Additional wavelengths can be measured using a companion CW or Wave ID source. When a Wave ID source is used, the power measurement process automatically synchronizes to source wavelengths, reducing test time and eliminating wavelength setting errors. The broadband power meter also automatically detects and reports the presence of 270 Hz, 330 Hz, 1 kHz and 2kHz fiber-identifying tones.
Full reporting capabilities: Measured power levels, pass/fail limits and status can be stored in internal memory for download via USB. Test results may be uploaded for subsequent analysis, editing, and reports generation with FlexReports PC software.
Efficient and durable: Rugged, ergonomic, and backed by an industry-best 5-year warranty, the hand-held FlowScout DPPM power meter includes IP54 weather protection, making it ideal for many conditions. It provides 16 hours of continuous operation from its rechargeable battery and can also be used while charging from the included AC adapter. A variety of field-replaceable output adapters support multiple connector styles. Basic kits include the FlowScout Downstream PON Power Meter in a convenient soft carry case.
Features
- Measures coexistent downstream PON power levels
- GPON/EPON and RF Video or XG/XGS/10GEPON
- Single port for PON and broadband wavelengths
- Evaluates pass/fail against ITU or user-set min/max limits
- Includes broadband power meter with CW, Tone, and Wave ID
- Internal storage for 4000 test results
- Download results via USB
- Reporting with AFL’s FlexReporter™ software suite
- Field-replaceable connector adapters
Applications
- Verify power levels during PON activation or troubleshooting
- Measure insertion loss to FTTH PON subscriber
- Perform automatic multi-wavelengths loss measurements
- Detect fiber-identifying tones

Specifications
|
Optical
|
|
Spectral Passband
|
PON Detector 1: 1480-1500 nm; PON Detector 2: 1540-1580 nm
Broadband Detector: 1260 – 1650 nm
|
|
Passband Isolation
|
Detector 1: ≥ 40 dB isolation @ 1270, 1310, 1550, 1577, 1625, 1650 nm
Detector 2: ≥ 40 dB isolation @ 1270, 1310, 1490, 1625, 1650 nm
|
|
Calibrated Wavelengths
|
PON Detector 1: 1490 nm; PON Detector 2: 1550 & 1577 nm
Broadband Detector: 1270, 1310, 1625, 1650 nm
|
|
Measurement Range
|
PON Power Meter: +15 to -50 dBm (1490, 1550, 1577 nm)
Broadband Power Meter: +15 to -50 dBm (1260 – 1650 nm)
|
|
Measurement Accuracy
|
±0.5 dB (within -40 dBm to +23 dBm range)
|
|
Display Resolution
|
0.01 dB/dBm
|
|
ORL
|
>44 dB
|
|
Measurement Modes
|
Power in dBm, Loss in dB relative to stored reference
|
|
Stored references
|
Stores separate reference for each calibration wavelength
Displays stored references
|
|
Tone Detection
|
Automatically detects 270 Hz, 330 Hz, 1 kHz, 2 kHz
|
|
Wave ID
|
Automatically detects and measures power & loss at one or more wavelengths using any AFL’s Wave ID source
|
|
Results Storage
|
Stores >4,000 results in AFL ATD (XML) file format; Results include test set info, fiber identifying info, timestamp, measured power, wavelength, pass/fail limit, pass/fail status, 0 dB reference power.
|
|
Connector Adapters
|
Includes user-replaceable SC/APC adapter; accepts FC, LC, ST adapters
|
|
General
|
|
Size (H x W x D)
|
14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in)
|
|
Weight
|
≤290 g (≤0.65 lb)
|
|
Display
|
3.5 in. color backlit LCD; capacitive touchscreen; 480 x 320 pixels
|
|
Data Storage
|
Non-volatile memory for field-updateable software and approx. 4000 test records results storage
|
|
AC Power
|
120/240 VAC input; 5VDC @ 2A output to USB-C
|
|
Battery Power
|
User replaceable Li-Ion; IEC 62133-2:2017 and UN38.3 certified
|
|
Battery Operating Time
|
16 hours (typical) continuous operation from full charge; Operates while charging
|
|
Data Interfaces
|
USB-C and Bluetooth BLE 5.1
|
|
Operating Temperature
|
-10 oC to +50 oC, 95% RH (non-condensing)
|
|
Storage Temperature
|
-30 oC to +70 oC, 95% RH (non-condensing)
|
|
IP Rating
|
IP54
|
|
Shock & Vibration
|
Withstands 1 m drop test on all 6 sides
|
|
CE compliance
|
IEC-61010 and EMC; RoHS compliant
|
|
Calibration
|
NIST-traceable; ≥3 years between required recalibration
|
|
Warranty
|
5 years
|
