PRODUCT DESCRIPTION
Precise Power Measurement Made Simple

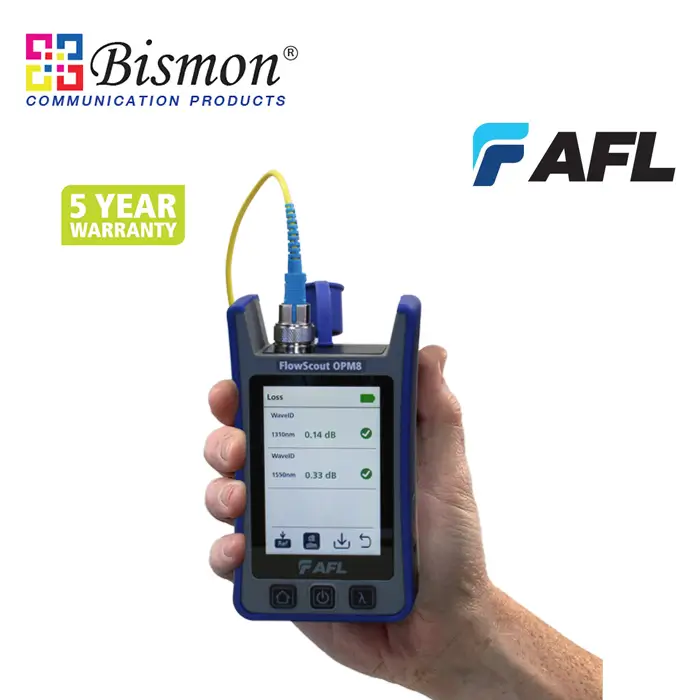

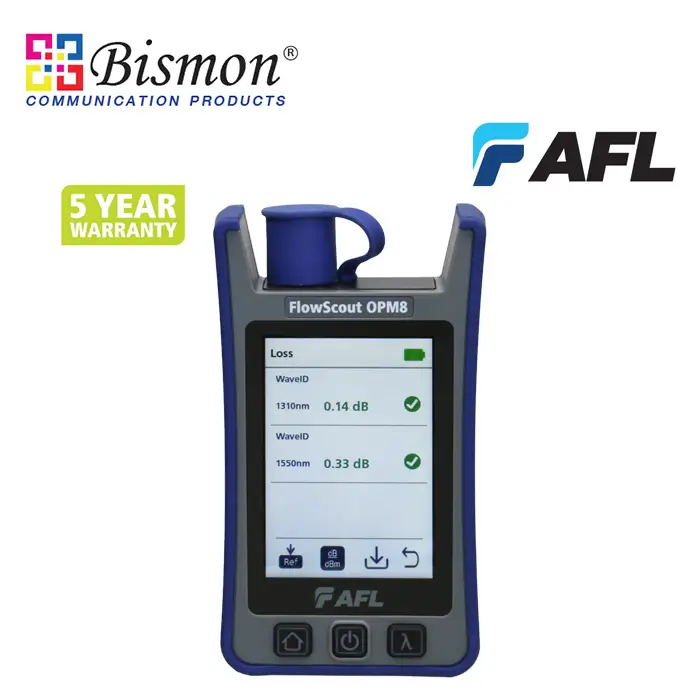

The FlowScout OPM8 optical power meter represents the next generation of smart optical power meters. Designed on the legacy of AFL/Noyes OPMs, the FlowScout OPM8 provides rapid loss testing with pass/fail results for use in enterprise LAN, data center, PON, and broadband networks.
The Competitive Edge
Intuitive operation: With a simple to use interface based on a color touchscreen, fiber technicians can quickly set-up, test, validate, and document installed fiber plant, as well as provide power measurements. The FlowScout OPM8 measures power levels and automatically evaluates them against user-set min/max limits. The large color touchscreen displays detected power levels with color-coded pass/fail indications.
Wave ID for reduced test time and errors: When used with a Wave ID light source, such as the FlowScout OLS8, the power meter automatically synchronizes to source wavelengths, reducing test time and eliminating wavelength setting errors. The broadband power meter also automatically detects and reports the presence of 270 Hz, 330 Hz, 1 kHz, and 2 kHz fiber-identifying tones.
Full reporting capabilities: Measured power levels, pass/fail limits and status can be stored in internal memory for download via USB. Test results may be uploaded for subsequent analysis, editing, and reports generation with FlexReports PC software.
Versatile and efficient: Rugged, ergonomic, and backed by an industry-best 5-year warranty, the hand-held FlowScout OPM8 is the most versatile power meter for fiber testing. A range of replaceable output adapters enables access for inspection and cleaning of optical ports and supports multiple connector styles. Equipped with rechargeable batteries and an AC charger, FlowScout OPM8 can operate while charging from AC.
Features:
- Large color touchscreen with icon-driven user interface
- Rapid pass/fail analysis based on user-set limits
- Proprietary Wave ID functionality for accuracy and reduced test time
- Rugged design backed by industry-best 5-year warranty
- Internal test results storage
- Reports generation using AFL’s FlexReporter™ Test Results Manager
Applications:
- Enterprise LAN and Data Center fiber networks
- FTTH PON networks
- High power broadband and DWDM systems testing
- Multimode and single-mode fiber networks


Specifications
|
Optical
|
|
Model
|
OPM8-H
|
OPM8-L
|
|
Calibrated Wavelengths
|
850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1610, 1625, 1650 nm
|
|
Detector Type
|
Filtered InGaAs
|
InGaAs
|
|
Measurement Range
|
+26 to -50 dBm
|
+10 to -70 dBm
|
|
Tone Detect Range
|
+6 to -25 dBm for 850 nm
|
+10 to -45 dBm for 850 nm
|
|
Wavelength ID Range
|
+6 to -30 dBm
|
+10 to -50 dBm
|
|
Measurement Accuracy
|
± 0.25 dB
|
± 0.25 dB
|
|
Display Resolution
|
0.01 dB/dBm
|
0.01 dB/dBm
|
|
Measurement Units
|
dB, dBm
|
dB, dBm
|
|
Tone Detection
|
Automatically detects 270 Hz, 330 Hz, 1 kHz, 2 kHz
|
Automatically detects 270 Hz, 330 Hz, 1 kHz, 2 kHz
|
|
Wave ID
|
Automatically detects and measures power & loss at one or more wavelengths using any AFL Wave ID source
|
|
Stored References
|
Stores separate reference for each calibration wavelength. Displays stored references
|
|
Results Storage
|
Stores > 1000 results in AFL .ATD (XML) format
|
|
General
|
|
Connector Adapters
|
SC, FC, ST, LC 2.5 mm Universal, 1.25 mm Universal
|
|
Power
|
120/240 VAC input; 5VDC @ 2A output to USB-C
|
|
Battery
|
User replaceable Li-Pol IEC 62133-2:2017 and UN38.3 certified
|
|
Battery Operating Time (typical)
|
16 hours continuous use
|
|
Battery Recharge Time
|
3 hours
|
|
Operating Temperature
|
-10 °C to +50 °C, 95% RH (non-condensing)
|
|
Storage Temperature
|
-30 °C to +60 °C, 95% RH (non-condensing)
|
|
IP Rating
|
IP54
|
|
Shock & Vibration
|
Withstands 1 m drop test on all 6 sides
|
|
Data Interfaces
|
USB-C and Bluetooth 5.1 (BLE and Bluetooth Classic)
|
|
Data Storage
|
Non-volatile memory for field-updatable software and results storage
|
|
Display
|
3.5 in. color backlit LCD capacitive touchscreen; 320 x 480 pixels
|
|
Size (H x W x D)
|
14.0 x 8.0 x 3.3 cm (5.5 x 3.1 x 1.3 in)
|
|
Weight
|
≈300 g (≈0.66 lb)
|
|
Calibration
|
N.I.S.T. traceable; 3 years between required re-calibration
|
|
Warranty
|
5 years
|
