Specification

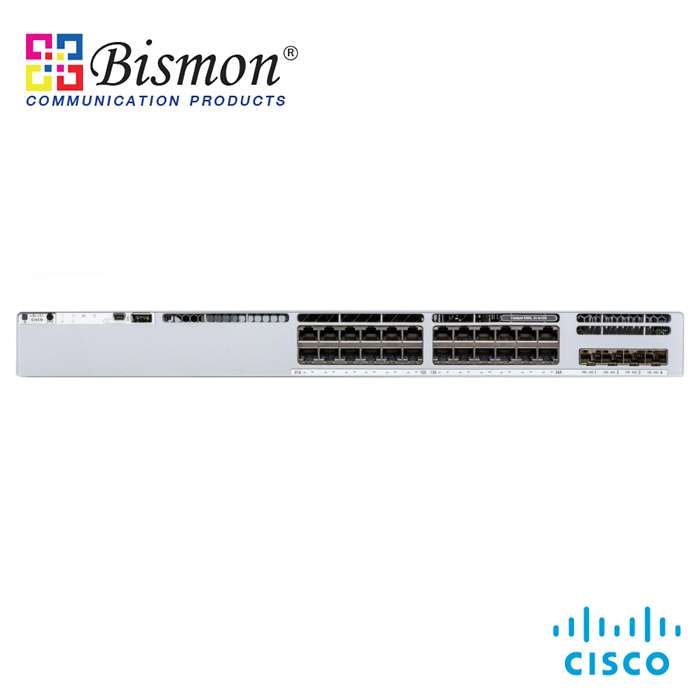

Device Type Switch - 24 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)

Switching capacity: 56 Gbps

Stacking bandwidth: 320 Gbps

Switching capacity with stacking: 376 Gbps

Forwarding rate: 41.66 Mpps

Forwarding rate with stacking: 279.76 Mpps

IPv4 routes: 32000

IPv6 routes: 16000

Multicast scale: 8000

QoS scale entries: 5120

ACL scale entries: 5120

VLANs supported: 4094

FNF entries: 64000

Switched virtual interfaces (SVIs): 1000

Packet buffer size: 16 MB

Virtual networks: 64

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG

Features Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6

Power AC 120/230 V (50 - 60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 44.5 cm x 4.4 cm x 40.9 cm

Weight 6.78 kg
