Overview

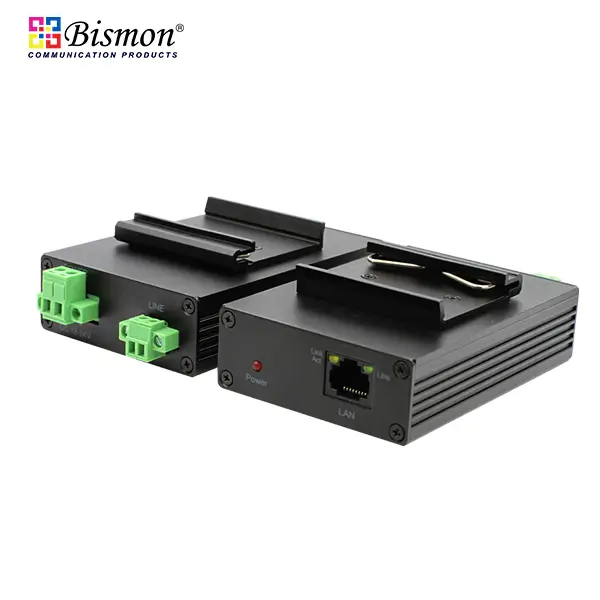

The B1-PLC-TL24 is a 35mm DIN-rail mounted Ethernet over 2-wire extender designed for industrial and professional environments where space efficiency, quick installation, and stable network performance are key. It transmits standard Ethernet signals over existing 2-core copper wiring—including twisted pairs, telephone lines, or power cables—up to 600 meters, helping you avoid costly rewiring and reducing downtime. Ideal for control cabinets, server rooms, and industrial enclosures, it offers robust performance in a compact form factor.

Key Features

1.Extend Ethernet up to 600 meters over 2-wire, twisted pair, or telephone lines

2.DIN-rail mounting for quick, modular installation in control cabinets or industrial racks

3.Supports point-to-point and point-to-multipoint configurations

4.Plug-and-play setup with transparent transmission—no configuration required

5.OFDM carrier modulation for reliable, interference-resistant communication

6.12–24 VDC power input; low power consumption for simplified integration

Applications

1.Industrial Automation — Extend Ethernet networks across factory floors, warehouses, or processing facilities with stable, high-speed performance.

2.Remote Video Intercom — Deploy high-quality video and audio systems over existing wiring in multi-story or large properties.

3.Security & Monitoring Systems — Connect IP cameras, sensors, and access control points across large campuses or building complexes.

4.Branch Network Expansion — Link remote offices, kiosks, or service points without installing new network cables.

Parameter

Point to Point

Point to Multi-point: Two Endpoint (Star)

Point to Multi-point: Three Endpoint (Star)

Point to Multi-point: Four Endpoint (Star)
