Overview

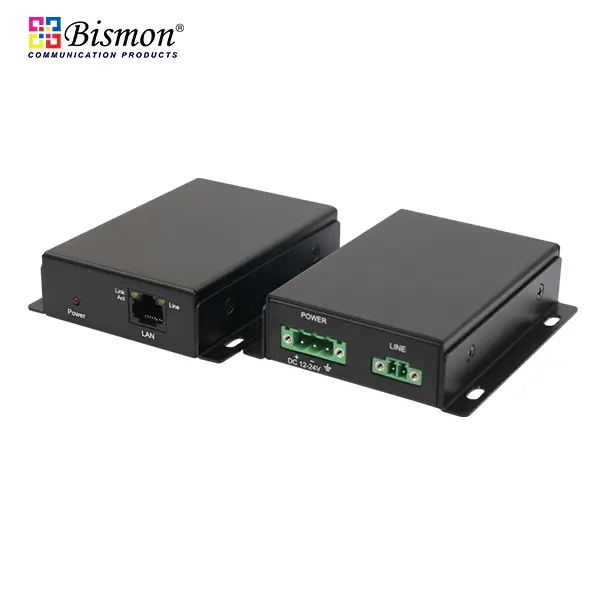

The B1-PLC602-T is an advanced Ethernet over 2-wire extender built for ultra-long-distance networking, delivering stable Ethernet connectivity up to 1000 meters. Designed with superior anti-interference technology and industrial-grade durability, it ensures consistent performance even in electrically noisy or demanding environments. Ideal for large-scale infrastructures, security networks, and industrial facilities, this top-tier device helps minimize rewiring costs while simplifying deployment.
Key Features
1.Transmit Ethernet up to 1000 meters over 2-wire, twisted pair, or telephone lines
2.Enhanced anti-interference design for reliable operation in noisy environments
3.Supports point-to-point and point-to-multipoint network configurations
4.True plug-and-play installation—no configuration required
5.Advanced OFDM modulation ensures signal integrity over long distances
6.12–24 VDC power input; low energy consumption for cost efficiency
Applications
1.Extensive Security Networks — Deploy IP cameras and access control systems across large or multi-building sites with minimal cabling changes.
2.Industrial & Manufacturing Facilities — Connect remote sensors, control panels, and production-line machines reliably over long runs.
3.Transportation & Infrastructure — Provide stable links for toll booths, train stations, and track-side equipment.
4.Enterprise & Branch Networking — Extend connectivity between distant server rooms or branch offices beyond the standard 100-meter Ethernet limit.



Point to Point (Diagram)

Point to Multi-point: Two Endpoint (Star)(Diagram)
.jpg)
Point to Multi-point: Three Endpoint (Star)
.jpg)
Point to Multi-point: Three Endpoint (Daisy Chain)
.jpg)
Parameter
|
Category
|
Description
|
|
Power
|
Available Voltage Range
|
12-24VDC
|
|
Power Consumption
|
≤3W/PC
|
|
Transmission/Rate
|
Standard Compliance
|
IEEE1901, IEEE802.3
|
|
Up Down Agreement
|
CSMA/CA
|
|
Bandwidth
|
Full duplex 100Mbps
|
|
Physical Characteristic
|

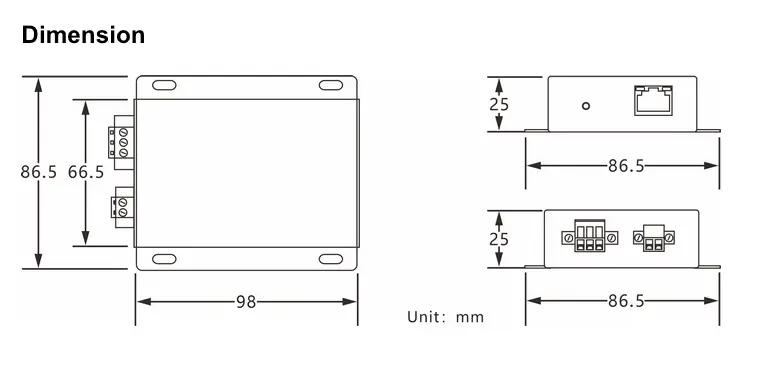

Dimensions (L×W×H)
|
98×86.5×25mm
|
|
Material
|
Aluminum Alloy
|
|
Net Weight
|
145g/PC
|
|
Operating Environment
|
Working Temperature
|
-20 C – 60 C
|
|
Working Humidity
|
< 95% (Non-condensation)
|
