Overview

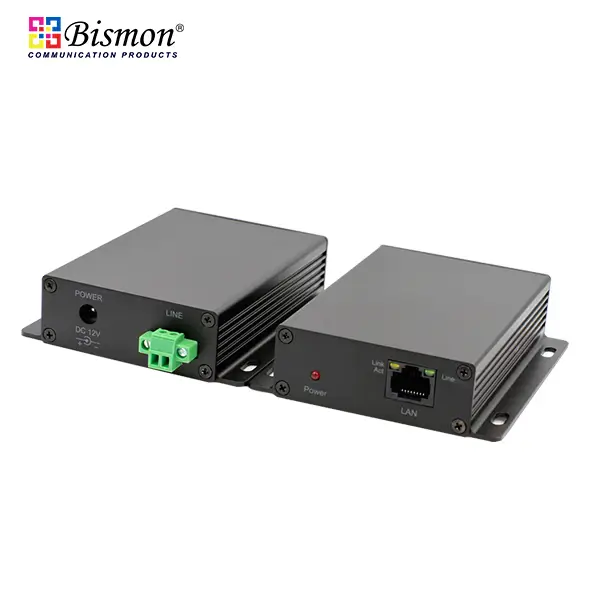

The B1-PLC302-N is a high-performance Ethernet over 2-wire extender that delivers stable, high-speed Ethernet transmission over existing 2-core copper wiring—such as twisted pairs, telephone lines, or power cables—without the expense of new cabling. Built with a durable metal housing, it provides superior shielding, better heat dissipation, and enhanced stability compared to entry-level models, making it ideal for commercial, security, and light industrial environments where reliability is critical.

Key Features

1.Transmit Ethernet up to 600 meters over 2-wire, twisted pair, or telephone lines

2.Rugged metal housing for durability, EMI protection, and heat management

3.Works in point-to-point and point-to-multipoint network layouts

4.Quick plug-in setup with no configuration required

5.OFDM carrier modulation ensures steady data flow in noisy conditions

6.12–24 VDC power input with Phoenix terminal and RJ45 connection

Applications

1.Security & Surveillance — Deploy IP cameras and access control systems in commercial complexes where stable long-distance links are essential.

2.Video Intercom Networks — Integrate reliable intercom communication over existing wiring in offices, apartment buildings, or public facilities.

3.Branch & Remote Site Networking — Connect ATMs, kiosks, or remote workstations to central networks without laying new cables.

4.Light Industrial Automation — Maintain dependable Ethernet connectivity for control panels, monitoring devices, and warehouse systems.

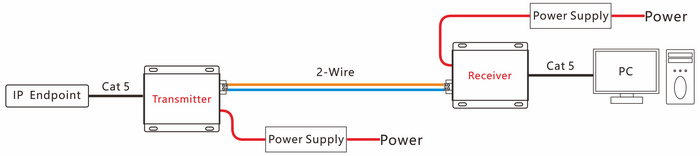

Point to Point (Diagram)

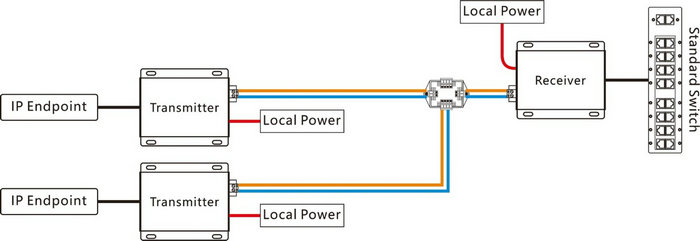

Point to Multi-point: Two Endpoint (Star)(Diagram)

Point to Multi-point: Three Endpoint (Star)

Point to Multi-point: Three Endpoint (Daisy Chain)

Parameter
