Overview

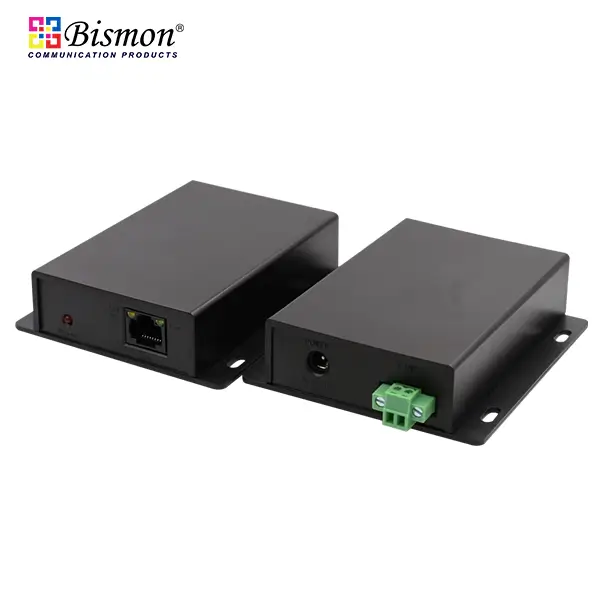

The B1-PLC101-N provides a cost-effective way to extend Ethernet connectivity across long distances using existing copper infrastructure. Whether you’re connecting devices in different rooms, extending a network between floors, or linking remote workstations, this 2-wire Ethernet extender eliminates the need for expensive rewiring.

With support for both point-to-point and point-to-multipoint topologies, it offers deployment flexibility for a range of applications. OFDM modulation technology ensures stable, interference-resistant communication, while compliance with IEEE1901 and IEEE802.3 standards guarantees compatibility with most Ethernet devices.

Key Features

1.Extend Ethernet over 2-wire cables, twisted pairs, or phone lines up to 600 meters

2.Compact plastic housing designed for indoor environments

3.Supports point-to-point and point-to-multipoint configurations

4.Plug-and-play setup with zero configuration required

5.OFDM carrier modulation for strong anti-interference performance

6.12–24 VDC power input with low energy consumption

Applications

1.Small Office LAN Extension — Extend network access to meeting rooms or workstations without new cabling.Residential.

2.Networking — Bring Ethernet connectivity to any room using existing telephone or 2-wire lines.

3.Retail & Light Commercial — Cost-effective solution for connecting non-PoE IP cameras and VoIP systems.

4.Event & Exhibition Networking — Temporary network setups without permanent installation.

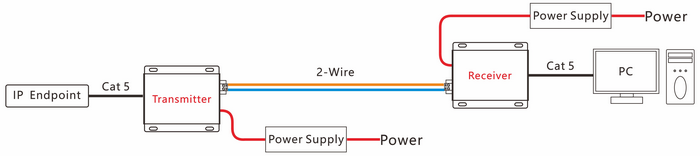

Diagram

Parameter
